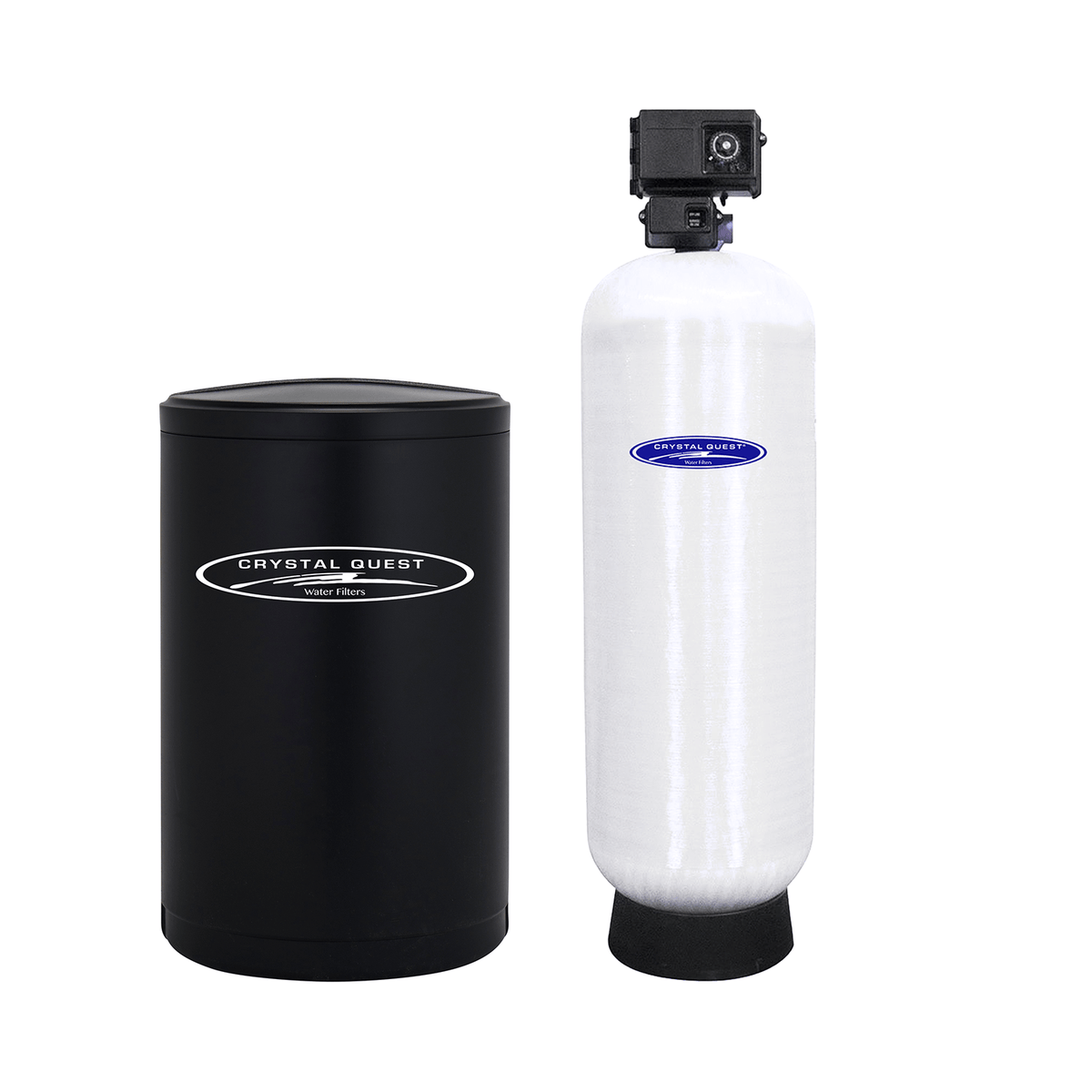

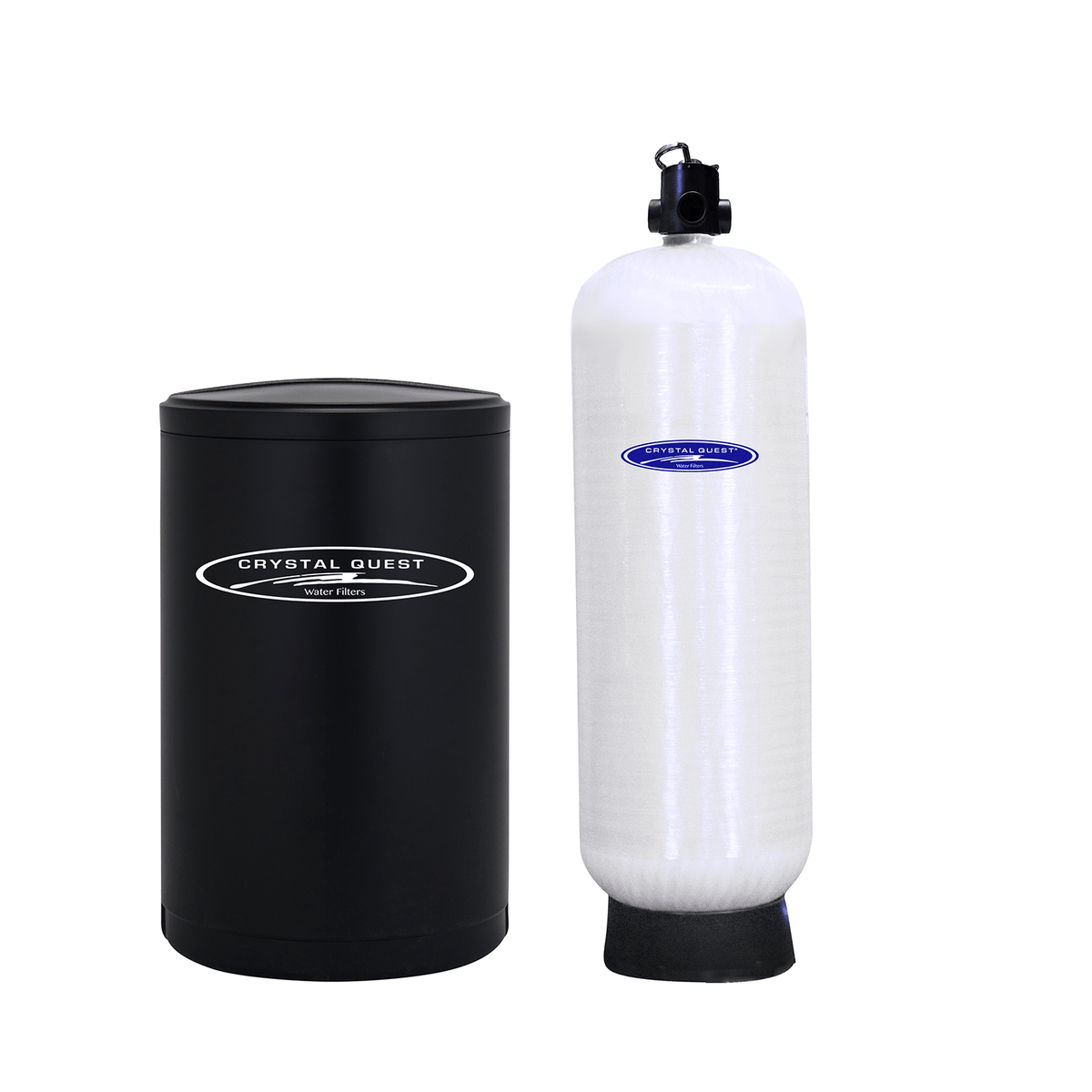

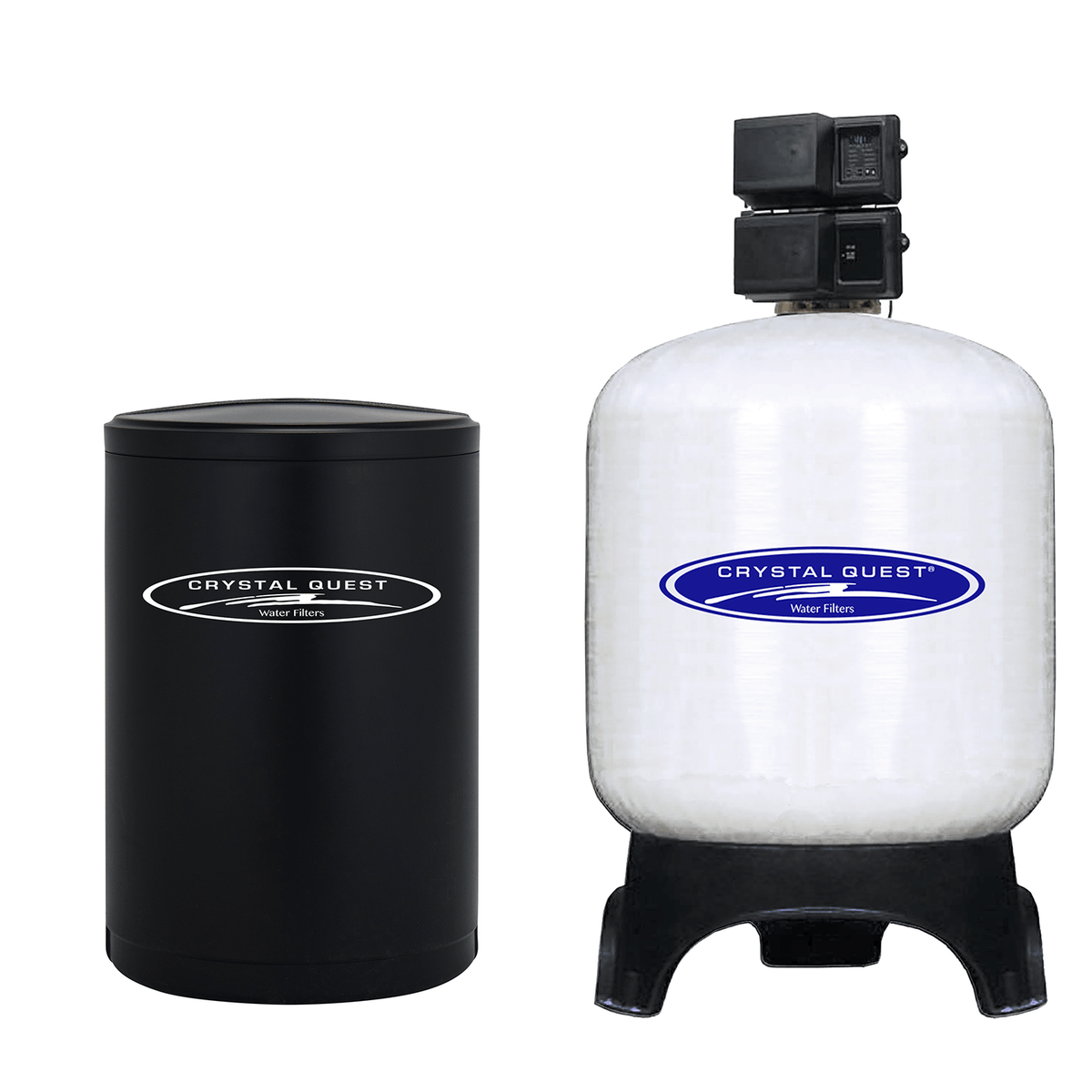

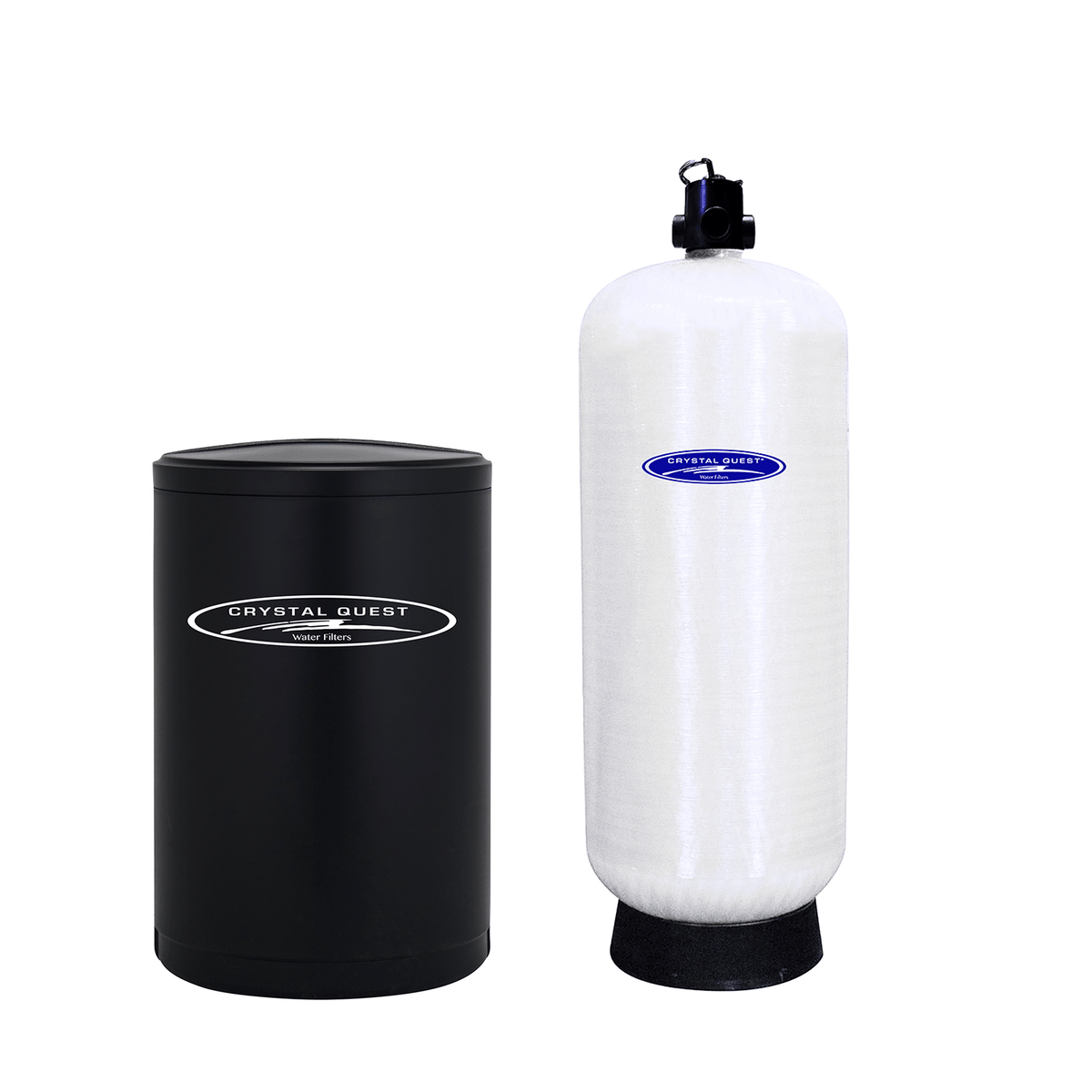

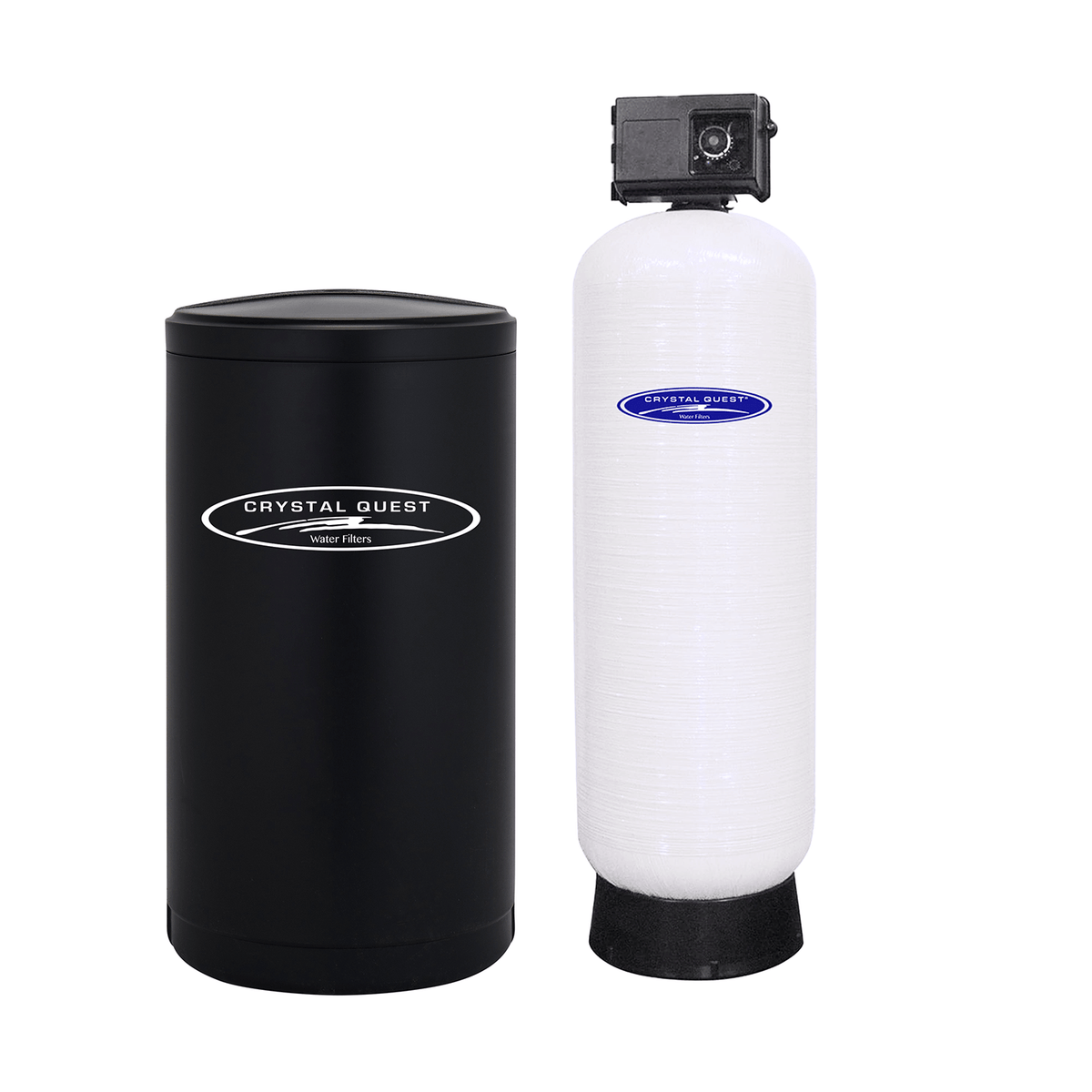

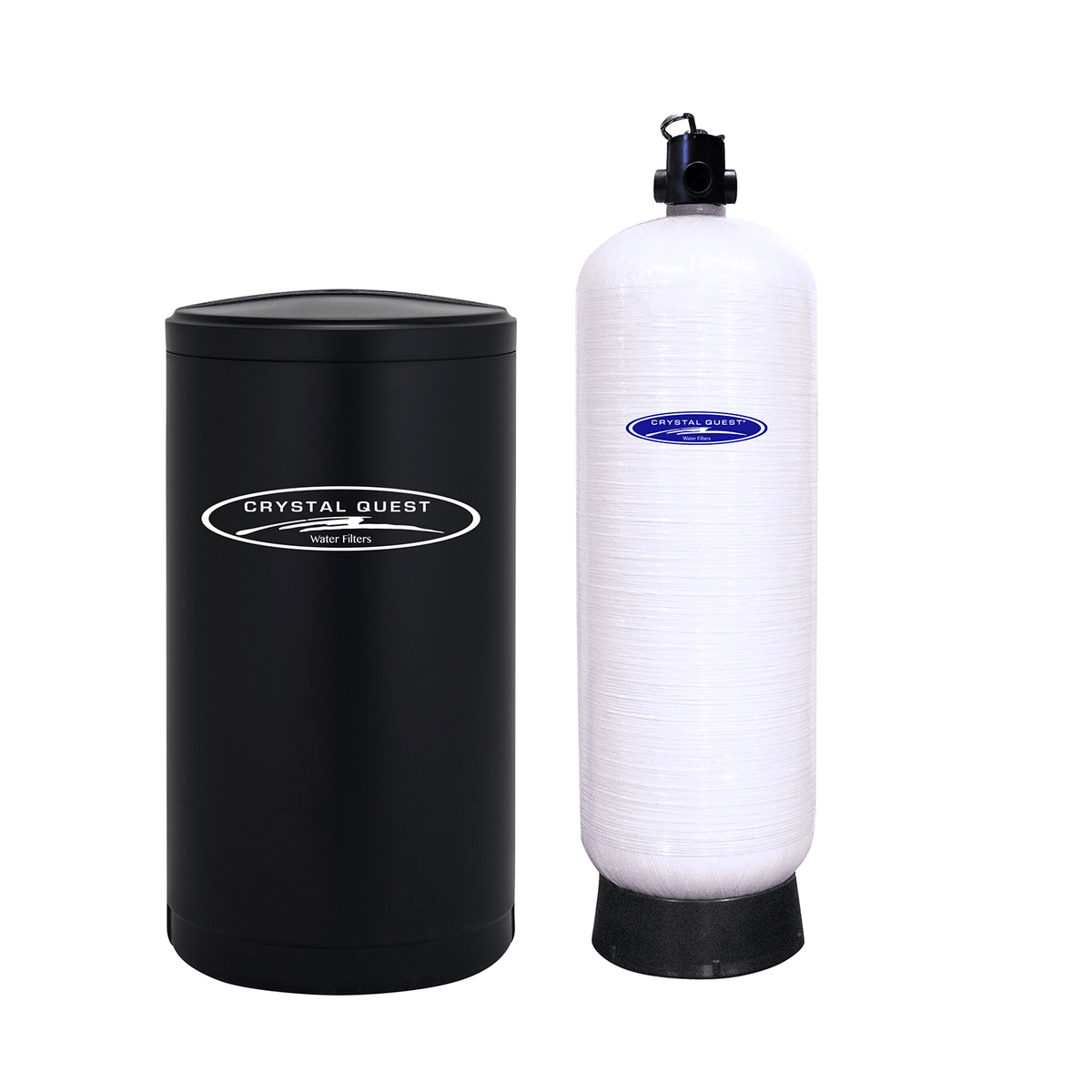

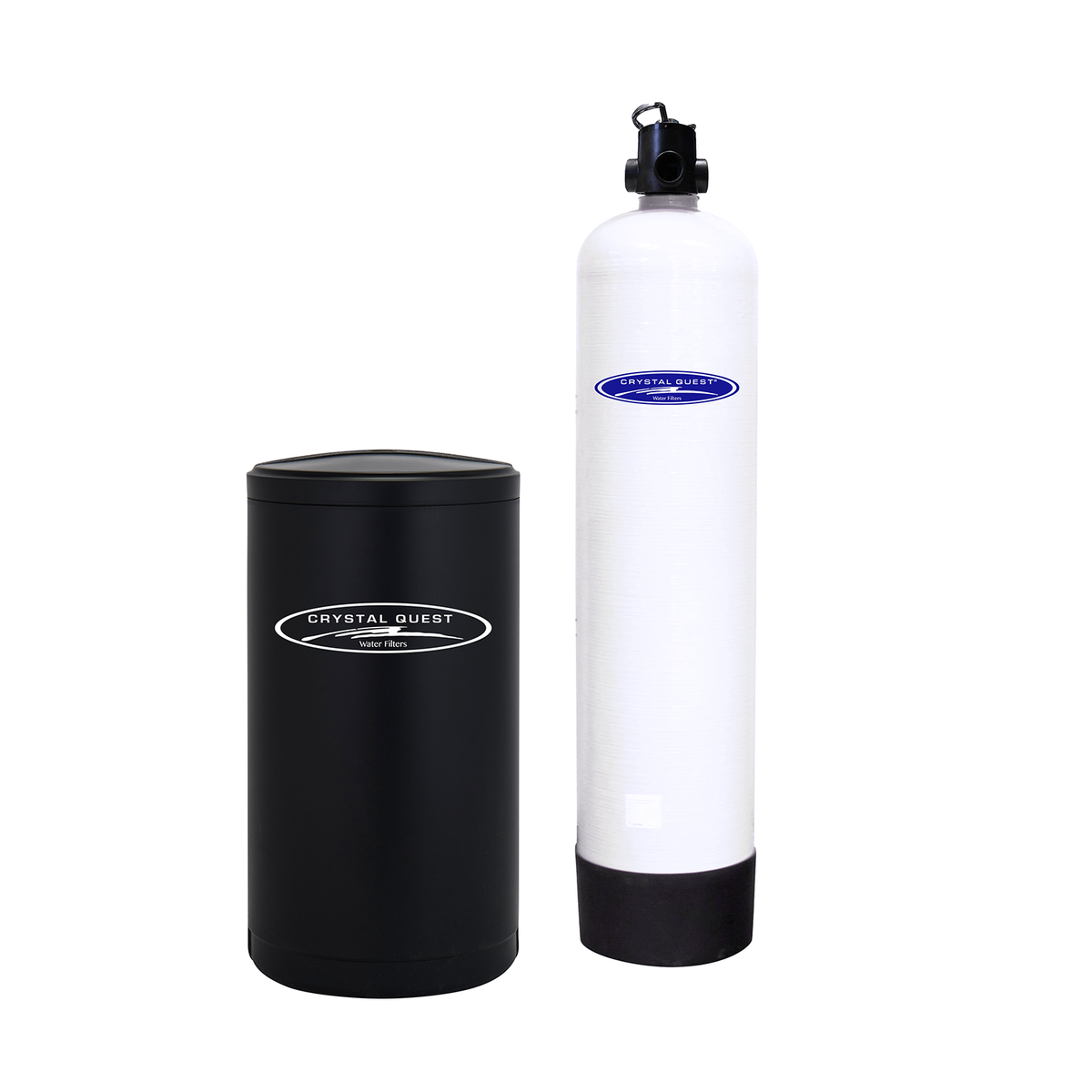

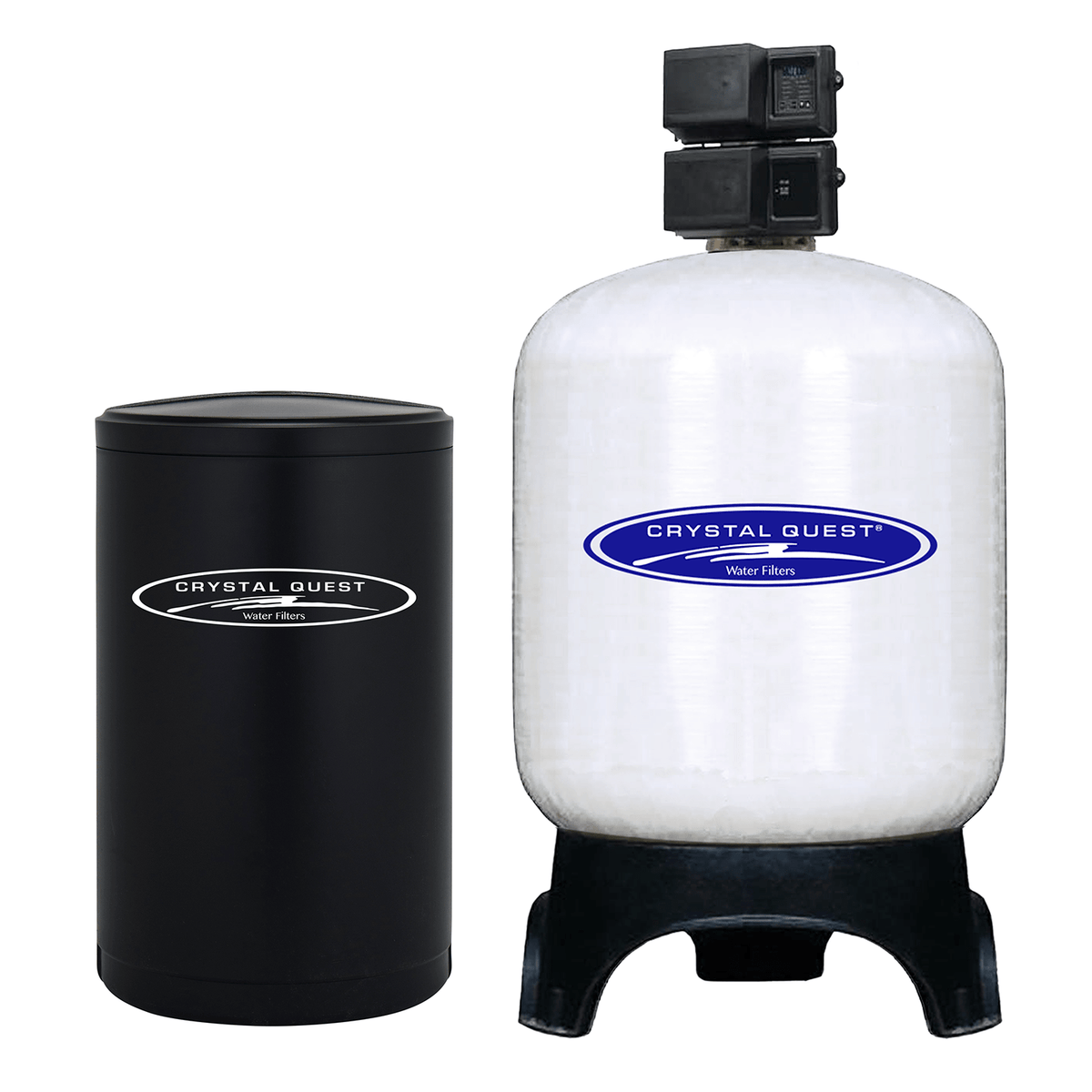

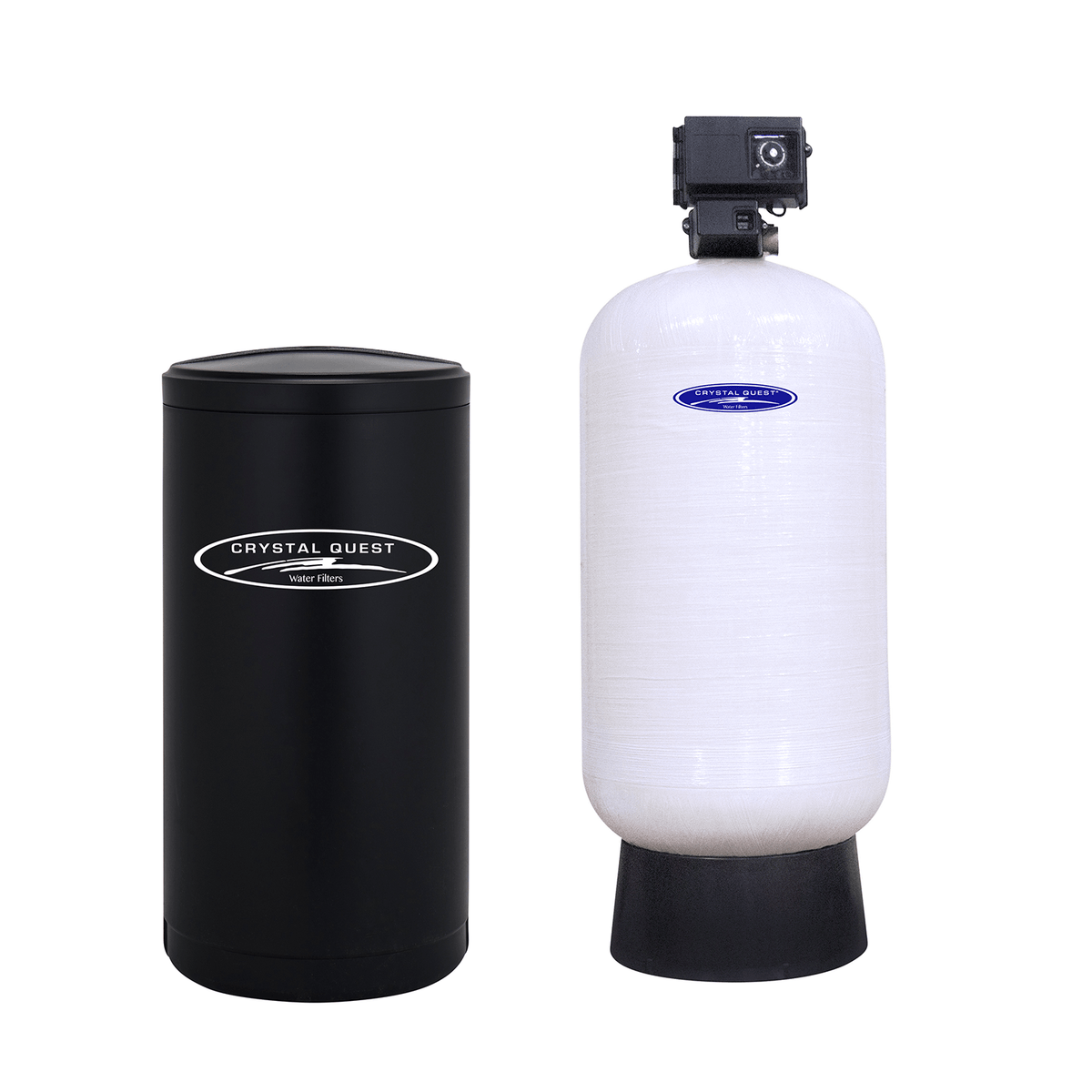

Name: Tannin Removal Water Filtration System
Brand: Crystal Quest
SKU: CQE-CO-02136
Price: 3219.99 USD
Availability: InStock

Overview

Features

Timer Control Valves
Heavy duty composite fiberglass tanks
Heavy duty Brine Tank
High Flow Distributor
All brass, motor driven control valve with fully adjustable regeneration cycles
Self-adjusting backwash controller
Flow controller to limit backwash flow
Engineered for commercial & industrial use

Benefits

Reduced water consumption
Reduced salt usage
Engineered for commercial & industrial use

Add-Ons*

Metered Control Valve
Backwash or regeneration bypass
3200NT Controller
No Hard Water Bypass
NXT Upgrade Controller
Duplex parallel, twin alternating, triplex (progressive)
Optional skid mounting for tanks

*If you are interested in our available Options, please call to have them added to your system.

Compatible Valves:

GPM:15

2510 Automatic Control Head

Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
3/5” control valve
Standard 1.9" distributor pilot
high service flow rate of 19 GPM
backwash capacity of 17 GPM
valves use all brass material
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

2510 Automatic Control Head

Features:

Electromechanical Timer valves
3/5” control valve
Standard 1.9" distributor pilot
high service flow rate of 19 GPM
backwash capacity of 17 GPM
valves use all brass material
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:20 - 35

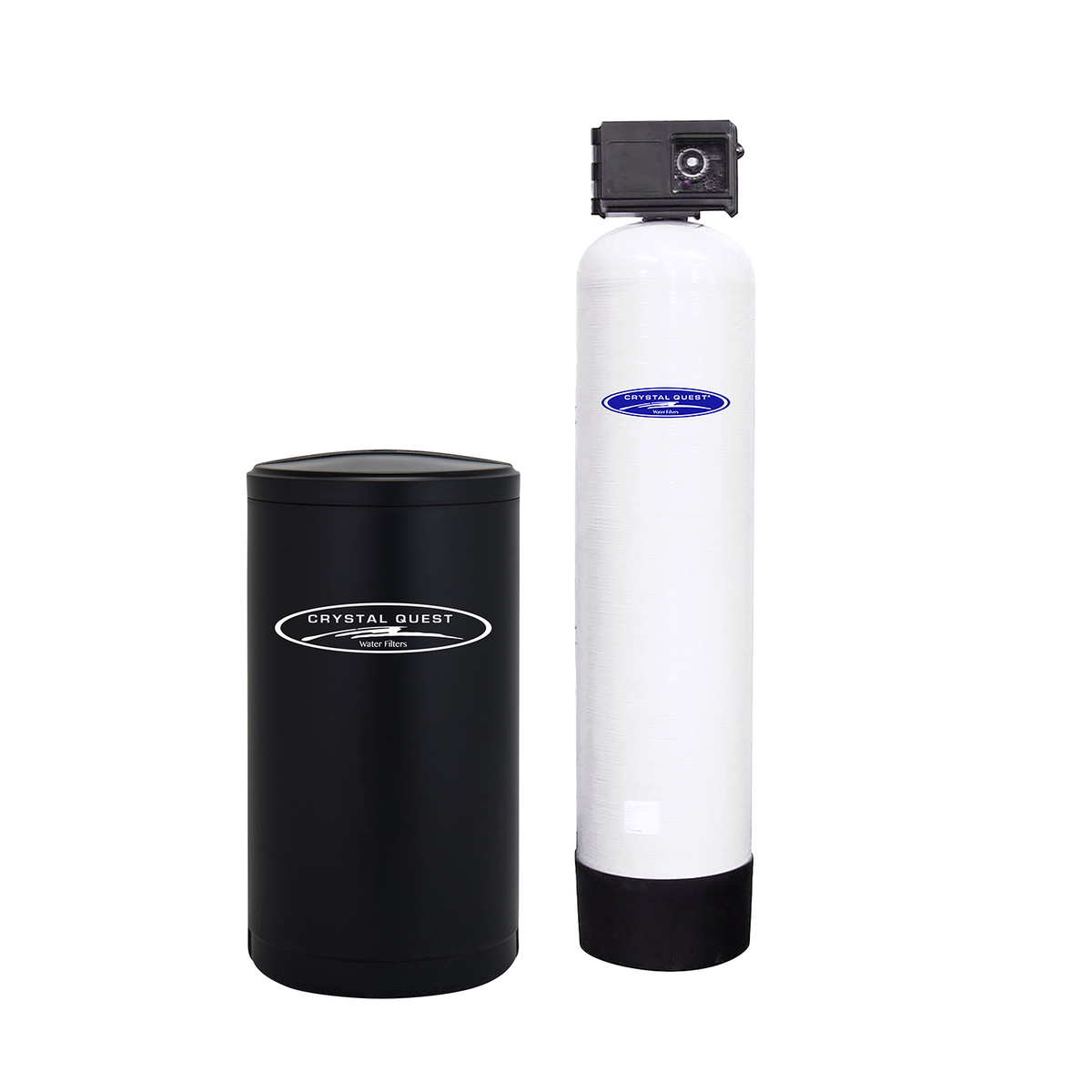

2850 Automatic Control Head

This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
1 1/2” control valve
Standard 1.9" distributor pilot
high service flow rate of 60 GPM
backwash capacity of 47 GPM
valves use all brass material
Fully adjustable 5-cycle control
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

2850 Automatic Control Head

This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
1 1/2” control valve
Standard 1.9" distributor pilot
high service flow rate of 60 GPM
backwash capacity of 47 GPM
valves use all brass material
Fully adjustable 5-cycle control
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

GPM:60 - 75

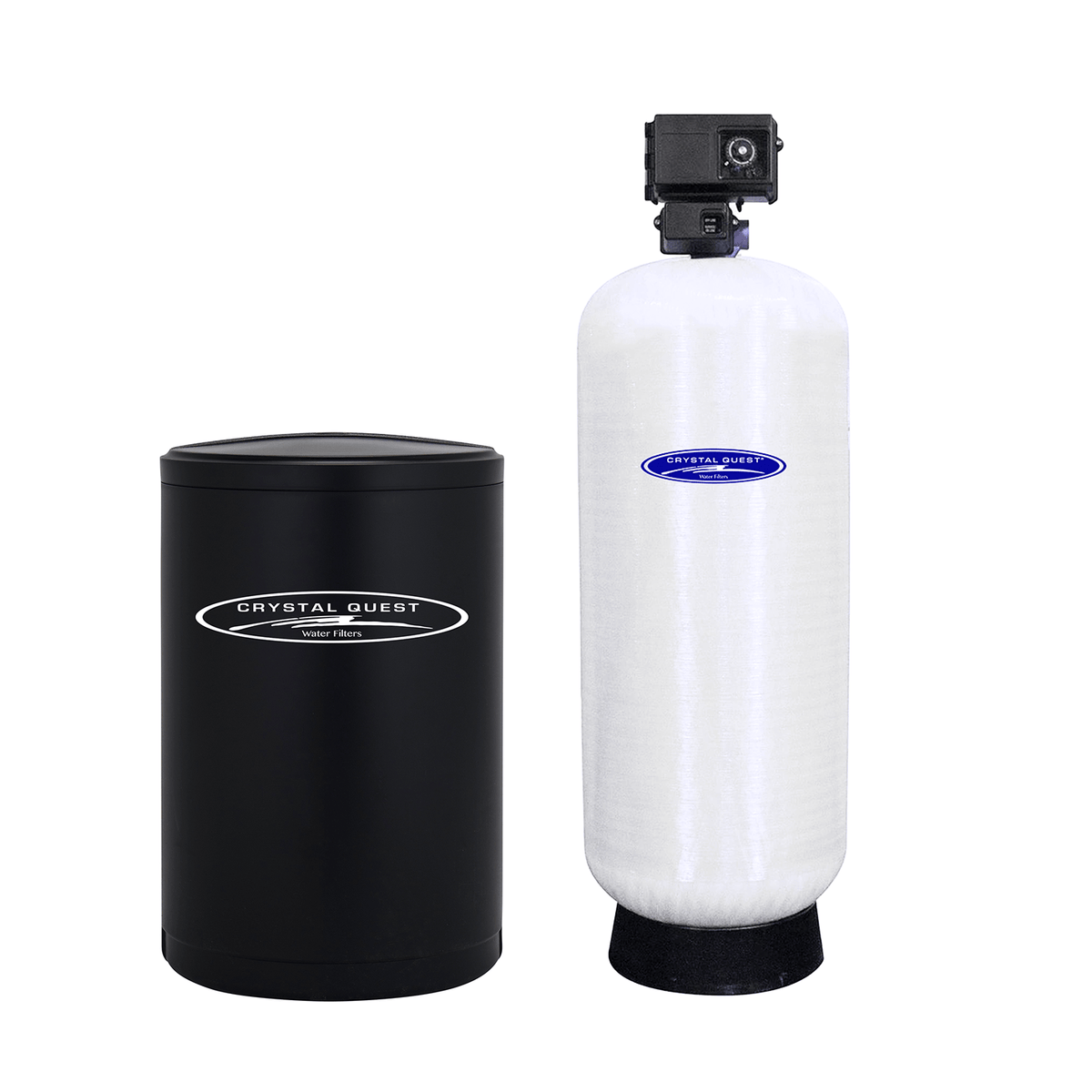

2900 Automatic Control Head

Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.

Features:

Electromechanical Timer valves
2” control valve
high service flow rate of 106 GPM
backwash capacity of 36 GPM
valves use all brass material
self adjusting backwash controller
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

2900 Automatic Control Head

Features:

Electromechanical Timer valves
2” control valve
high service flow rate of 106 GPM
backwash capacity of 36 GPM
valves use all brass material
self adjusting backwash controller
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

GPM:200 - 390

3900 Control Head

This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:15 - 75

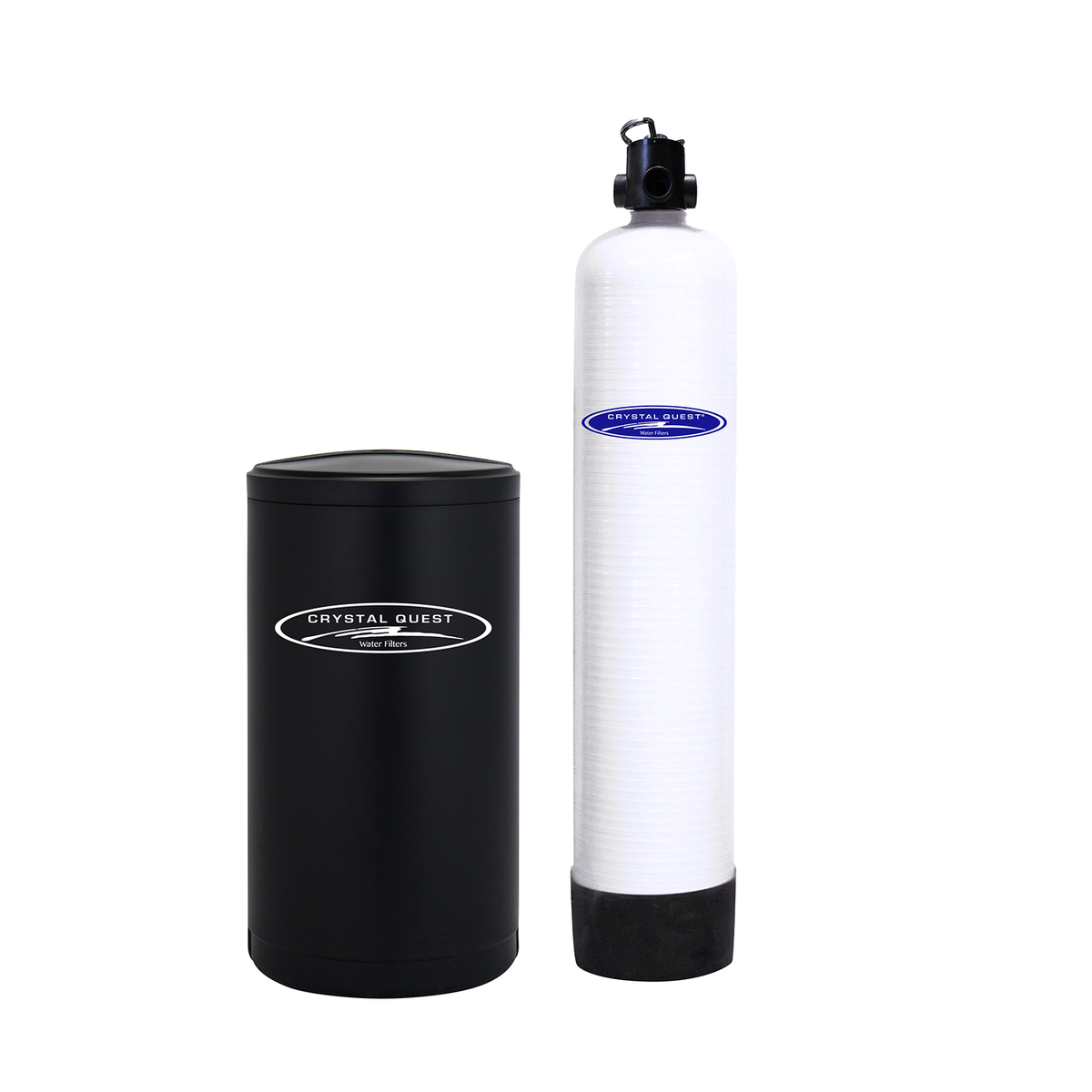

Manual Backwash Control

Features:

easy operation
Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain, 1.05" OD Riser, 2.5" 8-NPSM Connection
Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection

Manual Backwash Control

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:15 - 75

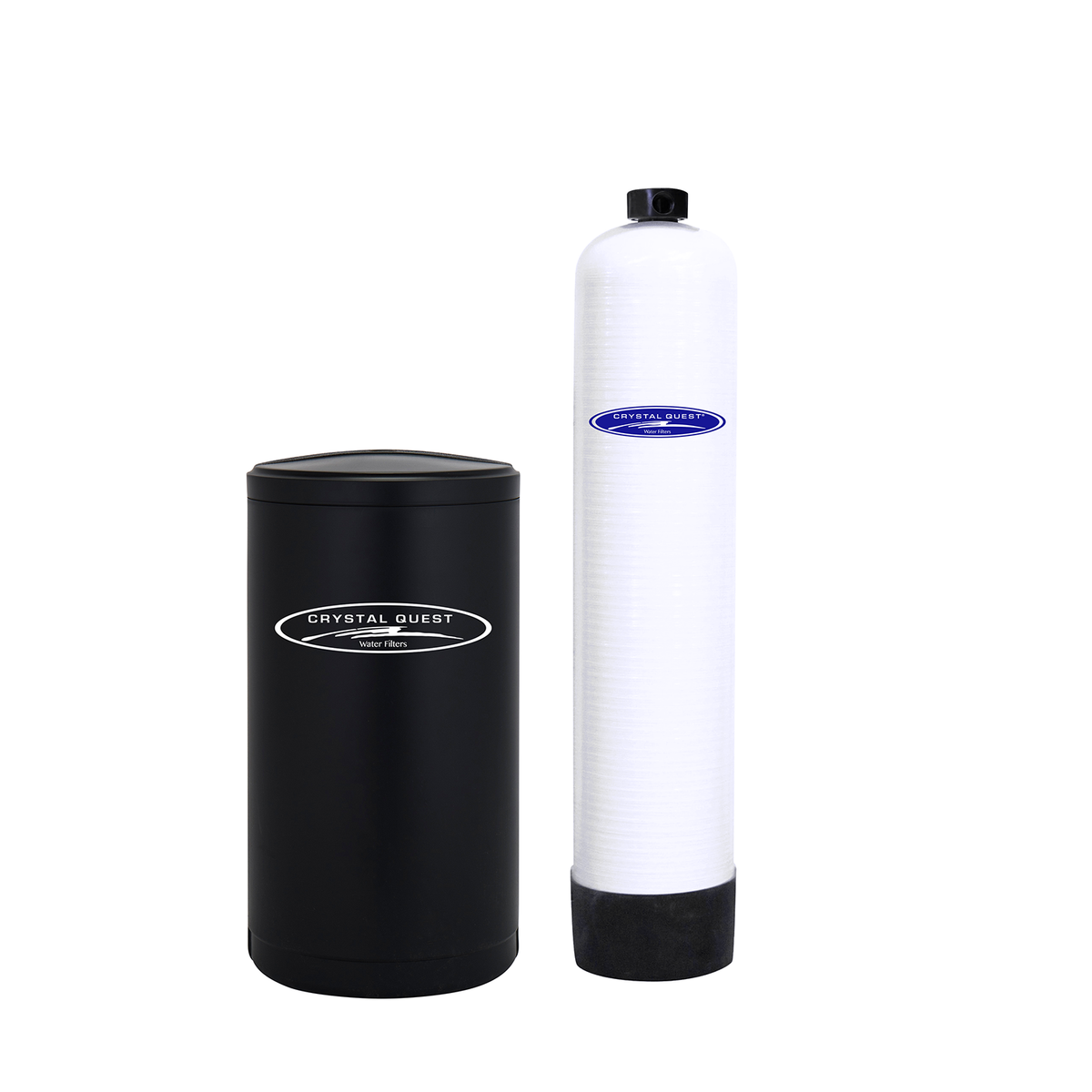

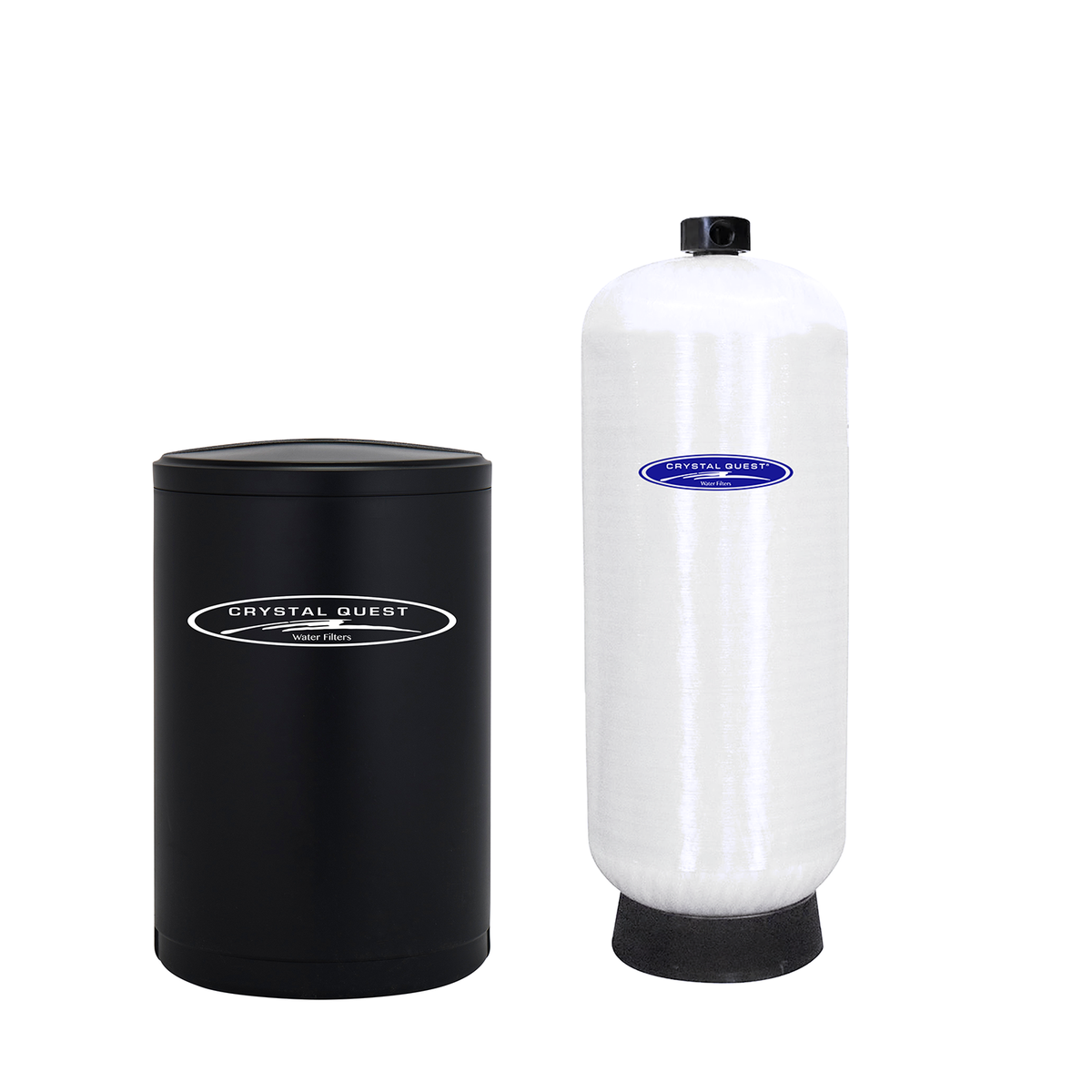

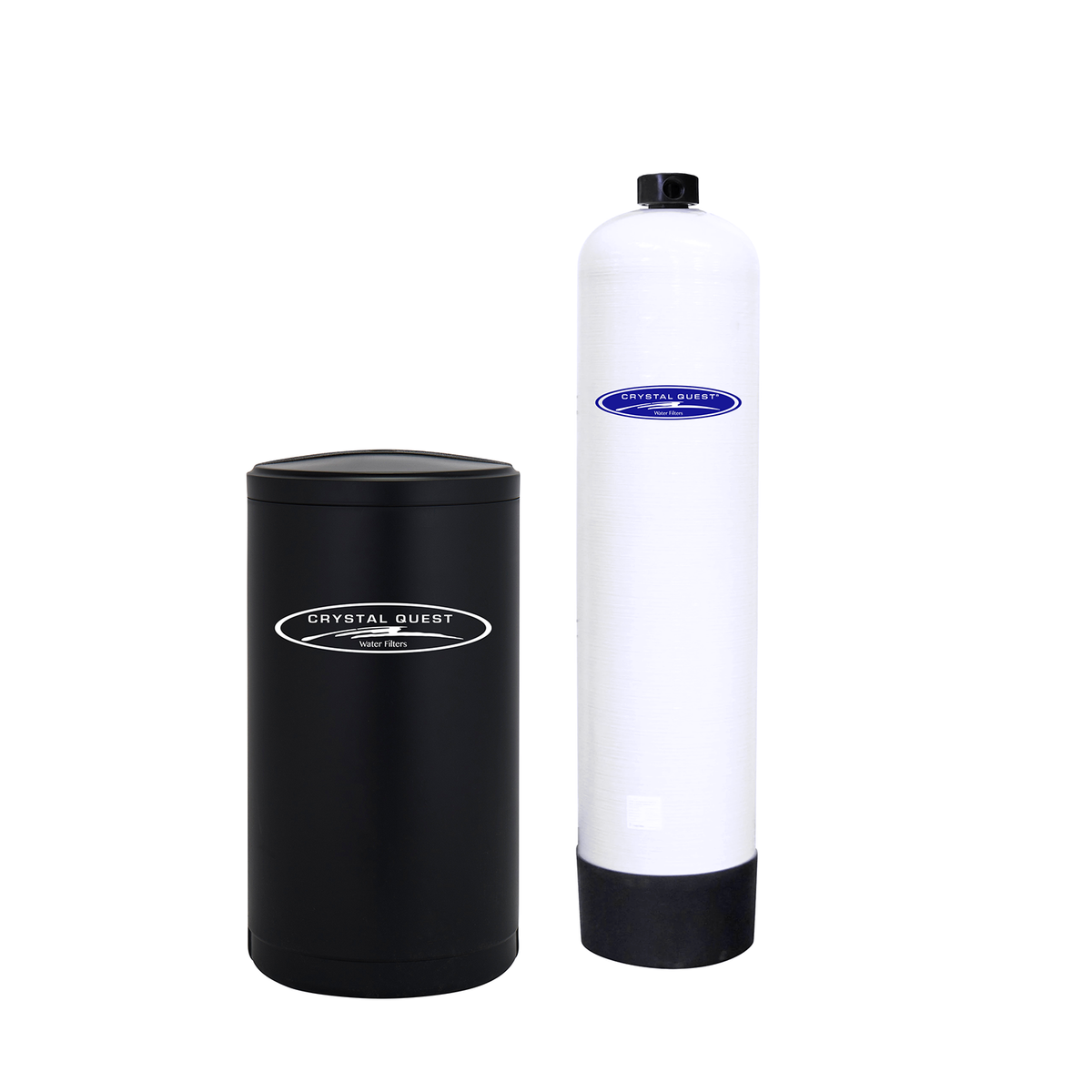

Manual Upflow Head

Features:

No electricity and no back wash
easy operation
can be either up or down flow simply by plumbing it backwards
Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

Specification	CQE-CO-02136	CQE-CO-02137	CQE-CO-02138	CQE-CO-02139	CQE-CO-02140	CQE-CO-02141	CQE-CO-02142	CQE-CO-02143	CQE-CO-02144
Service Flow Rate GPM	15	20	35	60	75	185	200	245	390
Peak Flow GPM	22	41	60	95	140	250	270	280	450
Backwash Flow GPM	5	7	12	15	25	35	50	65	75
Pipe Size	1"	1.5"	1.5"	2"	2"	2" / 3"	3"	3"	3"
Electronic Control Valve	2510	2850	2850	2900	2900	3150 / 3900	3900	3900	3900
Eaglesorb Tannin Removal	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³	60 ft³
PSI Range	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60
Media Tank Size (in.)	14" x 65"	16" x 65"	21" x 62"	24" x 72"	30" x 72"	36" x 72"	42" x 72"	48" x 72"	63" x 83"
Space Required (Media Tank Only)	16" x 75"	18" x 75"	23" x 84"	24" x 95"	32" x 95"	40" x 192"	46" x 192"	52" x 192"	67" x 203"
Brine Tank Dimensions	18" x 33"	24” x 41”	30” x 50”	39” x 48”	39” x 60”	51” x 51”	51” x 63”	51” x 63”	51” x 63”
Brine Tank Capacity	130L / 36G	304L / 80G	580L / 153G	884L / 233G	1106L / 292G	1696L / 448G	2000L / 528G	2000L / 528G	2000L / 528G
Space Required (Media + Brine Tank)	30" x 20" x 75"	42" x 26" x 75"	53" x 32” x 84"	65" x 41” x 95"	71" x 41” x 100"	91" x 53” x 192"	91" x 53” x 192"	103" x 53” x 192"	118" x 53” x 203"
Quartz (lbs.)	30	40	70	100	150	200	300	400	600

Consumables
Model No.	CQE-CO-02136	CQE-CO-02137	CQE-CO-02138	CQE-CO-02139	CQE-CO-02140	CQE-CO-02141	CQE-CO-02142	CQE-CO-02143
Eaglesorb Tannin Removal	3ft³	4ft³	7ft³	10ft³	15ft³	20ft³	30ft³	40ft³
Quartz (lbs.)	30	80	100	200	400	500	700	900

Filtration Media Information
Product Data Sheet	Safety Data Sheet
Tannin I	Tannin I Product Data Sheet	Tannin I Safety Data Sheet
Tannin II	Tannin II Product Data Sheet	Tannin II Safety Data Sheet
Tannin III	Tannin III Product Data Sheet	Tannin III Safety Data Sheet
ERA 6500 & 9500	ERA 6500 & 9500 Product Data Sheet	ERA 6500 & 9500 Safety Data Sheet
Ion Exchange	Ion Exchange Resin Product Data Sheet	Ion Exchange Resin Safety Data Sheet

Installation Instructions
SYS. INSTALLATION & OPERATION GUIDE
Model No.	CQE-CO-02136	CQE-CO-02137	CQE-CO-02138	CQE-CO-02139	CQE-CO-02140	CQE-CO-02141	CQE-CO-02142	CQE-CO-02143
Electronic Valve	2510 Control Head Manual	2850 Control Head Manual	2850 Control Head Manual	2900 Control Head Manual	2900 Control Head Manual	3900 Control Head Manual	3900 Control Head Manual	3900 Control Head Manual
Mechanical Upflow Valve	1"	1.5"	1.5"	1.5"	2"	N/A	N/A	N/A
Mechanical Down Flow/Backwashable Valve	1"	1.5"	1.5"	1.5"	2"	N/A	N/A	N/A
Schematics	Review	Review	Review	Review	Review	Review	Review	Review

Schematic Samples
Single Standard Configuration	Double Standard Configuration	Triple Standard Configuration

Tannin I Product Data Sheet

Tannin I Safety Data Sheet

Tannin II Product Data Sheet

Tannin II Safety Data Sheet

Tannin III Product Data Sheet

Tannin III Safety Data Sheet

2510 Control Head Manua l

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual
