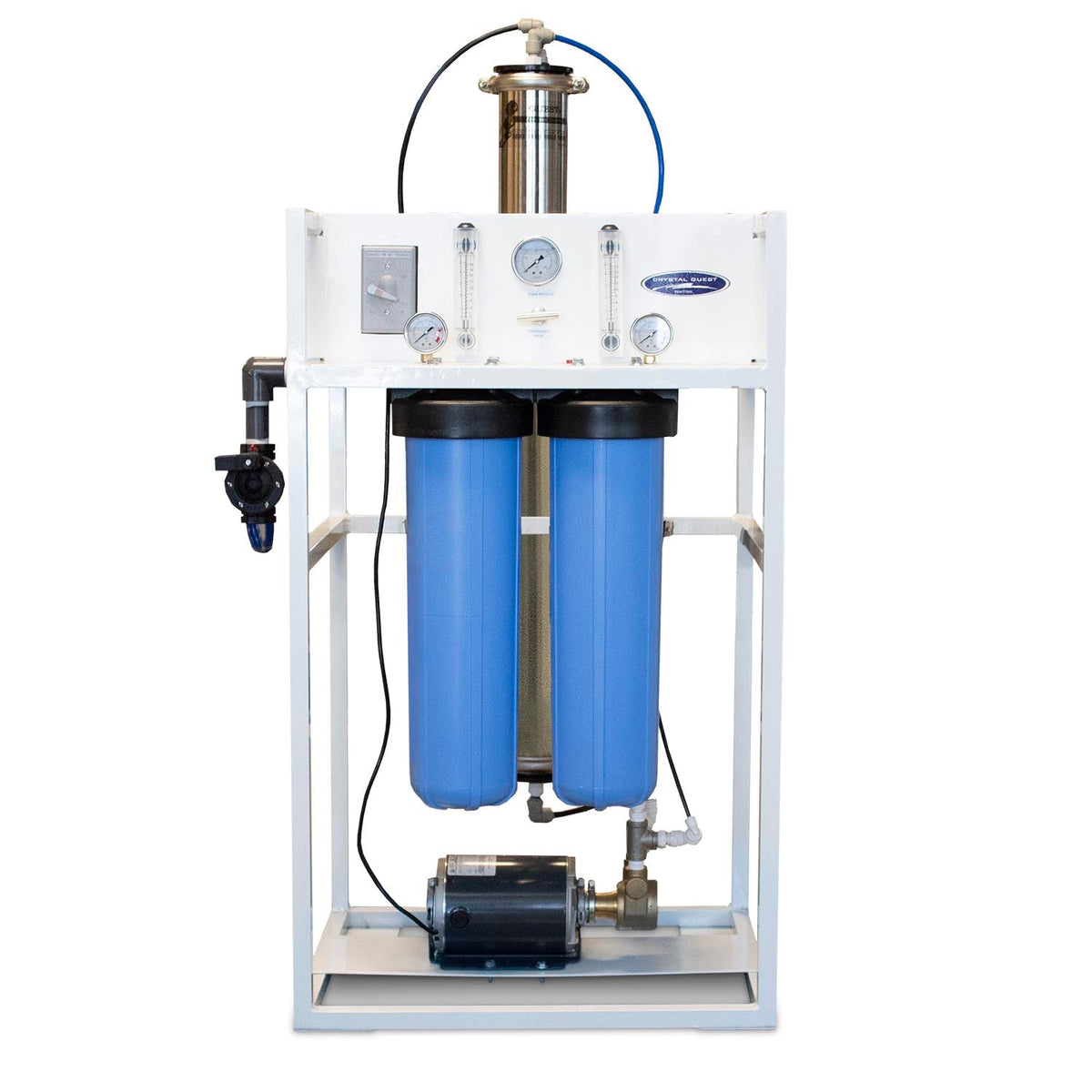

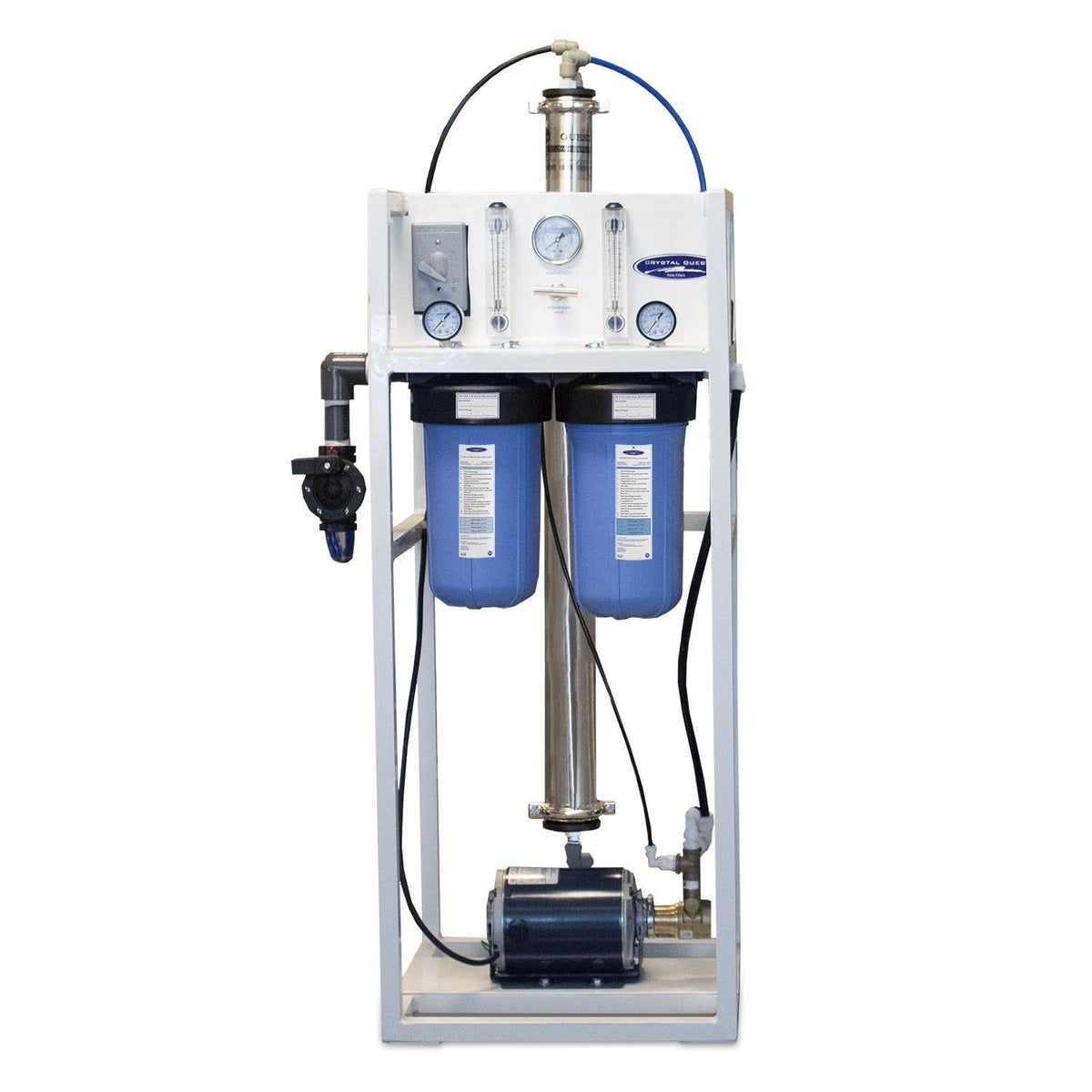

Name: Commercial Mid-Flow Reverse Osmosis System (500-7000 GPD)
Brand: Crystal Quest
SKU: CQE-CO-02024C
Price: 3884.0 USD
Availability: InStock

Overview

Standard Features:

Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
High-Efficiency Carbonate Motor
SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
SWP Flow meter: to display permeate and concentrated water flow
SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200.
Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”.
1” Feed solenoid valve. Automatically shuts off the feed water to the system.
Push/Pull fittings with locking safety clips

Benefits:

Compact Space Saving
Components Easily Accessible
Expandable and Lightweight Design
Fully Equipped and Customizable
Pre-plumbed, wired and assembled
Low Operation Costs
Low Maintenance Costs
Easily Maintenance and servicing
Factory Tested and Preserved
CE Compliant
1-Year Limited Warranty
Made in the USA

Upgrades:

All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
S150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display and alarm function.
Chemical Pump Outlet: Provide an integrated power source with the RO system for connection of a chemical feed pump.
Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
Single Wood Crate

Gallons Per Day (GPD) @ 77° F

	500	750	1000	1500	1800	2500	4000	5000	7000
Model	CQE-CO-02024	CQE-CO-020024	CQE-CO-02025	CQE-CO-02026	CQE-CO-020027	CQE-CO-02027	CQE-CO-02028	CQE-CO-02029	CQE-CO-02030
Dimensions	14" x 20" x 46"	14" x 20" x 46"	14" x 20" x 46"	14" x 20" x 46"	14" x 20" x 46"	14" x 20" x 46"	19" x 23" x 46"	30" x 38" x 47"	30" x 38" x 47"
Weight (lbs)	140	140	145	160	160	180	235	250	265
Concentrate Re-Circulate	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Auto Flush	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Membrane Size	2521 TFC HF1	2540 TFC HF1	2521 TFC HF1	2540 TFC HF1	4040 TFC HF1	2540 TFC HF1	4040 TFC HF1	4040 TFC HF1	4040 TFC HF1
# of Membranes	2	1	3	2	1	3	2	3	4
Motor HP	1/2	1/2	3/4	3/4	3/4	3/4	1.5	1.5	1.5
Voltage (volts AC)	110/220	110/220	110/220	110/220	110/220	110/220	110/220	110/220	110/220
Hertz (cycles)	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Feed Connection	1"	1"	1"	1"	1"	1"	1"	1"	3/4"
Product Connection	3/8”	3/8”	3/8”	3/8”	3/8”	3/8”	1"	1"	1"
Waste Connection	3/8”	3/8”	3/8”	3/8”	3/8”	3/8”	1"	1"	1"
Minimum Feed Pressure	45 psi	45 psi	45 psi	45 psi	45 psi	45 psi	45 psi	45 psi	45 psi
Minimum NaCl - % Rejection	96%	96%	96%	96%	96%	96%	96%	96%	96%
Minimum Feed (GPM)	1.5	1.5	1.5	1.5	1.5	4	6	7	10
Maximum Hardness (GPG)	5	5	5	5	5	5	15	15	15
Maximum TDS	2000 ppm	2000 ppm	2000 ppm	2000 ppm	2000 ppm	2000 ppm	2000 ppm	2000 ppm	2000 ppm
Operating Pressure	150 psi	150 psi	150 psi	150 psi	150 psi	150 psi	150 psi	150 psi	150 psi
Maximum NaCl - % Rejection	98.5%	98.5%	98.5%	98.5%	98.5%	98.5%	98.5%	98.5%	98.5%
Maximum Feed (GPM)	3	3	3	5	5	10	15	15	15
pH Range	3-11	3-11	3-11	3-11	3-11	3-11	3-11	3-11	3-11

Dimensions (L x W x H) - Commercial RO’s

GPD	Dimensions (L x W x H)
200 GPD	17” x 23” x 35”
300 GPD	17” x 23” x 35”
500 GPD	24” x 25” x 55”

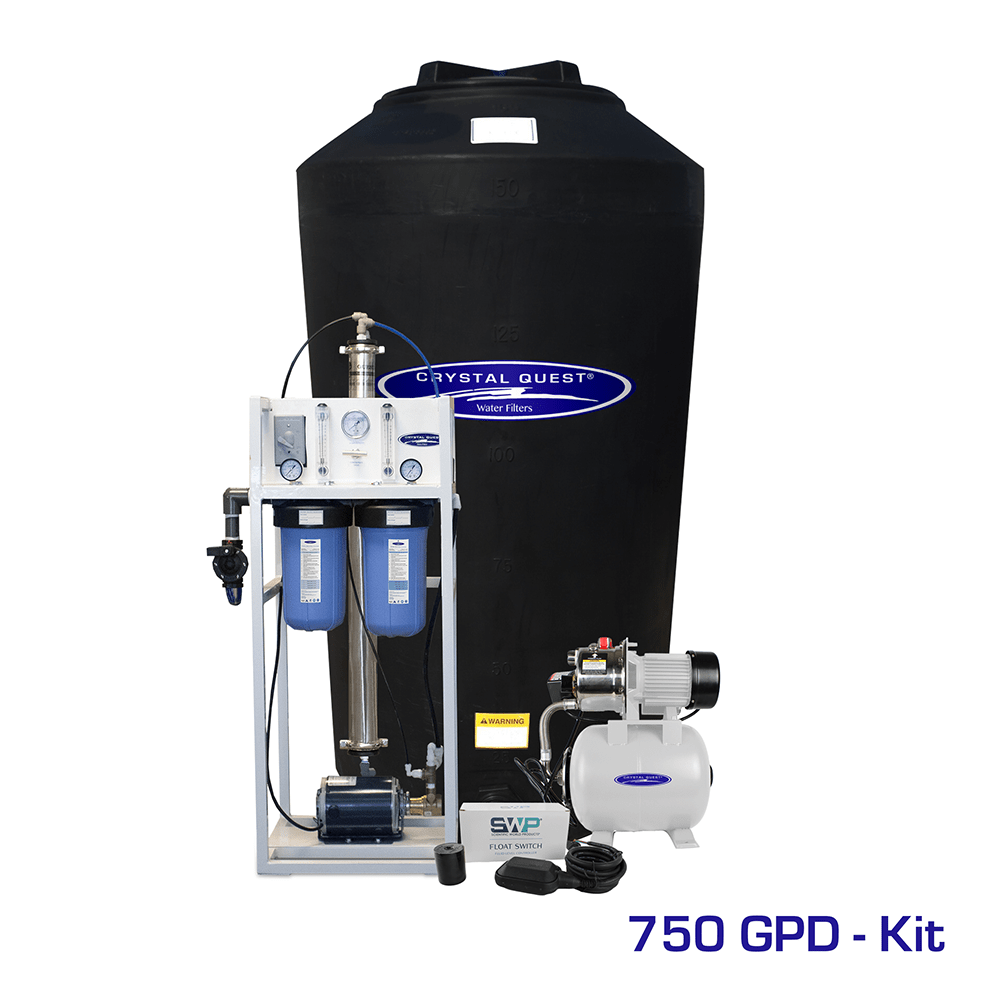

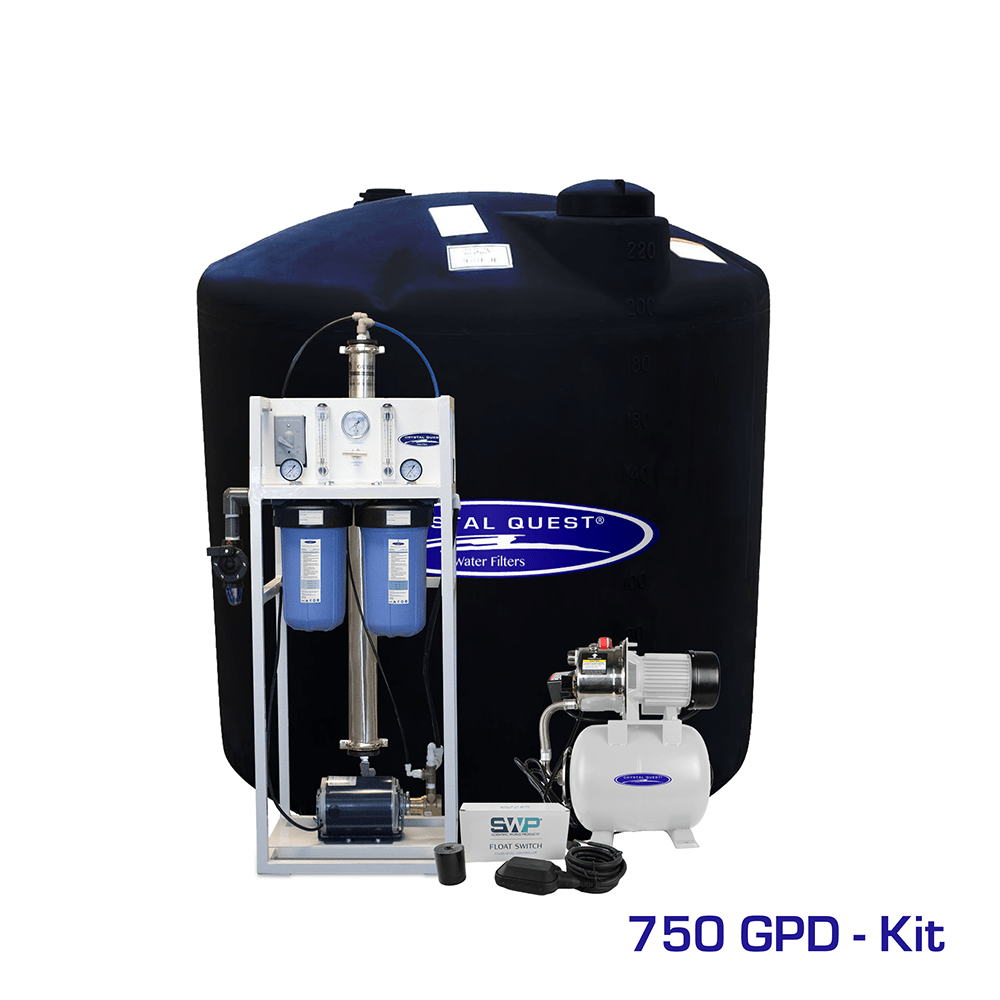

750 GPD	24” x 25” x 55”
1,000 GPD	24” x 25” x 55”

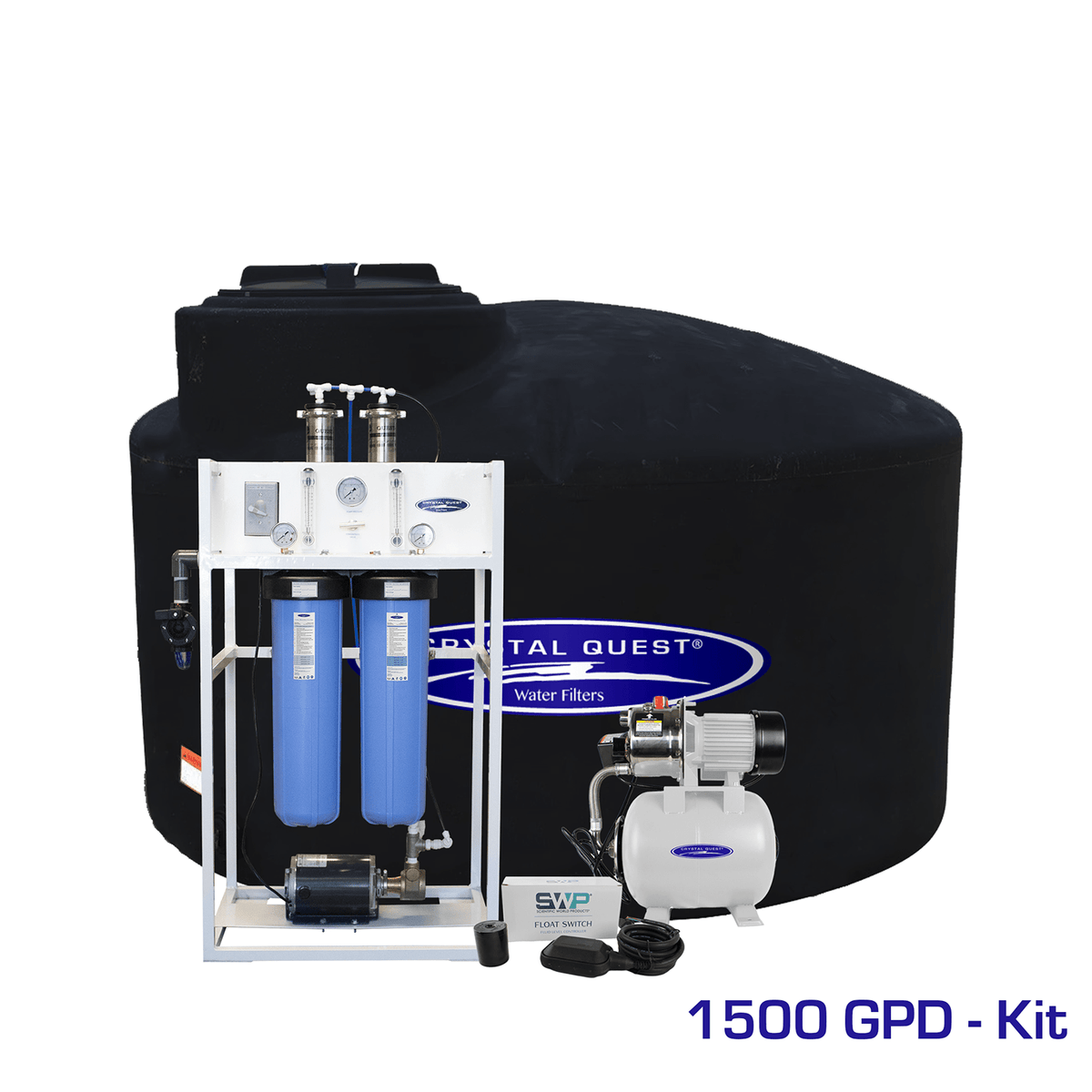

1,500 GPD	24” x 25” x 55”
1,800 GPD	24” x 25” x 55”
2,500 GPD	24” x 25” x 55”
4,000 GPD	31” x 38” x 56”

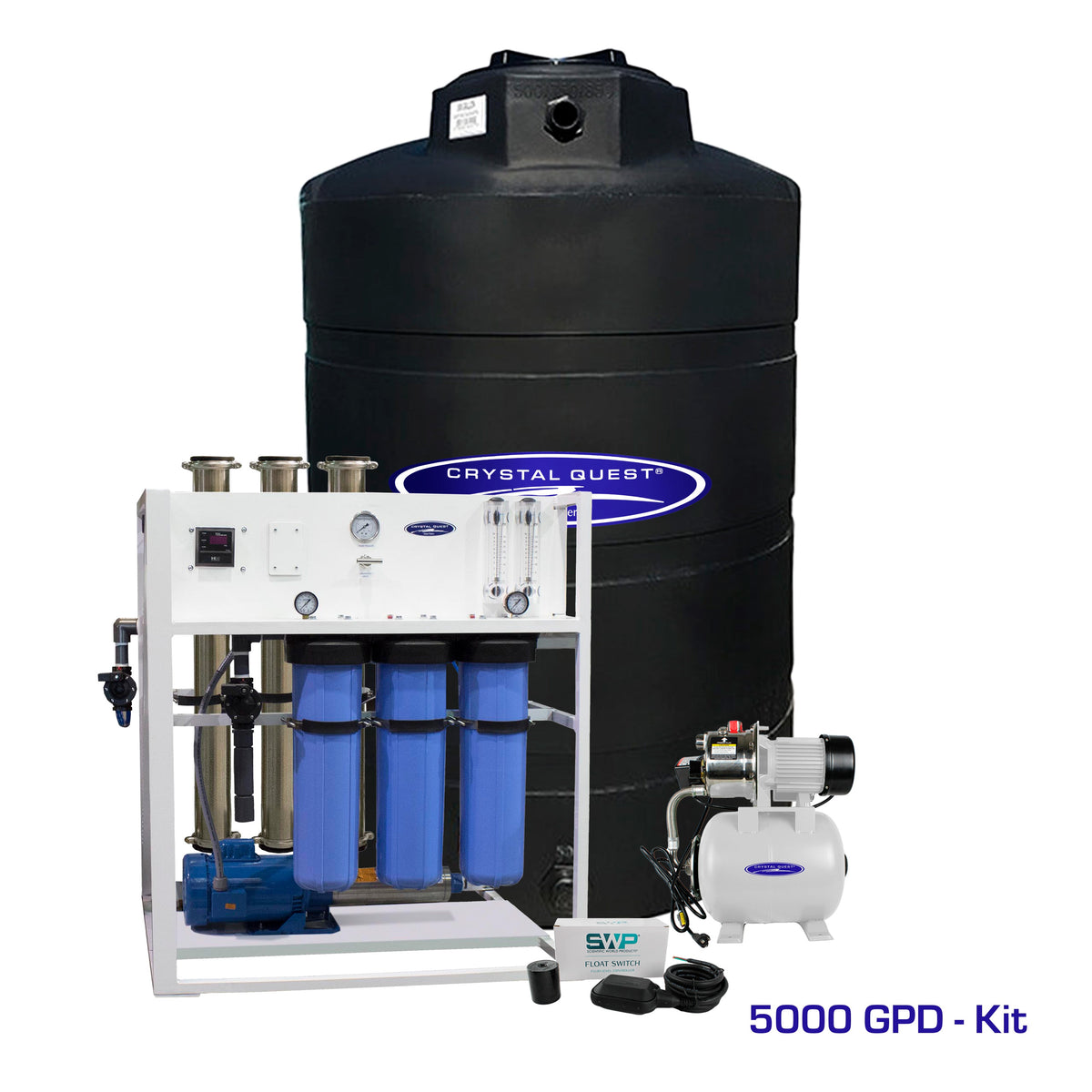

5,000 GPD	31” x 38” x 56”

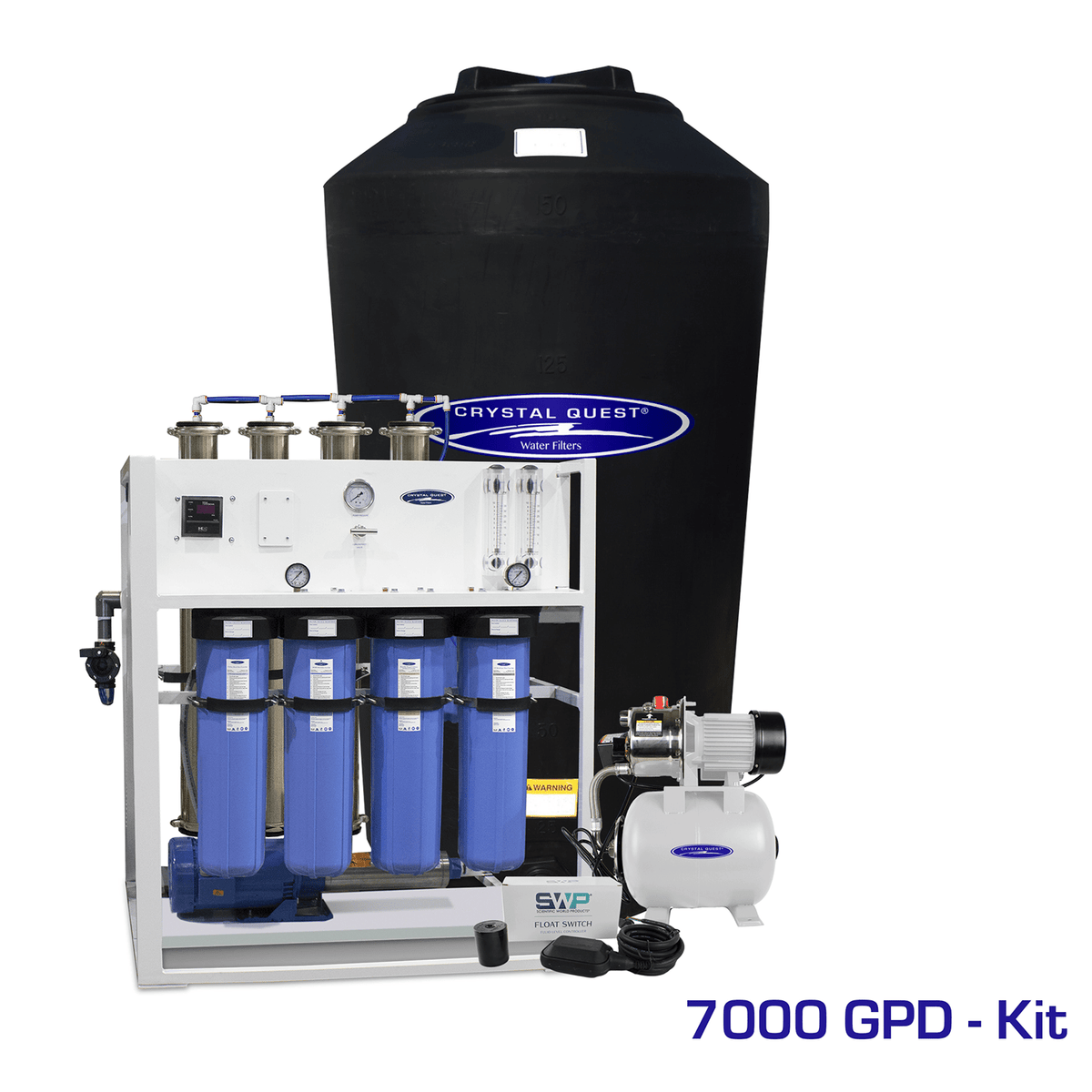

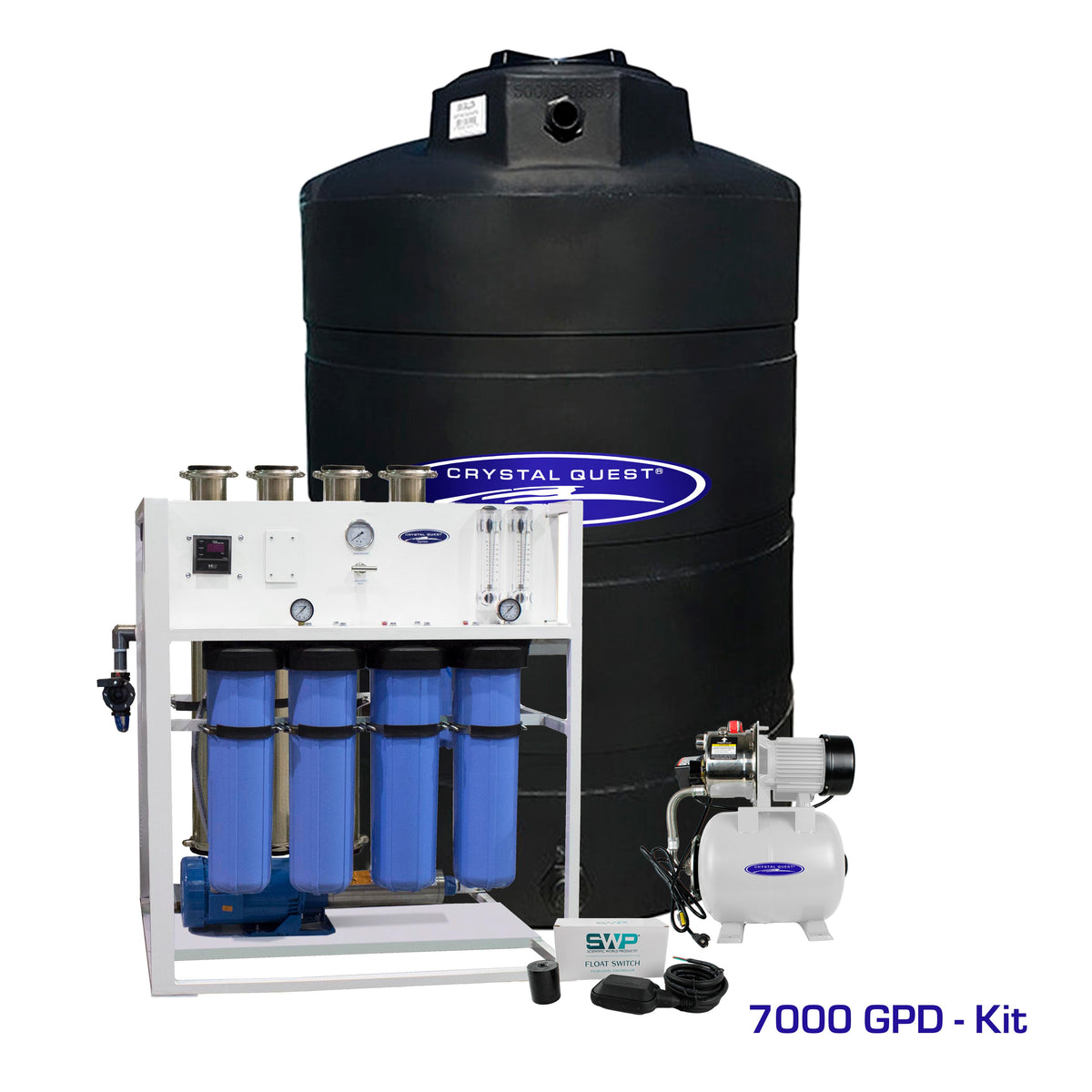

7,000 GPD	31” x 38” x 56”
10,000 GPD	31” x 58” x 64”

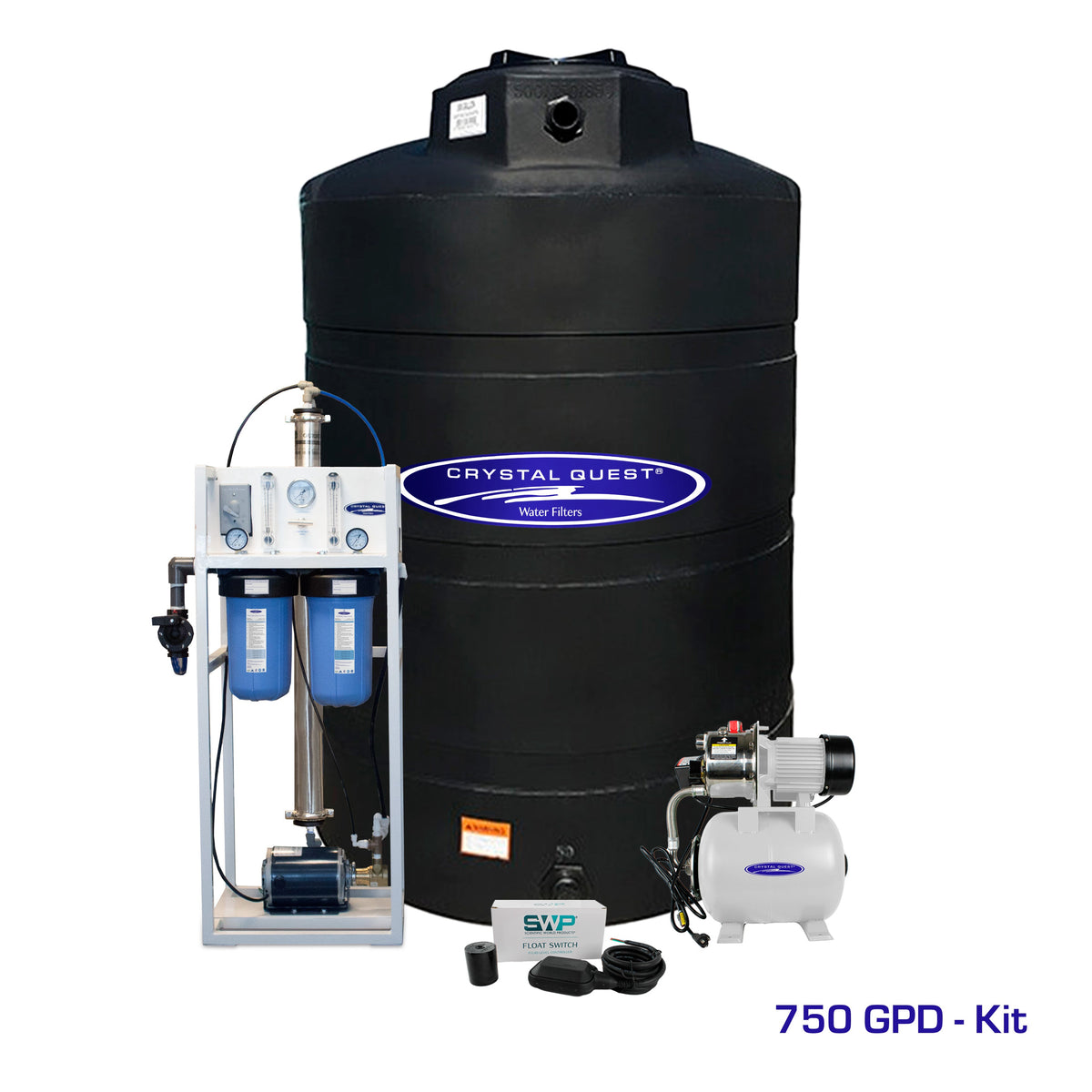

Storage Tank Sizes

System	Tank Size*
200-300 GPD	165 Gallons (31"D x 56" H)

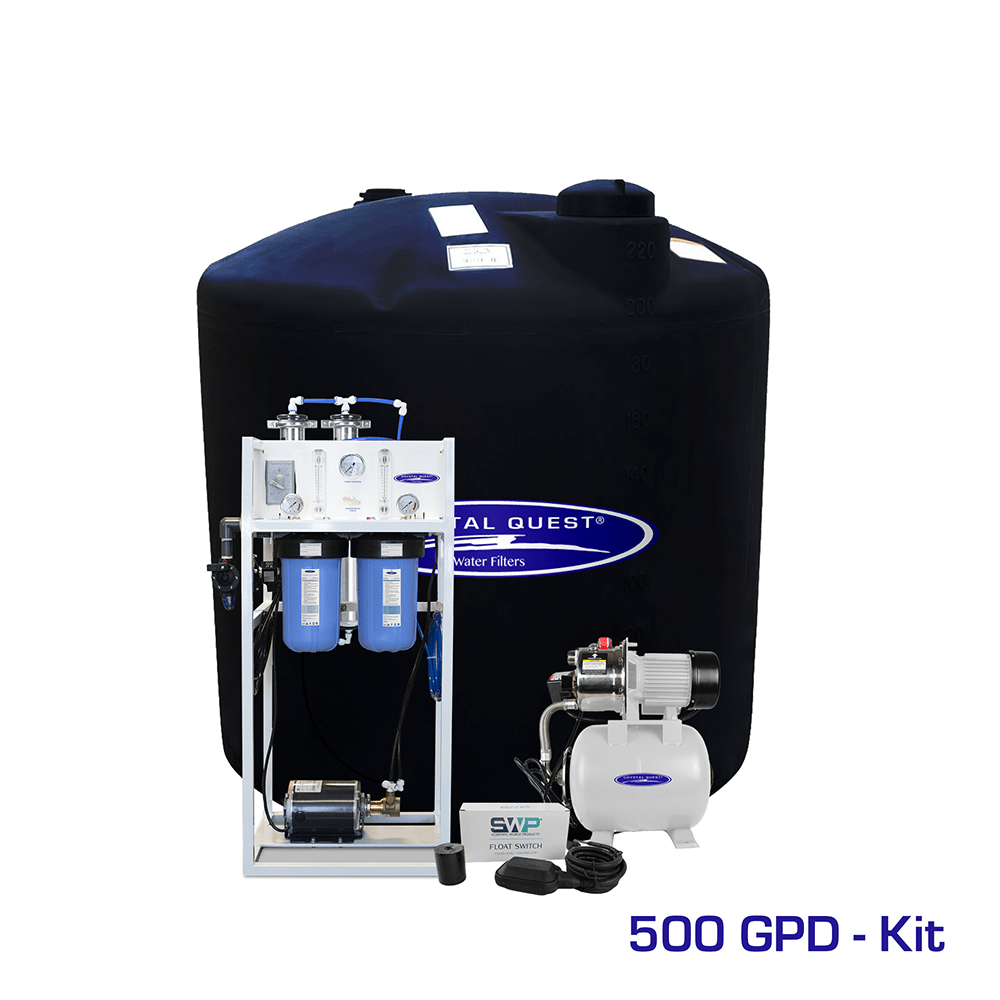

500-2,500 GPD	220 Gallons (42"D x 44" H)

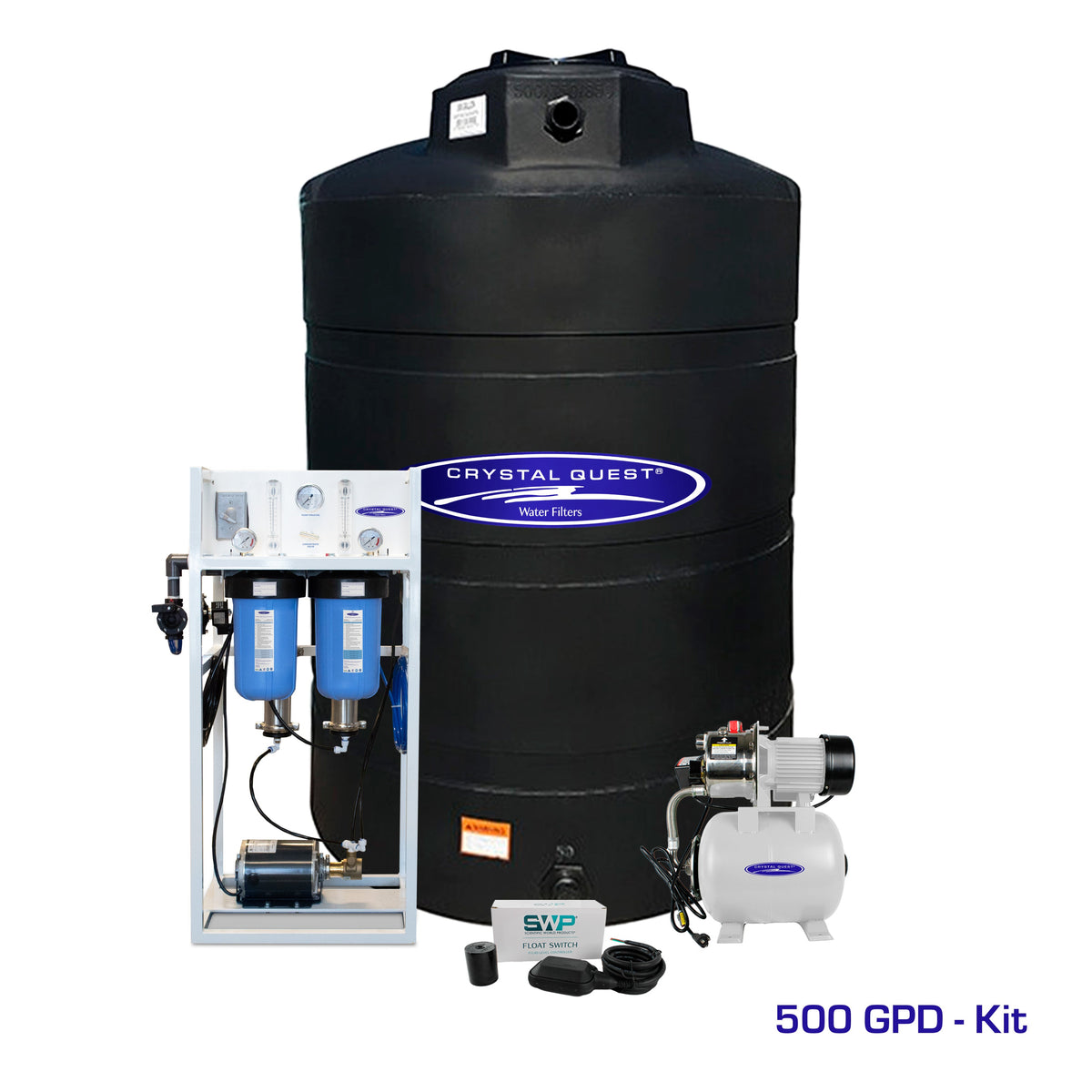

4,000-7,000 GPD	500 Gallons (48"D x 73" H)

*When considering the size of the tank, measure the door opening before installation.

SYSTEM	CARTRIDGE	SKU

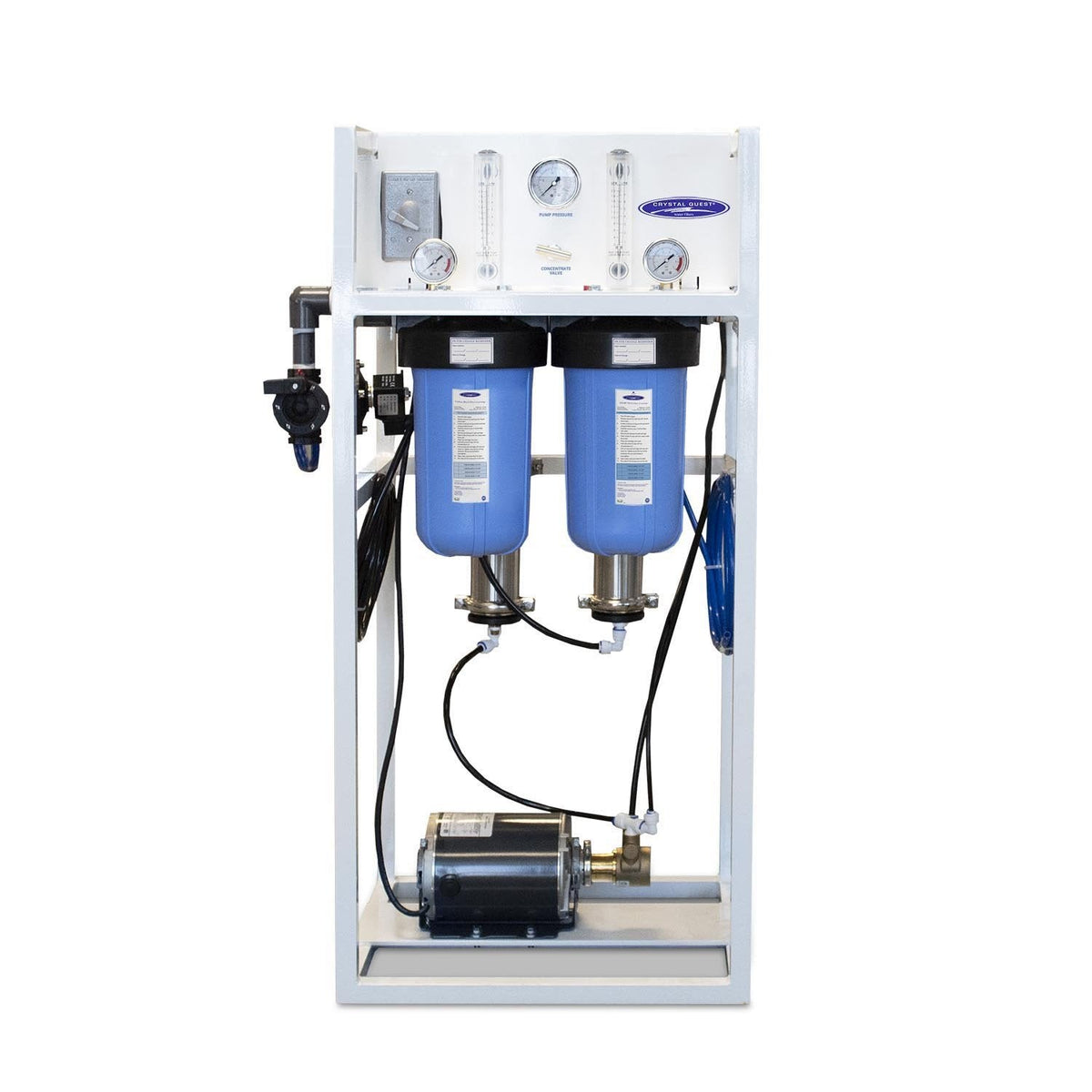

500 GPD	4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge	CQE-RC-04033
	4-5/8” x 9-3/4” SMART Filter Cartridge	CQE-RC-04027
	(2) 2.5” x 21” Freshwater Reverse Osmosis Membranes	CQE-RC-04084

750 GPD	4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge	CQE-RC-04033
	4-5/8” x 9-3/4” SMART Filter Cartridge	CQE-RC-04027
	2.5” x 40” Freshwater Reverse Osmosis Membrane	CQE-RC-04109

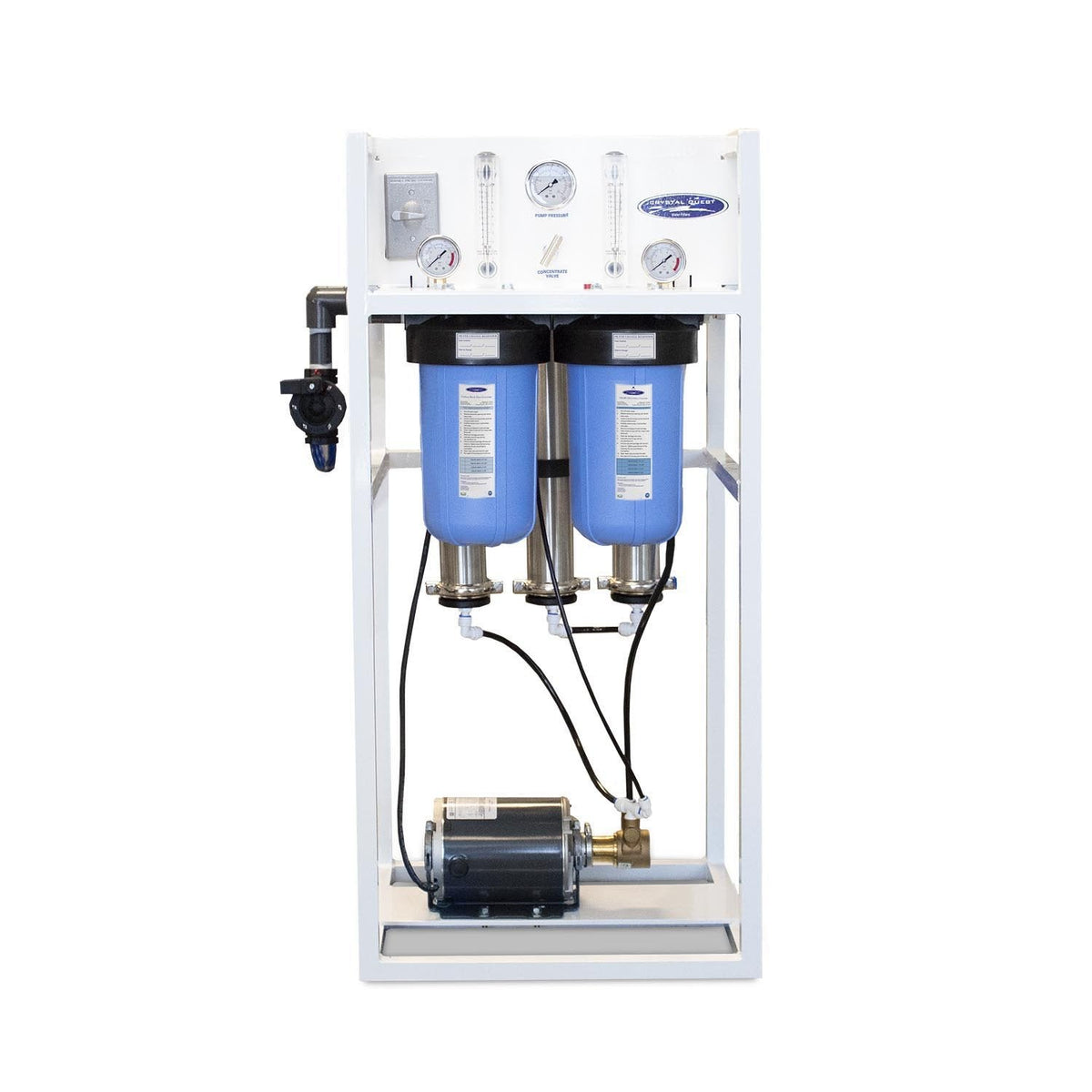

1000 GPD	4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge	CQE-RC-04033
	4-5/8” x 9-3/4” SMART Filter Cartridge	CQE-RC-04027
	(3) 2.5” x 21” Freshwater Reverse Osmosis Membranes	CQE-RC-04084

1500 GPD	4-5/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04034
	4-5/8” x 20” SMART Filter Cartridge	CQE-RC-04030
	(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes	CQE-RC-04109

1800 GPD	4-5/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04034
	4-5/8” x 20” SMART Filter Cartridge	CQE-RC-04030
	4” x 40” Freshwater Reverse Osmosis Membrane	CQE-RC-04086

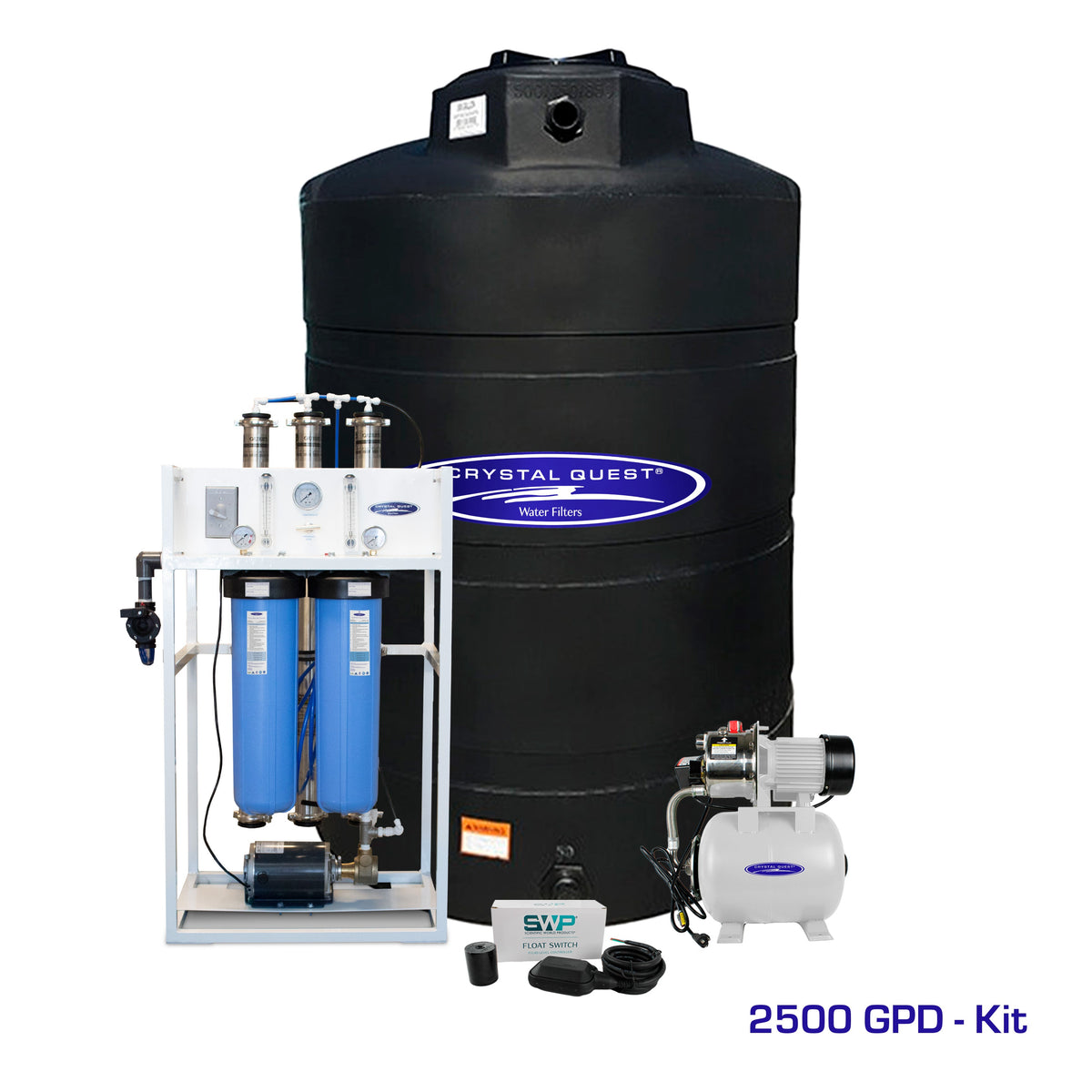

2500 GPD	4-5/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04034
	4-5/8” x 20” SMART Filter Cartridge	CQE-RC-04030
	(3) 2.5” x 40” Freshwater Reverse Osmosis Membranes	CQE-RC-04109

4000 GPD	4-5/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04034
	4-5/8” x 20” SMART Filter Cartridge	CQE-RC-04030
	4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04036
	(2) 4” x 40” Freshwater Reverse Osmosis Membranes	CQE-RC-04086


5000 GPD	4-5/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04034
	4-5/8” x 20” SMART Filter Cartridge	CQE-RC-04030
	4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04036
	(3) 4” x 40” Freshwater Reverse Osmosis Membrane	CQE-RC-04086

7000 GPD	4-5/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04034
	4-5/8” x 20” GAC Filter Cartridge	CQE-RC-04106
	4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04036
	4-5/8” x 20” SMART Filter Cartridge	CQE-RC-04030
	(4) 4” x 40” Freshwater Reverse Osmosis Membrane	CQE-RC-04086
