What flow rates are available?

Service flow rates are 15, 20, 35, 60, 75, 185, 200, 245 and 390 GPM, with pipe sizes from 1" to 3" per Crystal Quest's spec table.

Which add-ons are offered?

Options include a 12 GPM UV system, a leak detector valve, a vacuum breaker and a metered valve. Call us at 908-787-6030 to add them.

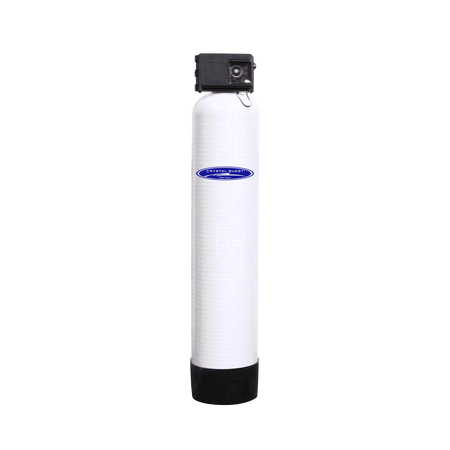

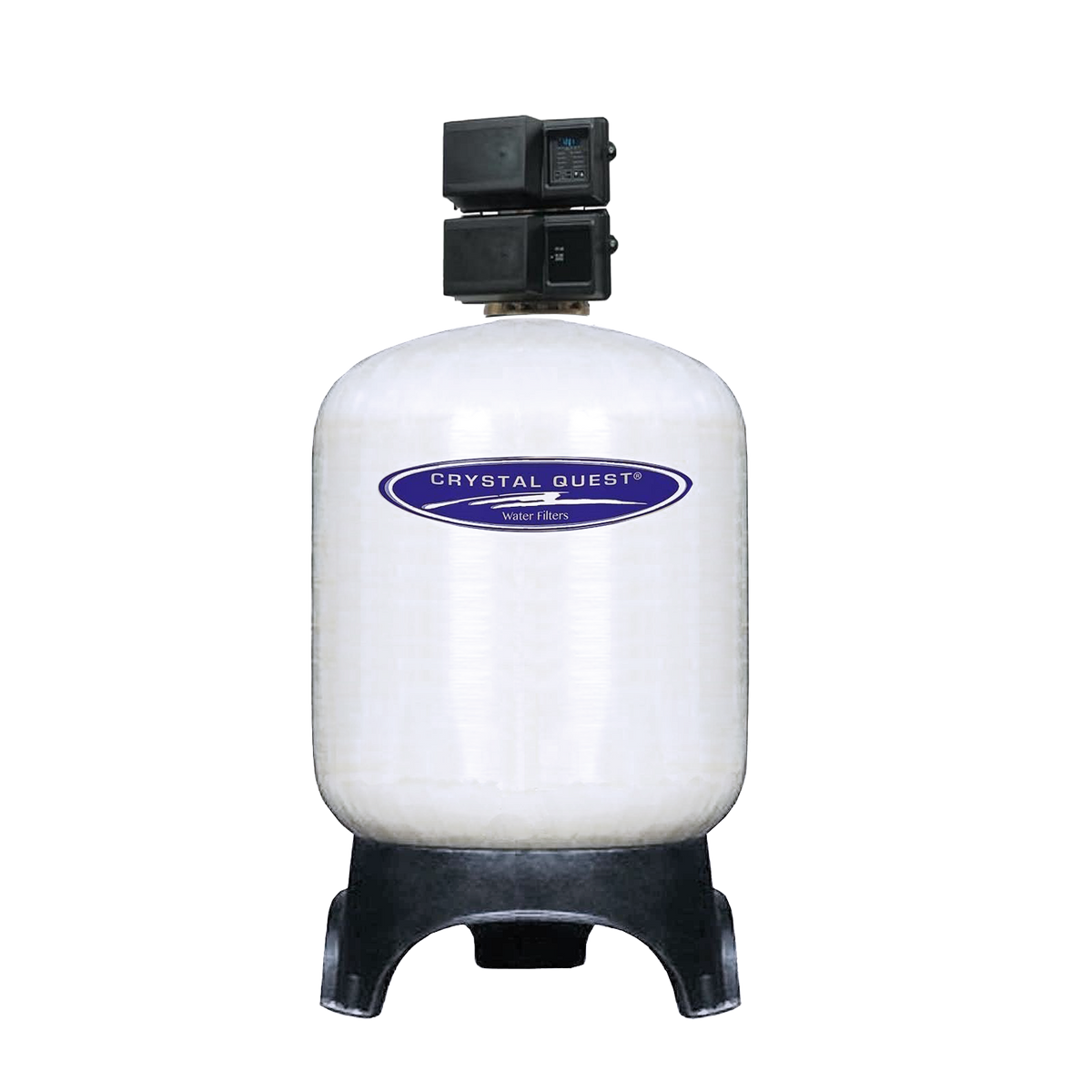

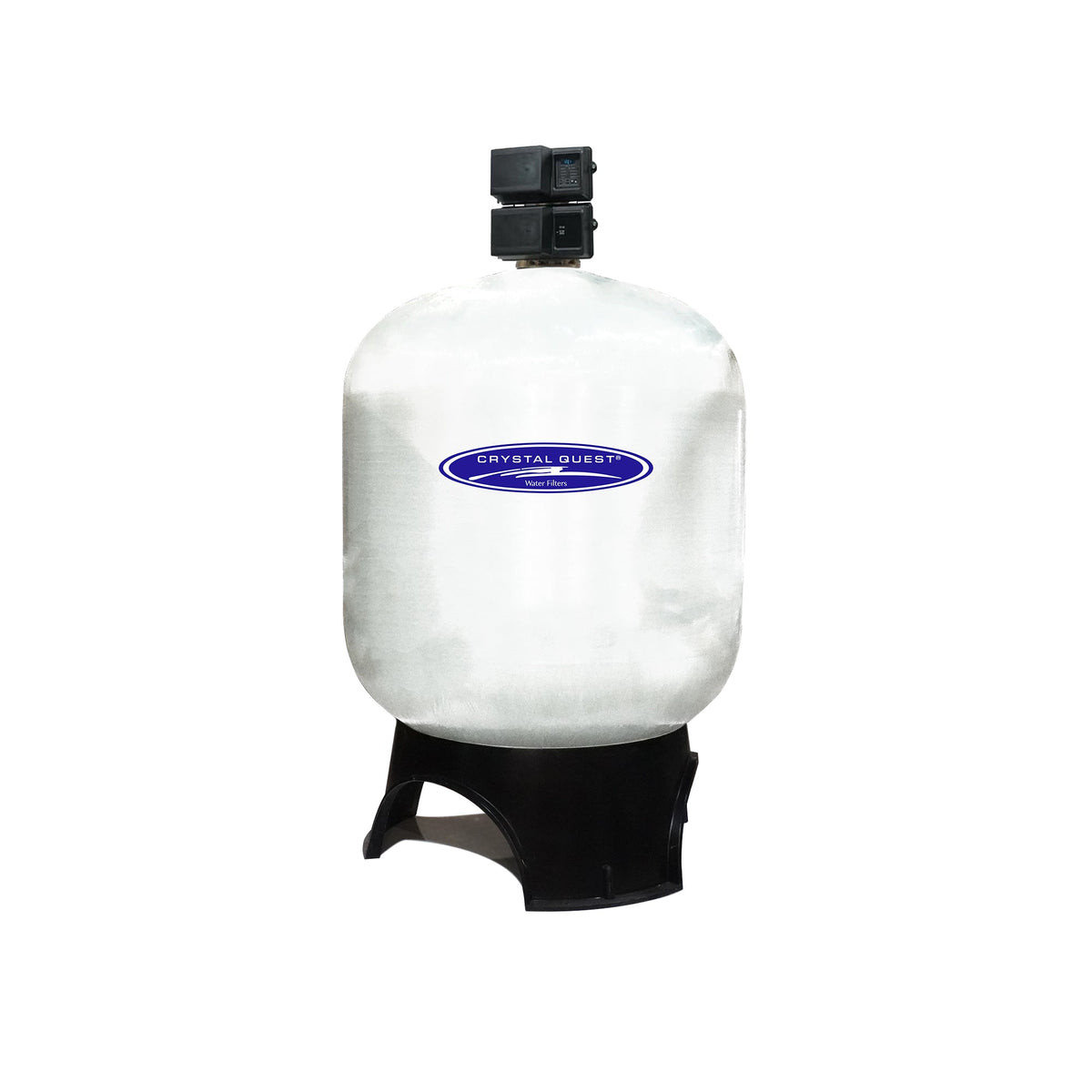

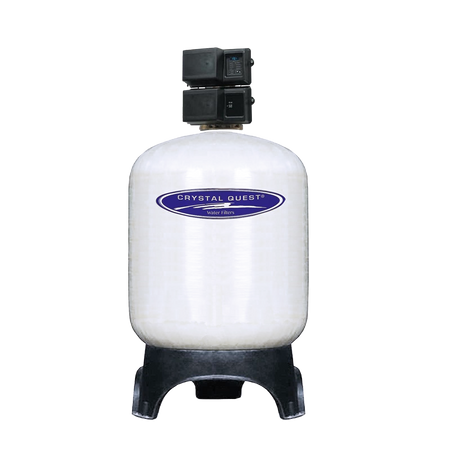

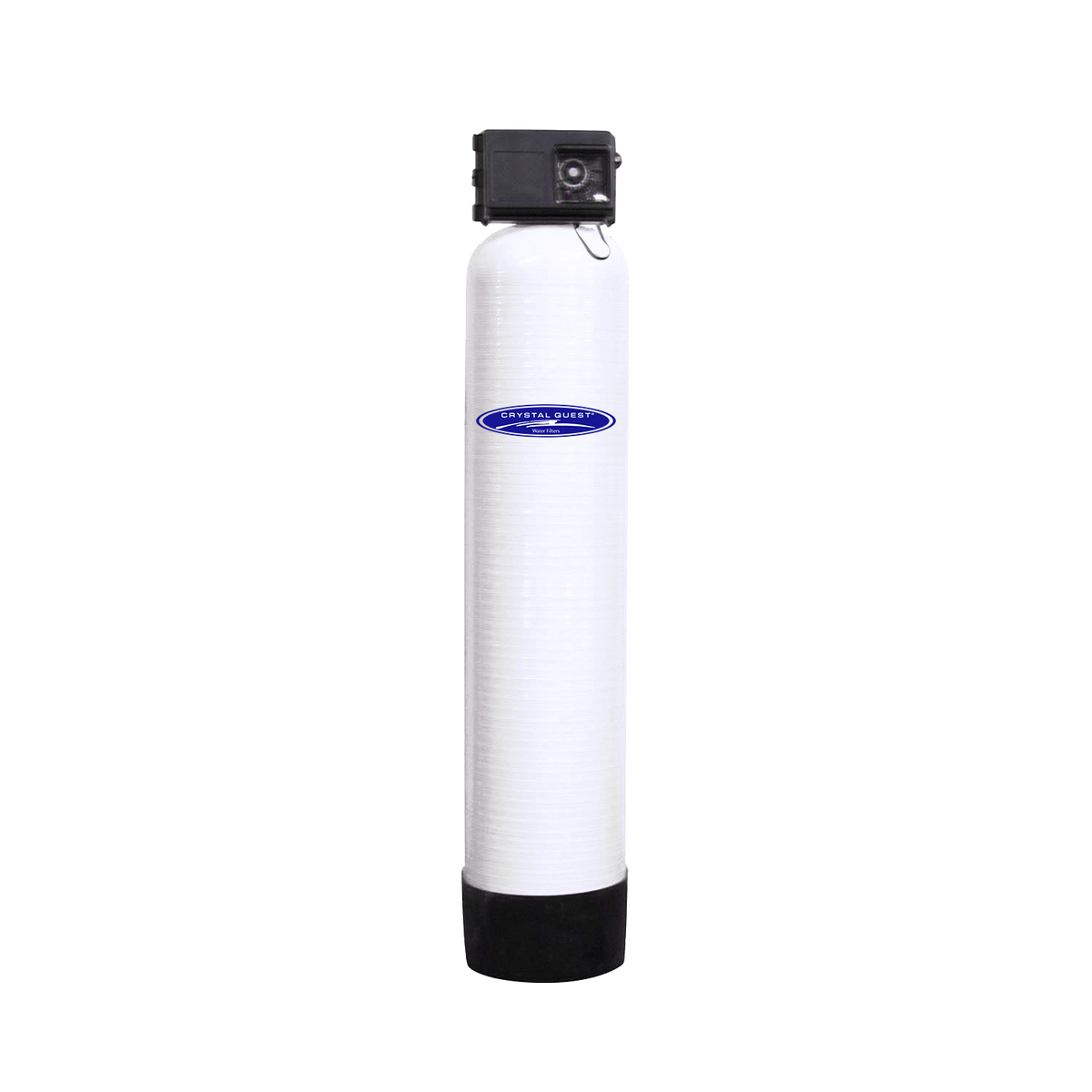

Radium & Uranium Water Filtration System

Name: Radium & Uranium Water Filtration System
Brand: Crystal Quest
SKU: CQE-CO-RU116
Price: 4659.99 USD
Availability: InStock

Overview

The Crystal Quest Radium & Uranium Water Filtration System is a commercial system that is engineered to reduce radium and uranium in groundwater. It comes in nine service flow rates from 15 to 390 GPM, with timer valves as standard and a metered valve available.

Remove Radium and Uranium from Your Drinking Water

Radium and uranium are naturally occurring radioactive elements that can enter groundwater supplies through the erosion of bedrock and soil, particularly in areas with high natural deposits. These contaminants are not detectable by taste, smell, or sight, making their presence in drinking water especially concerning. Like many hazardous substances, radium and uranium can pose serious health risks even at low concentrations that do not affect the water’s appearance or flavor.
Radium can dissolve into groundwater as it moves through certain types of rock formations, while uranium often enters water sources through natural leaching or human activities such as mining or industrial waste discharge. Both elements are classified as radioactive and can increase the risk of cancer and kidney damage when consumed over time. The EPA has set maximum contaminant levels (MCLs) for these substances—5 picocuries per liter (pCi/L) for combined radium-226 and radium-228, and 30 micrograms per liter (µg/L) for uranium—to help protect public health.
This filtration system is specifically engineered to target and reduce radium and uranium levels in water, providing a reliable solution for households and communities with naturally high concentrations or potential contamination from industrial sources.

Additional Product Options

12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.

Important to Know

Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.

*If you are interested in our available add-ons, please call to have them added to your system.

Please speak with a product specialist to determine if dosing or regeneration is needed for your water.

Compatible Valves:

GPM:15

2510 Automatic Control Head

Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
3/5” control valve
Standard 1.9" distributor pilot
high service flow rate of 19 GPM
backwash capacity of 17 GPM
valves use all brass material
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

2510 Automatic Control Head

Features:

Electromechanical Timer valves
3/5” control valve
Standard 1.9" distributor pilot
high service flow rate of 19 GPM
backwash capacity of 17 GPM
valves use all brass material
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

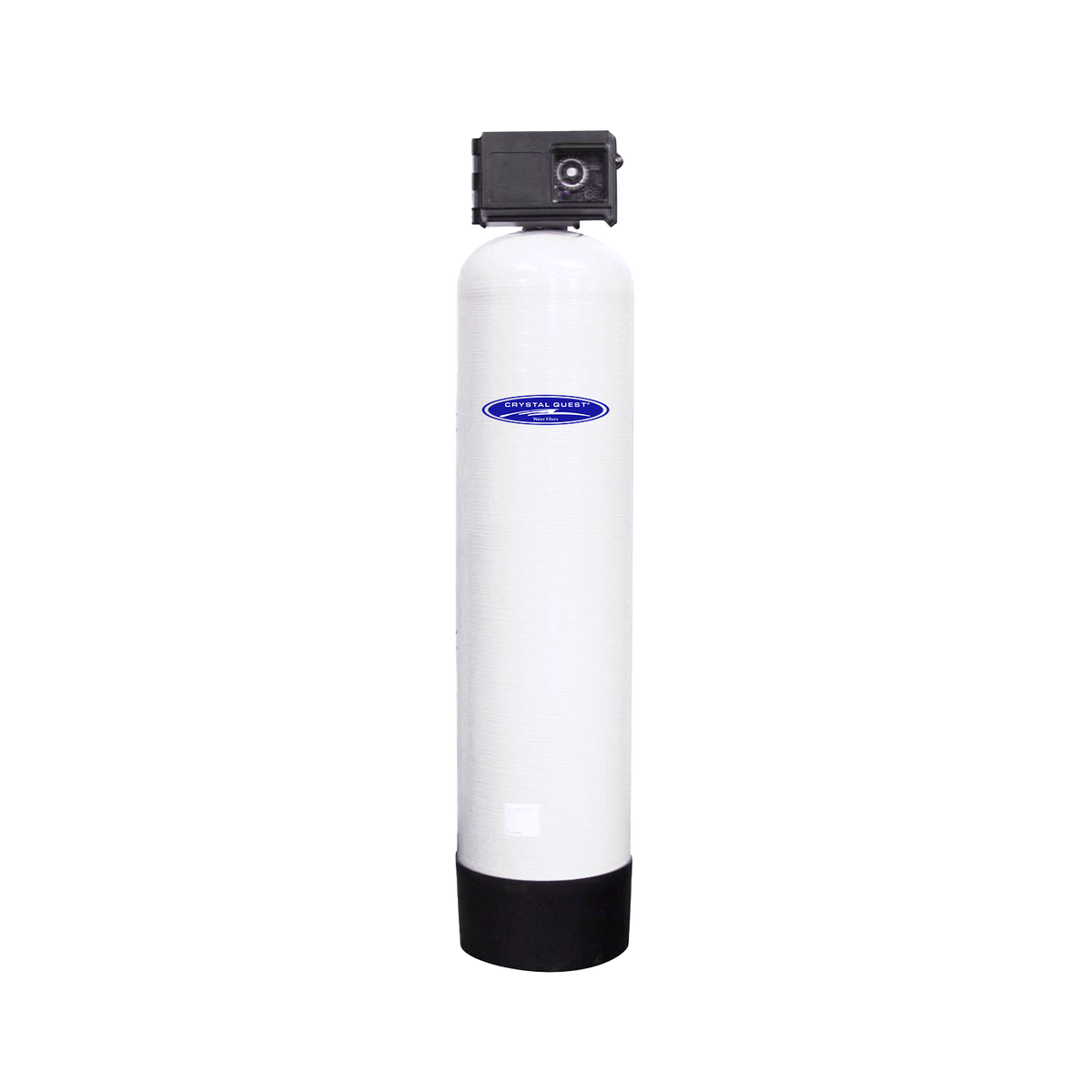

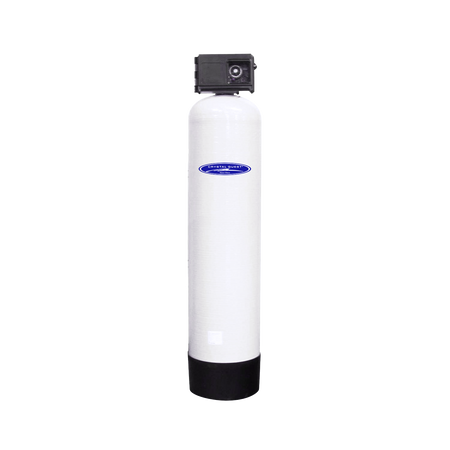

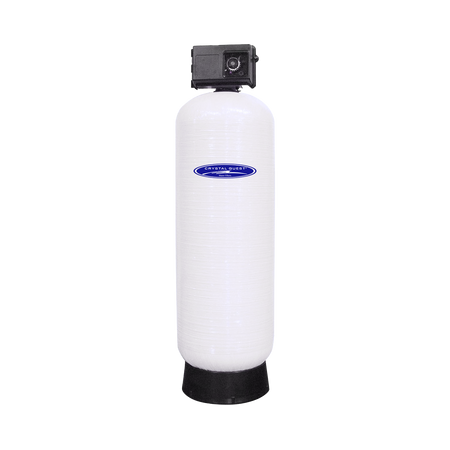

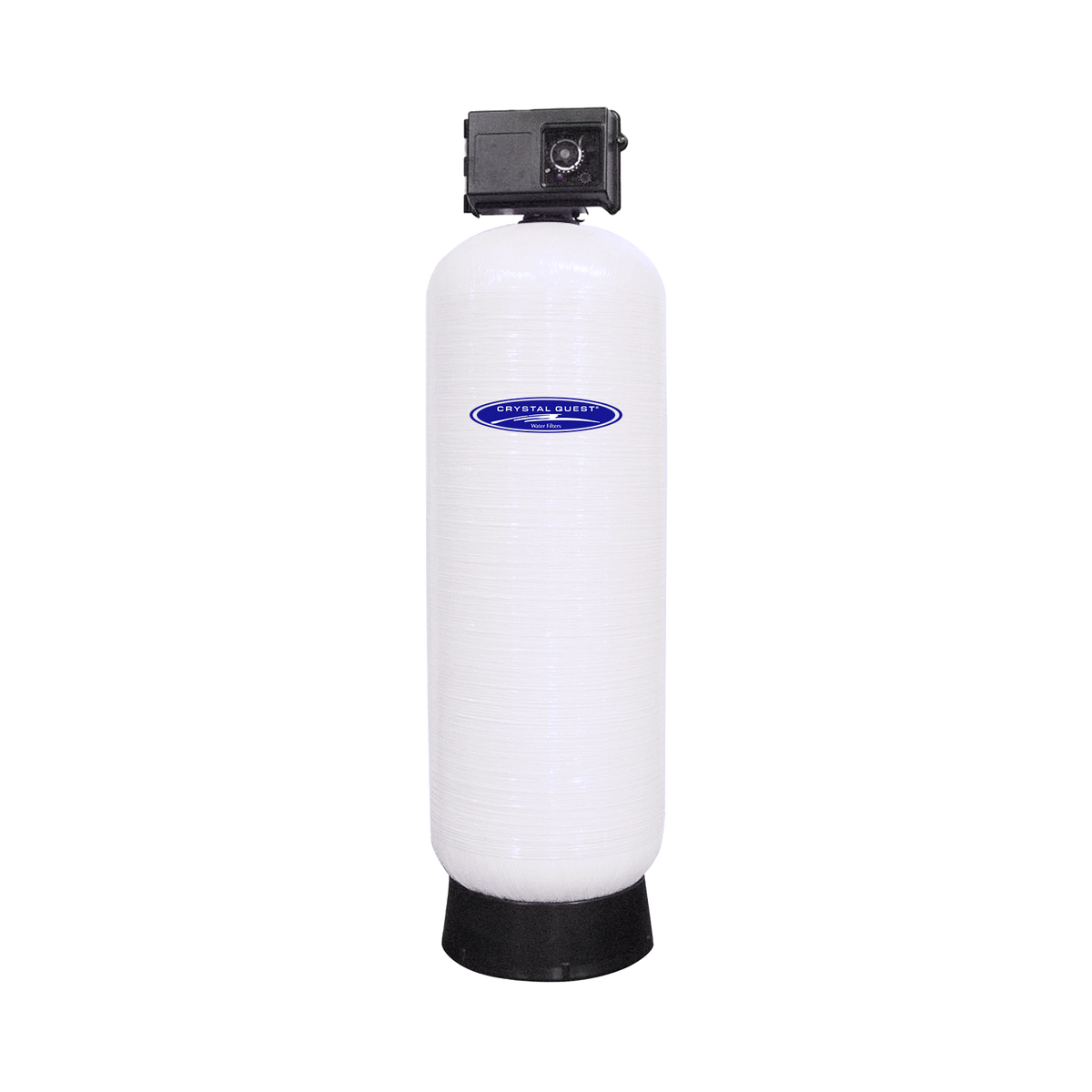

GPM:20 - 35

2850 Automatic Control Head

This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
1 1/2” control valve
Standard 1.9" distributor pilot
high service flow rate of 60 GPM
backwash capacity of 47 GPM
valves use all brass material
Fully adjustable 5-cycle control
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

2850 Automatic Control Head

This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
1 1/2” control valve
Standard 1.9" distributor pilot
high service flow rate of 60 GPM
backwash capacity of 47 GPM
valves use all brass material
Fully adjustable 5-cycle control
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

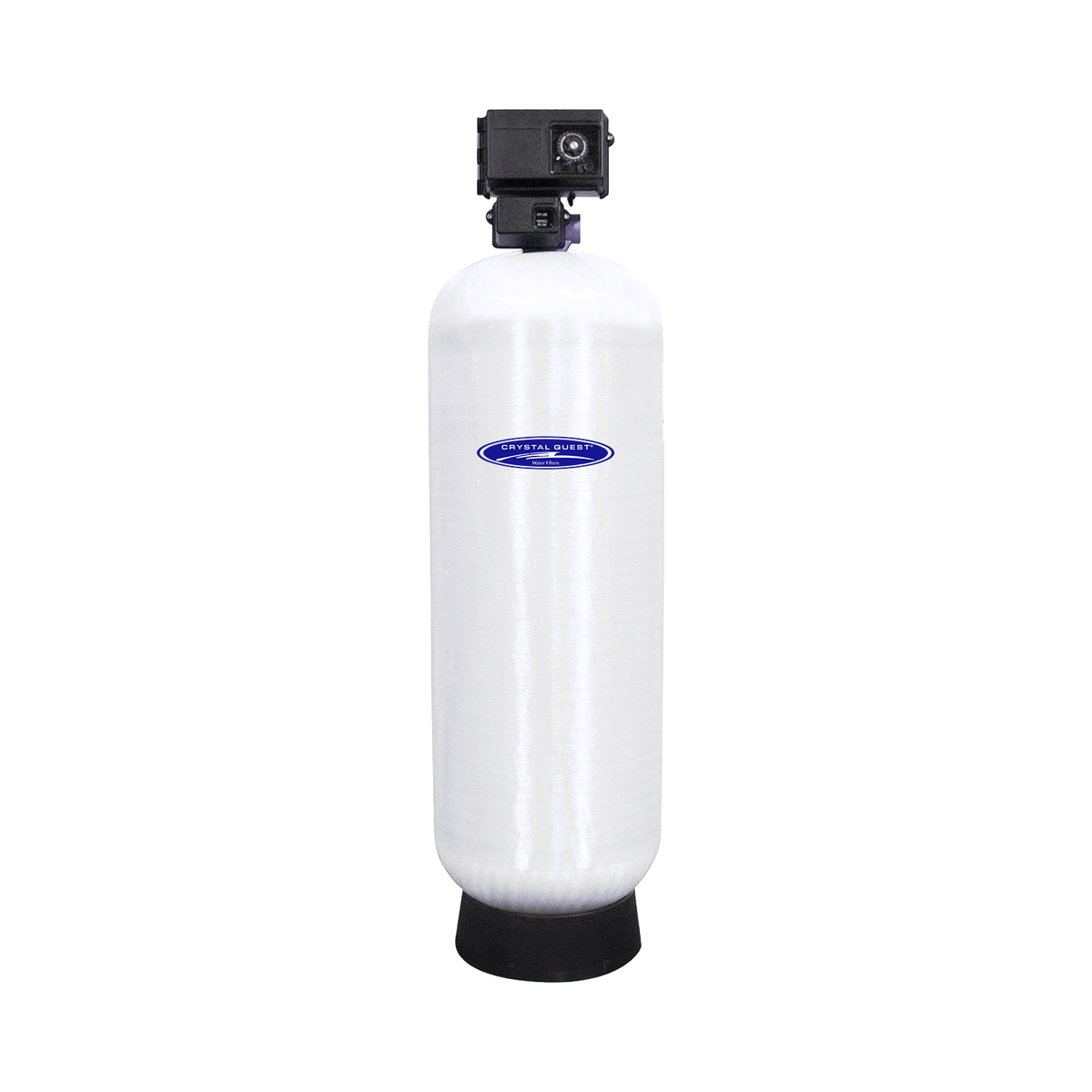

GPM:60 - 75

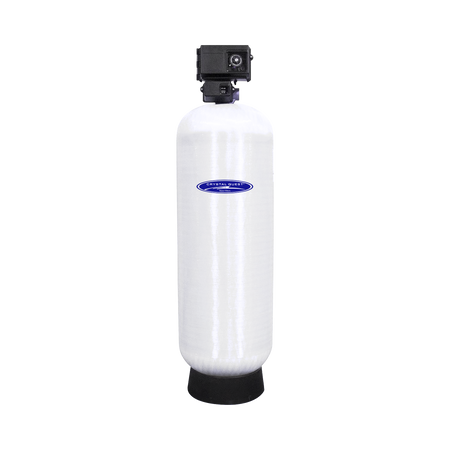

2900 Automatic Control Head

Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.

Features:

Electromechanical Timer valves
2” control valve
high service flow rate of 106 GPM
backwash capacity of 36 GPM
valves use all brass material
self adjusting backwash controller
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

2900 Automatic Control Head

Features:

Electromechanical Timer valves
2” control valve
high service flow rate of 106 GPM
backwash capacity of 36 GPM
valves use all brass material
self adjusting backwash controller
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

GPM:200 - 390

3900 Control Head

This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:15 - 75

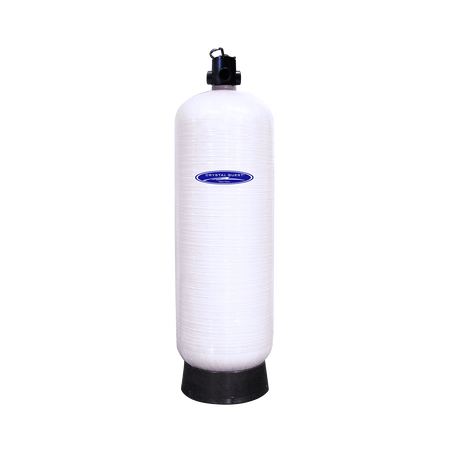

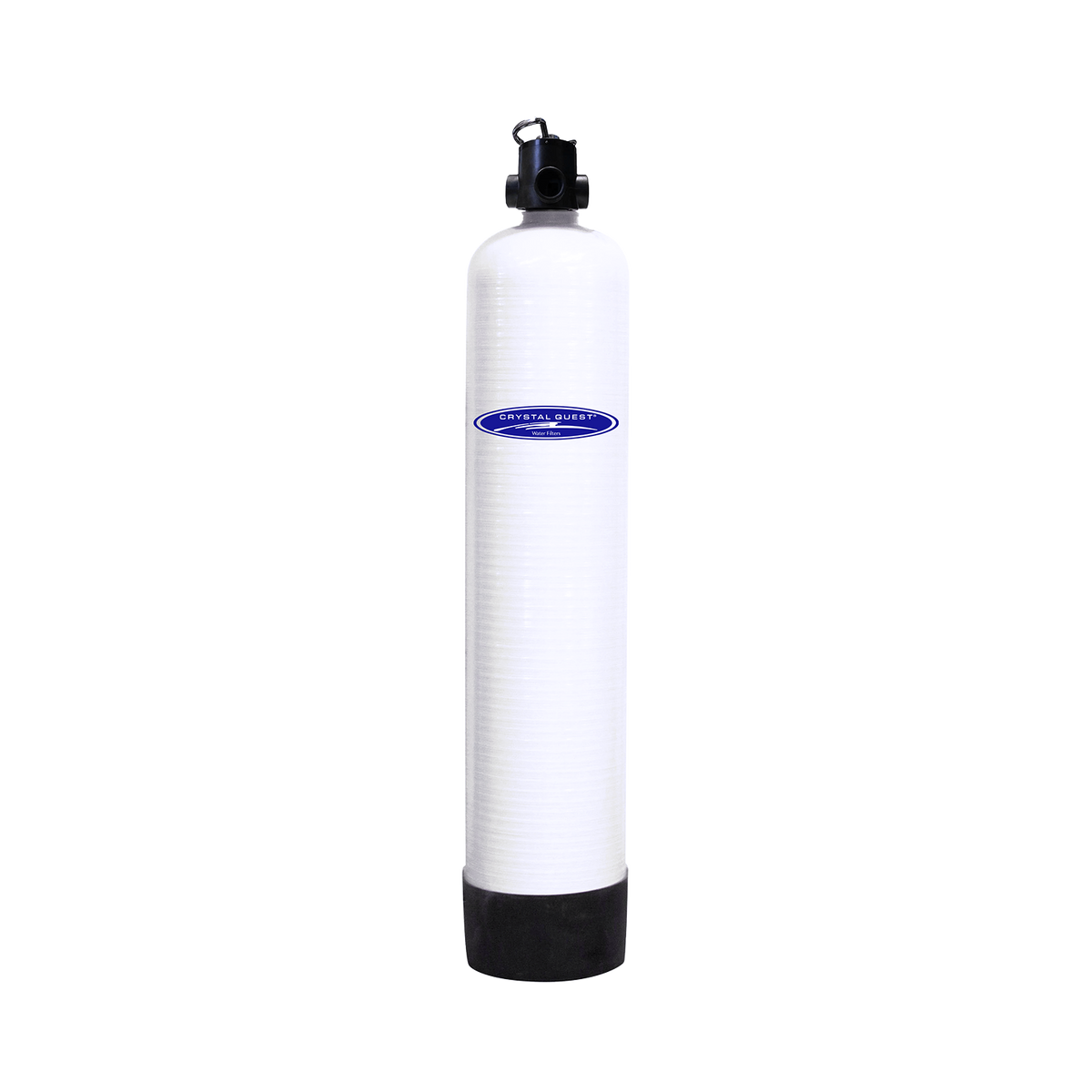

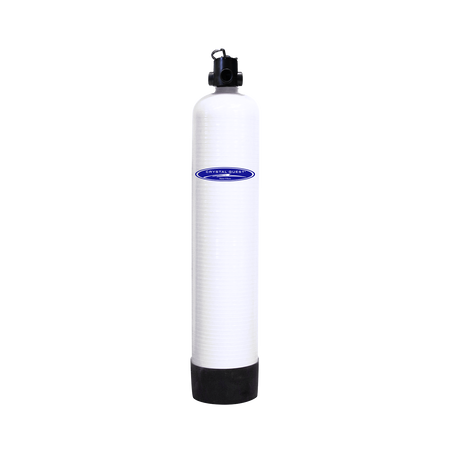

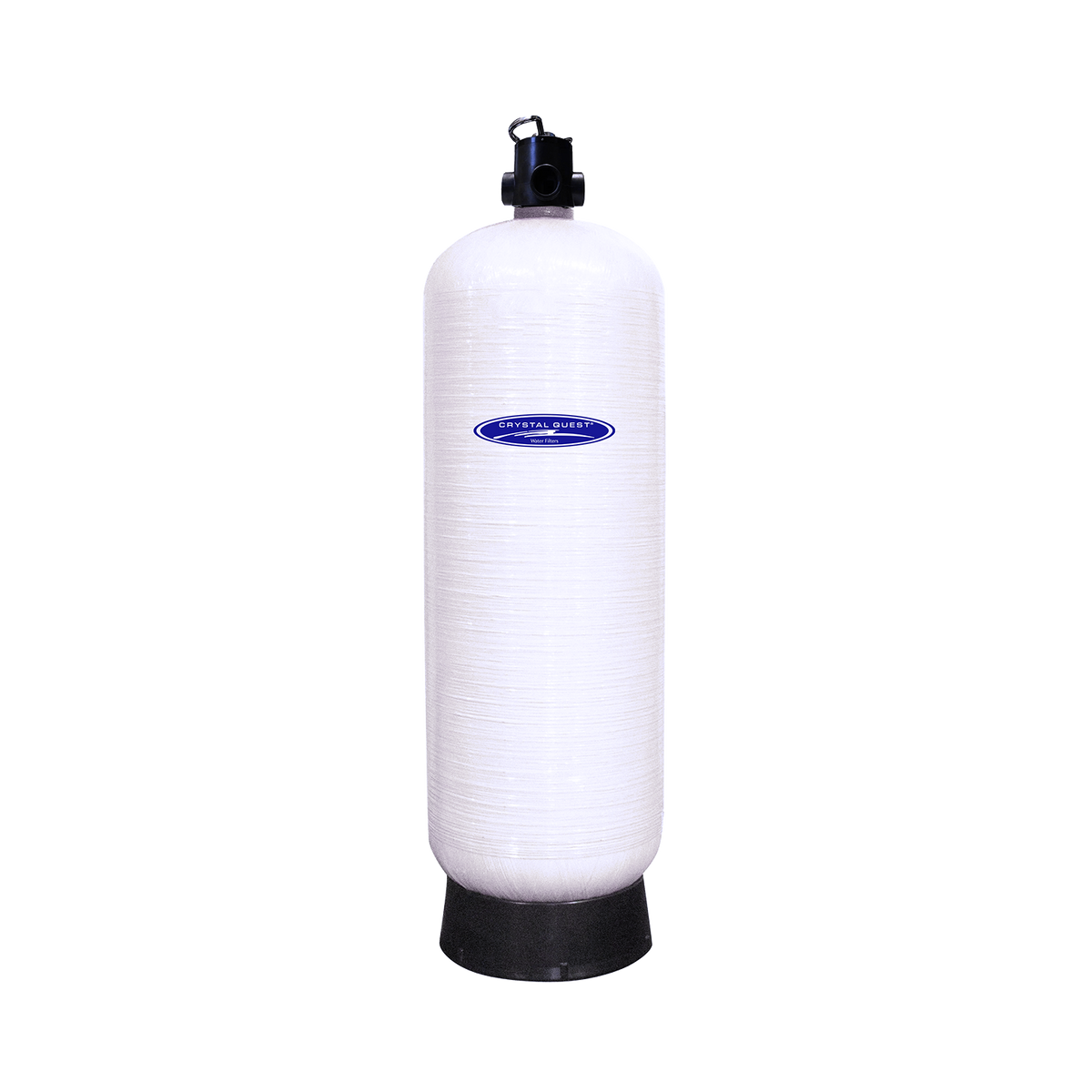

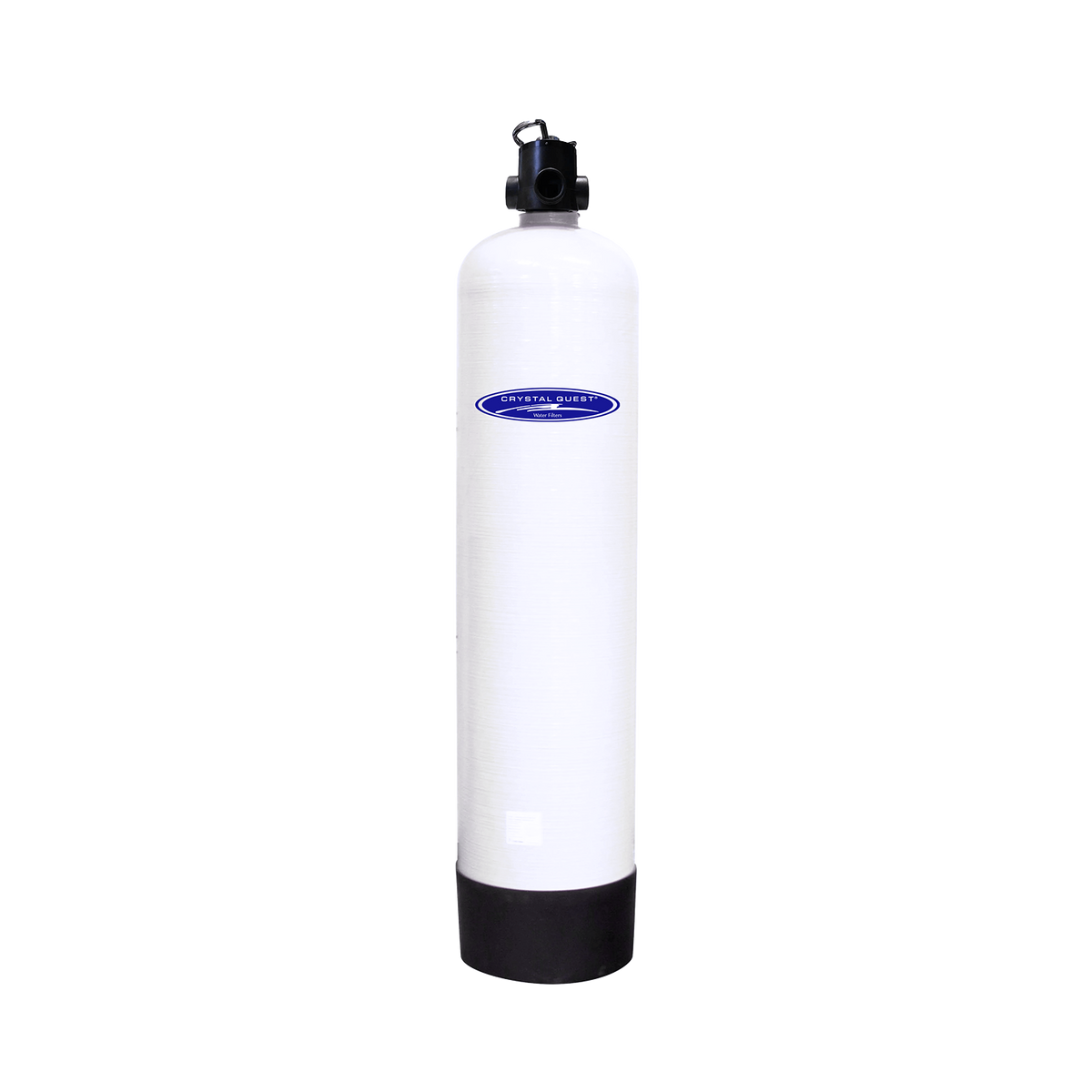

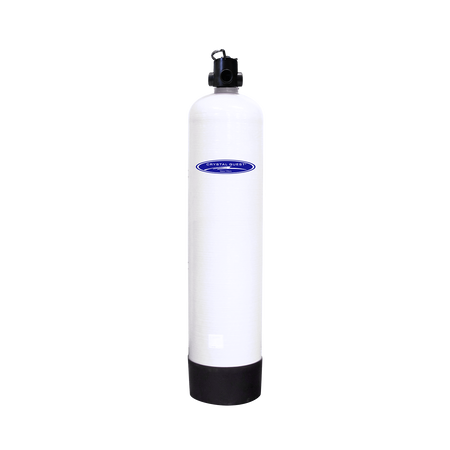

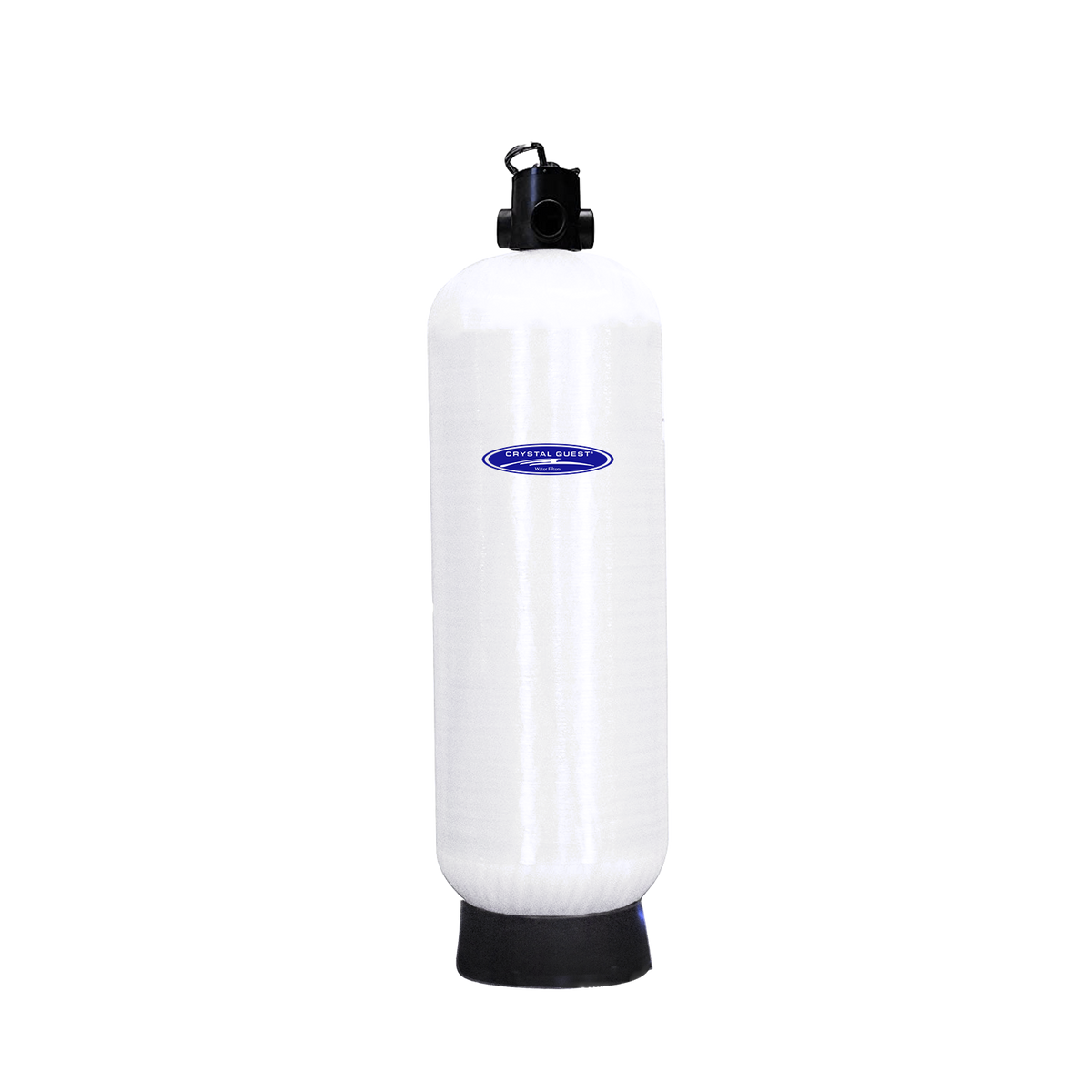

Manual Backwash Control

Features:

easy operation
Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain, 1.05" OD Riser, 2.5" 8-NPSM Connection
Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection

Manual Backwash Control

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:15 - 75

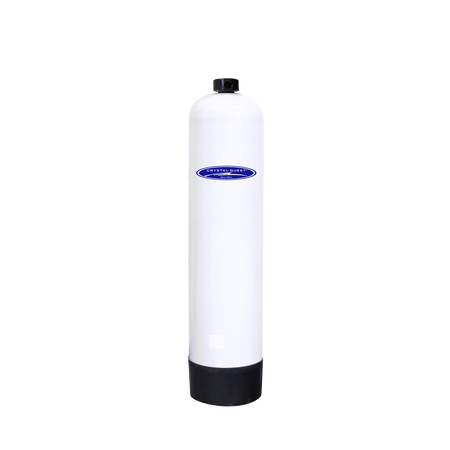

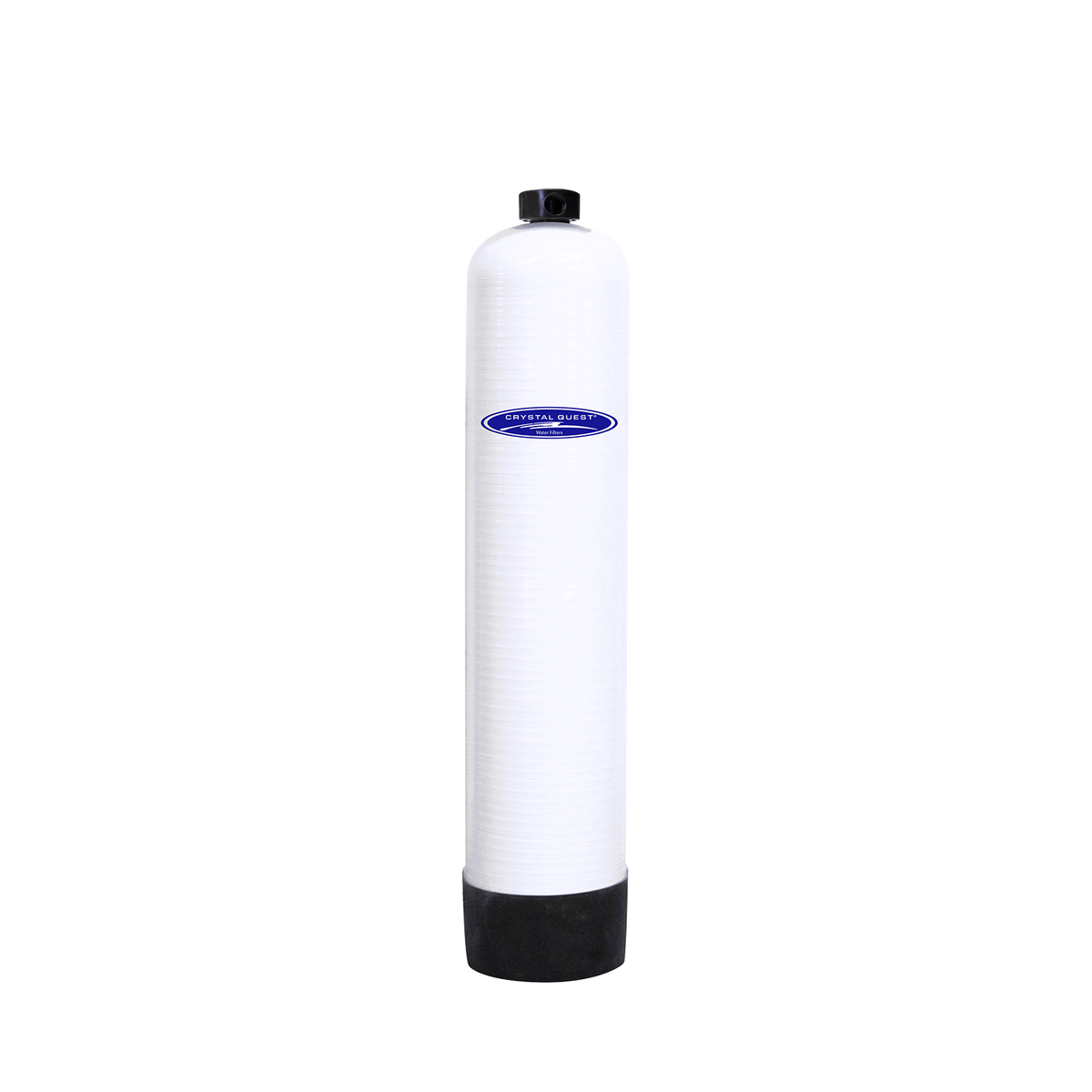

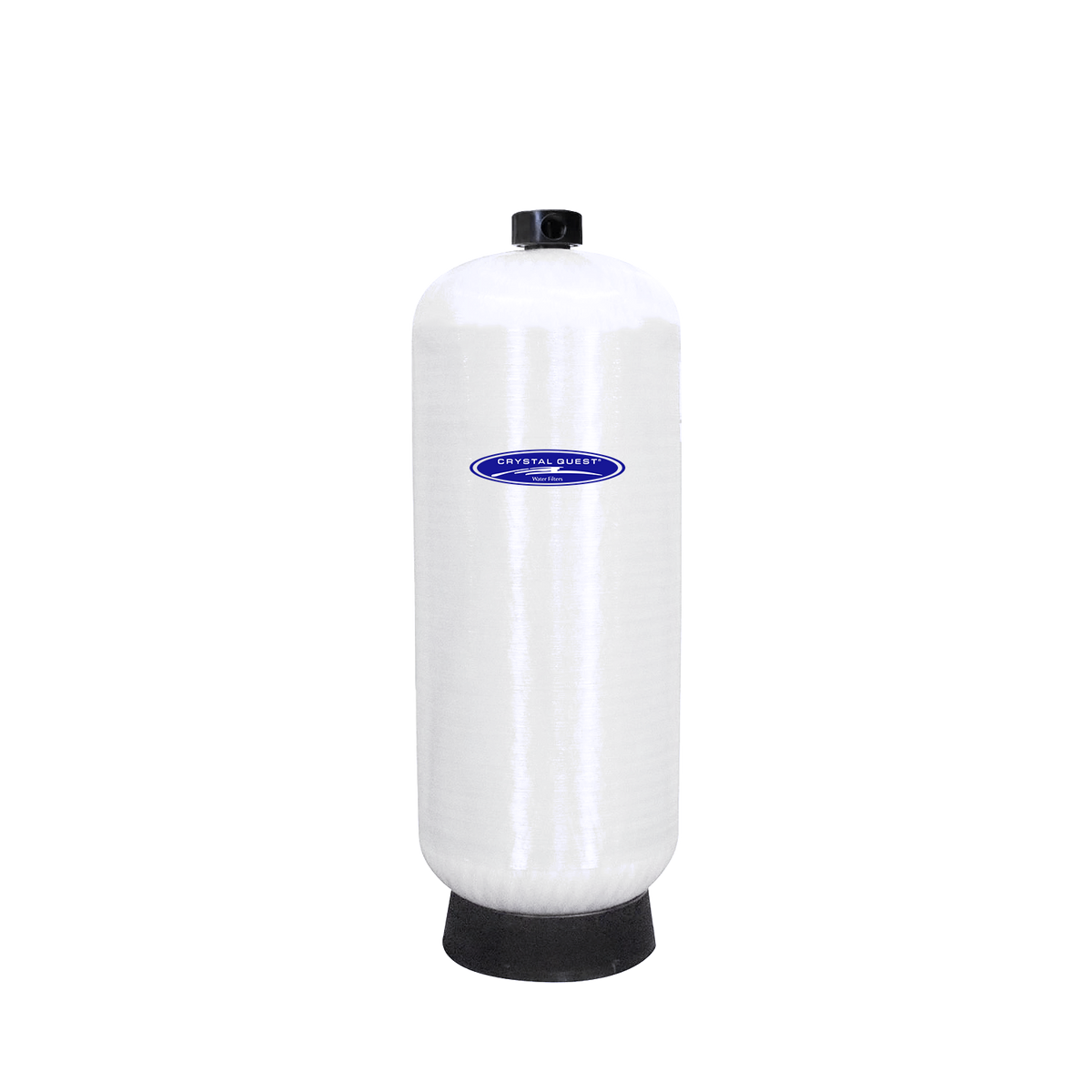

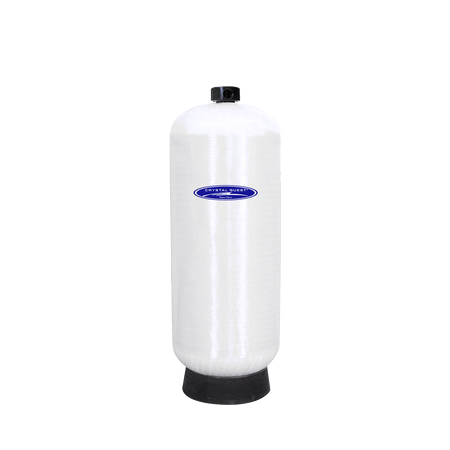

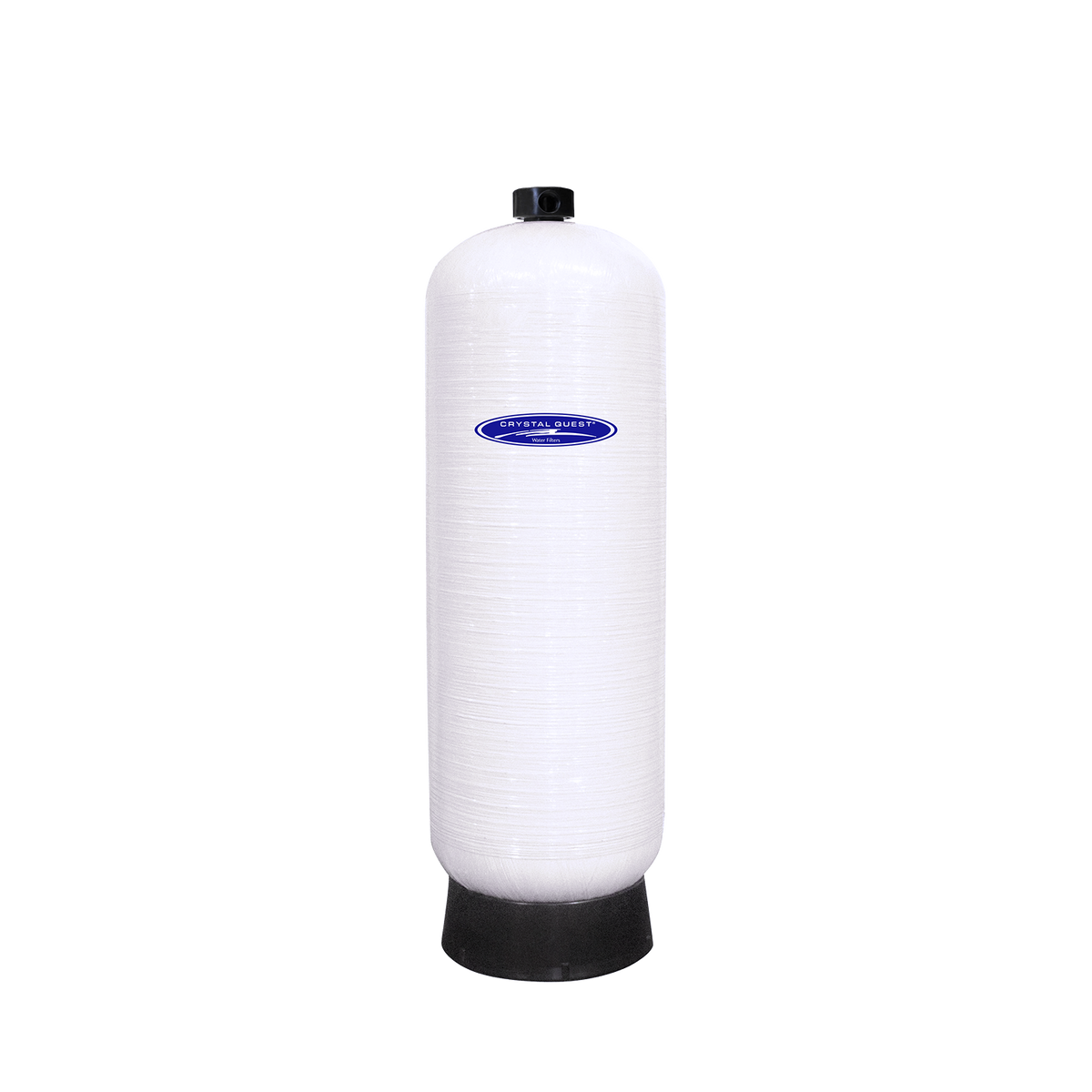

Manual Upflow Head

Features:

No electricity and no back wash
easy operation
can be either up or down flow simply by plumbing it backwards
Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

Specification	CQE-CO-RU116	CQE-CO-RU119	CQE-CO-RU122	CQE-CO-RU125	CQE-CO-RU128	CQE-CO-RU131	CQE-CO-RU133	CQE-CO-RU134	CQE-CO-RU135

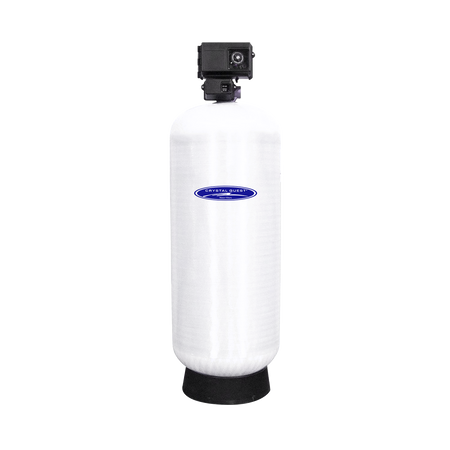

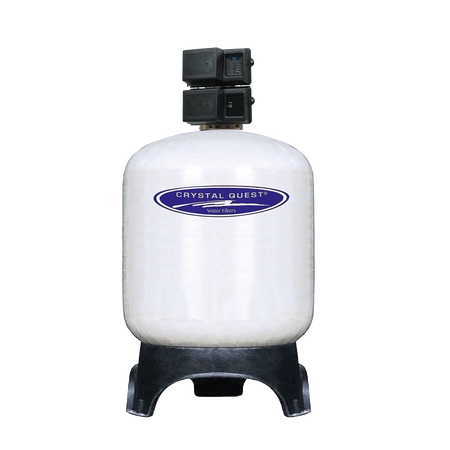

Service Flow Rate GPM	15	20	35	60	75	185	200	245	390
Peak Flow GPM	22	41	60	95	140	250	270	280	450
Backwash Flow GPM	5	7	12	15	25	35	50	65	75
Pipe Size	1"	1.5"	1.5"	2"	2"	2" / 3"	3"	3"	3"
Electronic Control Valve	2510	2850	2850	2900	2900	3150 / 3900	3900	3900	3900
Radium and Cadmium Removal Media	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³	60 ft³
PSI Range	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60
Mineral Tank Size (in.)	14" x 65"	16" x 65"	21" x 62"	24" x 72"	30" x 72"	36" x 72"	42" x 72"	48" x 72"	63" x 83"
Space Required (in.) (D x H)	16" x 75"	18" x 75"	23" x 84"	24" x 95"	32" x 95"	40" x 192"	46" x 192"	52" x 192"	67" x 203"
Quartz (lbs.)	30	40	70	100	150	200	300	400	600

Filtration Media Information
Product Data Sheet	Safety Data Sheet
MetalX™-Lite	MetalX™-Lite Product Data Sheet	MetalX™-Lite Safety Data Sheet
ERA 6500 & 9500	ERA 6500 & 9500 Product Data Sheet	ERA 6500 & 9500 Safety Data Sheet
Ion Exchange	Ion Exchange Resin Product Data Sheet	Ion Exchange Resin Safety Data Sheet

MetalX™-Lite PDS

MetalX™-Lite SDS

2510 Control Head Manua l

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual
