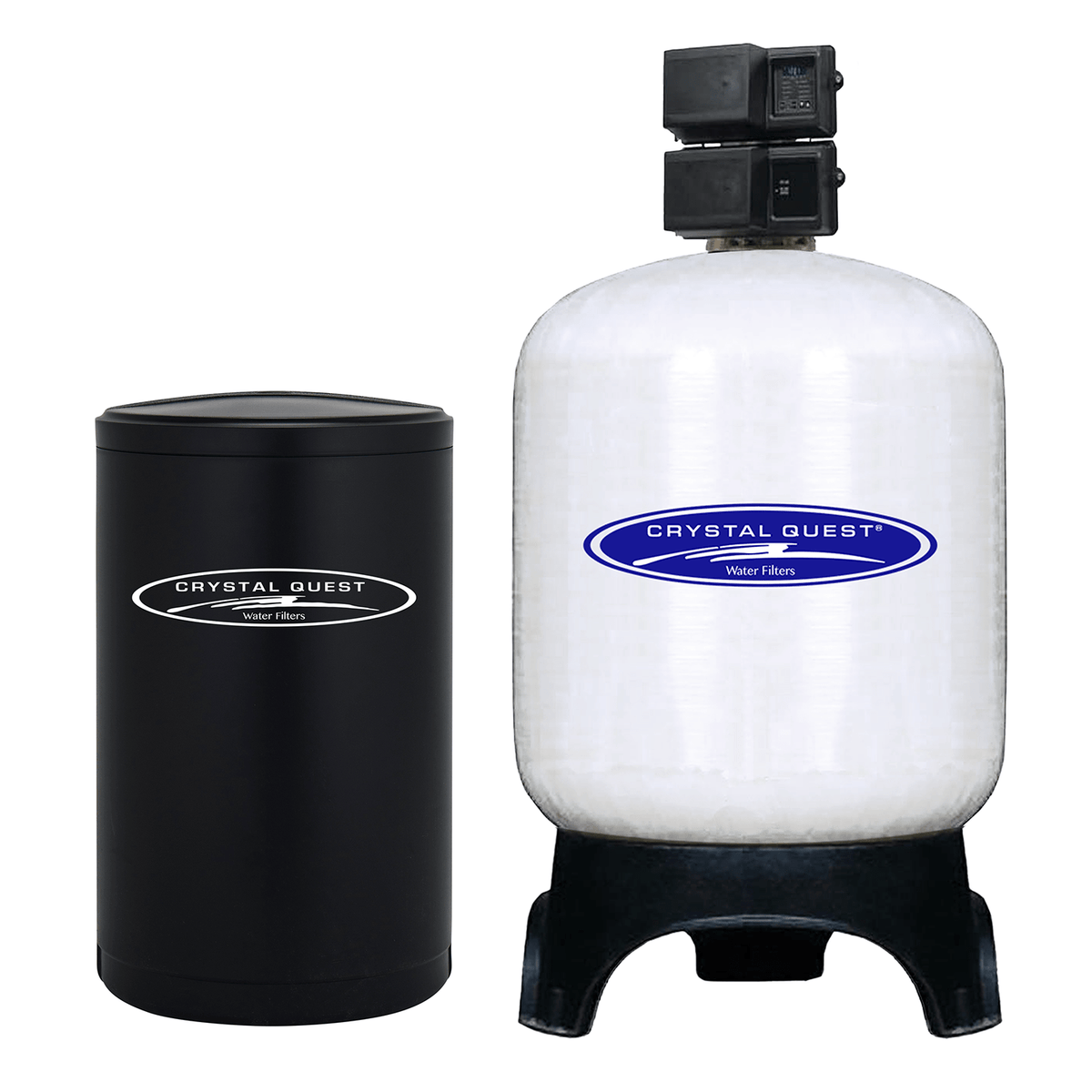

Crystal Quest Commercial Water Softener System (1,800,000 Grains) - Single 60 cu.ft. (CQE-CO-WS18M)

Crystal Quest Authorized dealer

SKU: CQE-CO-WS18M

Commercial Water Softener System (1,800,000 Grains) - Single 60 cu.ft.

Name: Commercial Water Softener System (1,800,000 Grains) - Single 60 cu.ft.
Brand: Crystal Quest
SKU: CQE-CO-WS18M
Price: 27599.99 USD
Availability: InStock

In stock

$27,599.99

Not sure this is the right system?

Get a Free Water Match. We'll check your local water and tell you honestly if this is the right system, or if something cheaper does the job.

Get a Free Water Match

Ships direct from the manufacturer · Shipping calculated at checkout Details

Returns within 30 days of delivery · 30% restocking fee Details

Questions? Talk to a water specialist

1-year manufacturer warranty
Returns
Live chat daily 8am–10pm ET
Authorized Crystal Quest dealer

Overview

Features

Timer Control Valves
Heavy duty composite fiberglass tanks
High Flow Distributor
All brass, motor driven control valve with fully adjustable backwash cycles
Self-adjusting backwash controller
Flow controller to limit backwash flow

Benefits

Reduced water consumption
Engineered for commercial & industrial use
Maintence-free operation with the self-adjusting backwash controller
Certification Test

Add-Ons*

Metered Control Valve
Backwash bypass
3200NT Controller
NXT Upgrade Controller
Duplex parallel, twin alternating, triplex (progressive)
Optional skid mounting for tanks

*If you are interested in our available add-ons, please call to have them added to your system.

Compatible Valves:

GPM:185 - 205

3900 Control Head

This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

Specification	CQE-CO-02039	CQE-CO-02041	CQE-CO-02043	CQE-CO-02044	CQE-CO-02045	CQE-CO-02046	CQE-CO-02047	CQE-CO-02048	CQE-CO-02049	CQE-CO-02050	CQE-CO-02050A
Service Flow (GPM)	9-11	10-13	15	20	35	60	75	185	200	245	390
Backwash FLow (GPM)	4	4	5	7	12	15	25	35	50	65	75
Pipe Size	1"	1"	1"	1.5"	1.5"	2	2"	2" / 3"	3"	3"	3"
Electronic Control Valve	5600	5600	2510	2850	2850	2900	2900	3150 / 3900	3900	3900	3900
Filter Media Volume	1.5 ft³	2 ft³	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³	60 ft³
PSI Range	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60
Grain Capacity	45,000	60,000	90,000	120,000	210,000	300,000	450,000	600,000	900,000	1,200,000	1,800,000
Brine Tank Capacity	130L / 36G	130L / 36G	300L / 79G	300L / 79G	500L / 132G	800L / 211G	1000L / 265G	1500L / 396G	2000L / 528G	2000L / 528G	2000L / 528G
Mineral Tank Size (in.)	10" x 54"	12" x 52"	14" x 65"	16" x 65"	21" x 62"	24" x 72"	30" x 72"	36" x 72"	42" x 72"	48" x 72"	63" x 83"
Brine Tank Dimensions	18" x 33"	18" x 33"	23” x 47”	23” x 47”	29” x 52”	34” x 53”	39” x 55”	51” x 52”	51” x 63”	51” x 63”	51” x 63”
Space Required (in.) (L x W x H)	30" x 20" x 64"	32" x 20" x 62"	39" x 25” x 75"	41" x 25” x 75"	53" x 31” x 84"	58" x 36” x 95"	71" x 41” x 95"	91" x 53” x 192"	98" x 53” x 192"	103" x 53” x 192"	118" x 53” x 203"
Quartz (lbs.)	15	20	30	40	70	120	150	300	300	450	1800

Replacement Media
Product Name	SKU
Eagle Water Softener Resin	CQE-RM-05002
Eagle Multimedia	CQE-RM-05001

Product Manual

Whole-House-Manual.pdf

Leak Detector Manual

Certification Test

Water Softener Product Data Sheet

Water Softener Safety Data Sheet

2510 Control Head Manual

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual

15cu Softener Schematic

20cu Softener Schematic

7cu Softener Schematic
