What flow rates are available?

Service flow rates are 15, 20, 35, 60, 75, 185, 200, 245 and 390 GPM. Peak flow runs from 22 GPM on the 15 GPM model up to 450 GPM on the 390 GPM model.

Which control valve comes with each size?

Automatic models use a 2510 valve at 15 GPM, 2850 at 20 and 35 GPM, 2900 at 60 and 75 GPM, 3150 or 3900 at 185 GPM, and 3900 from 200 to 390 GPM. The 15 to 75 GPM sizes are also offered with a manual upflow head or a manual downflow head with backwash.

How much space and pipe size does it need?

Pipe size runs from 1" on the 15 GPM model to 3" from 200 GPM up. Required floor space runs from 16" x 75" (D x H) for 15 GPM to 67" x 203" for 390 GPM, with an operating range of 35 to 60 PSI.

Which add-ons can be ordered?

Crystal Quest offers a metered control valve, backwash bypass, 3200NT or NXT controller upgrades, duplex, twin alternating or triplex setups, and skid mounting. Call us at 908-787-6030 to add them before the order ships.

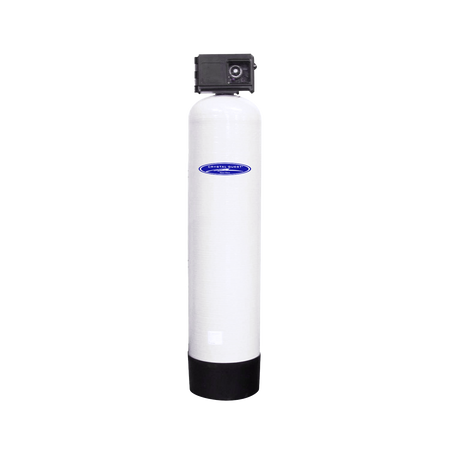

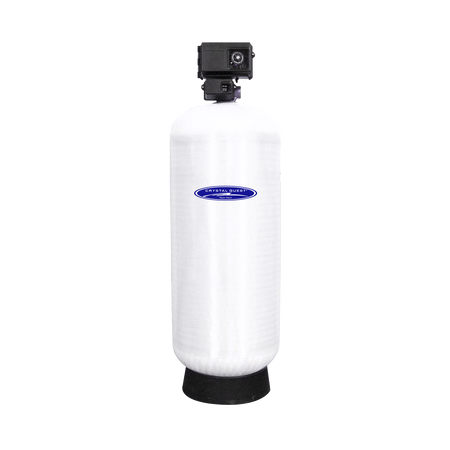

Arsenic Removal Water Filtration System

Name: Arsenic Removal Water Filtration System
Brand: Crystal Quest
SKU: CQE-CO-02067
Price: 4659.99 USD
Availability: InStock

Overview

The Crystal Quest Arsenic Removal Water Filtration System is a commercial and industrial system that treats water in fiberglass mineral tanks filled with Eagle Arsenic Oxide media. It comes in nine service flow rates from 15 to 390 GPM, with an automatic control valve on every size and manual valve options from 15 to 75 GPM.

Features

Timer Control Valves
Heavy duty composite fiberglass tanks
High Flow Distributor
All brass, motor driven control valve with fully adjustable backwash cycles
Self-adjusting backwash controller
Flow controller to limit backwash flow
Engineered for commercial & industrial use

Benefits

Reduced water consumption
Engineered for commercial & industrial use

Add-Ons*

Metered Control Valve
Backwash bypass
3200NT Controller
NXT Upgrade Controller
Duplex parallel, twin alternating, triplex (progressive)
Optional skid mounting for tanks

*If you are interested in our available add-ons, please call to have them added to your system.

Compatible Valves:

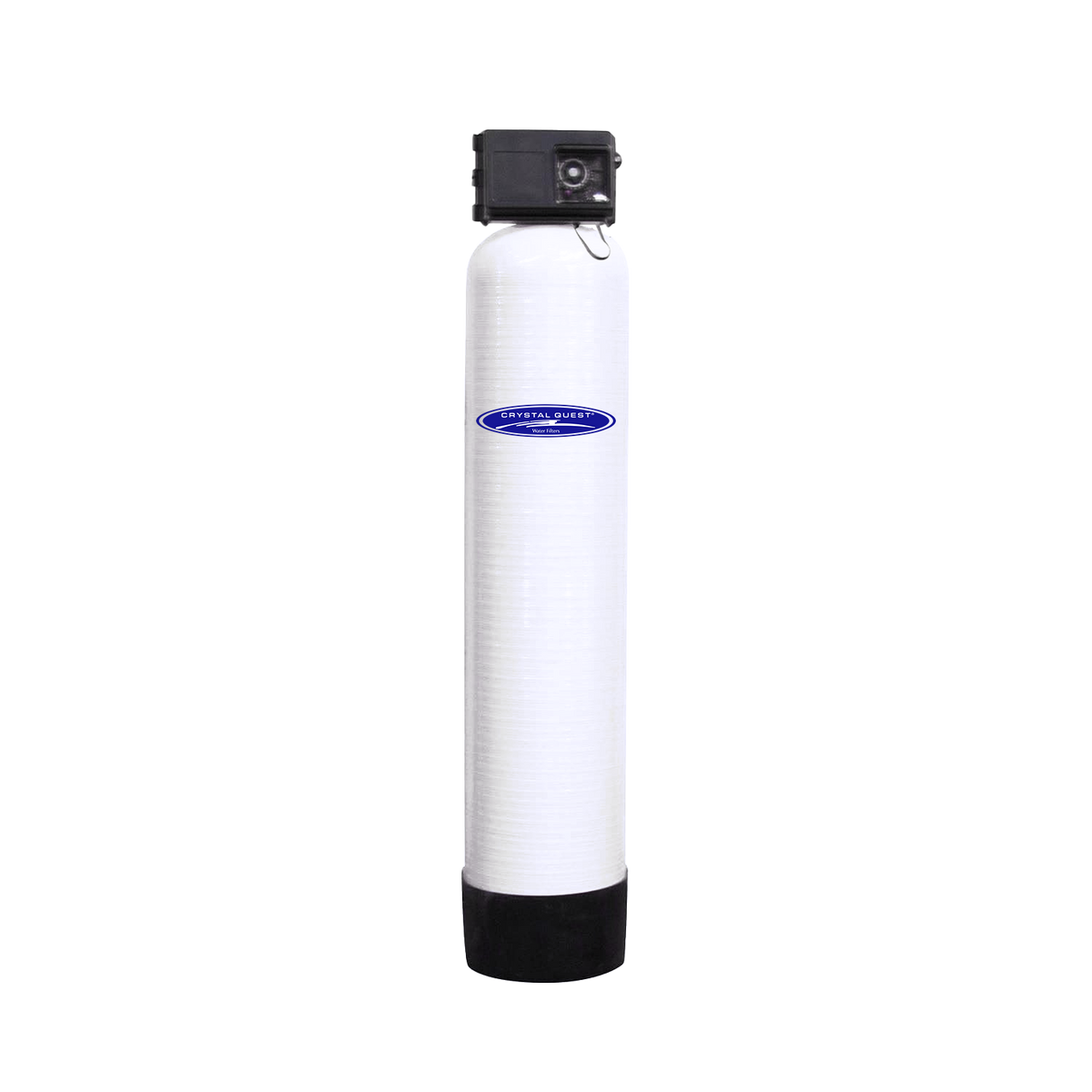

GPM:15

2510 Automatic Control Head

Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
3/5” control valve
Standard 1.9" distributor pilot
high service flow rate of 19 GPM
backwash capacity of 17 GPM
valves use all brass material
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

2510 Automatic Control Head

Features:

Electromechanical Timer valves
3/5” control valve
Standard 1.9" distributor pilot
high service flow rate of 19 GPM
backwash capacity of 17 GPM
valves use all brass material
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:20 - 35

2850 Automatic Control Head

This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
1 1/2” control valve
Standard 1.9" distributor pilot
high service flow rate of 60 GPM
backwash capacity of 47 GPM
valves use all brass material
Fully adjustable 5-cycle control
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

2850 Automatic Control Head

This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.

Features:

Electromechanical Timer valves
1 1/2” control valve
Standard 1.9" distributor pilot
high service flow rate of 60 GPM
backwash capacity of 47 GPM
valves use all brass material
Fully adjustable 5-cycle control
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

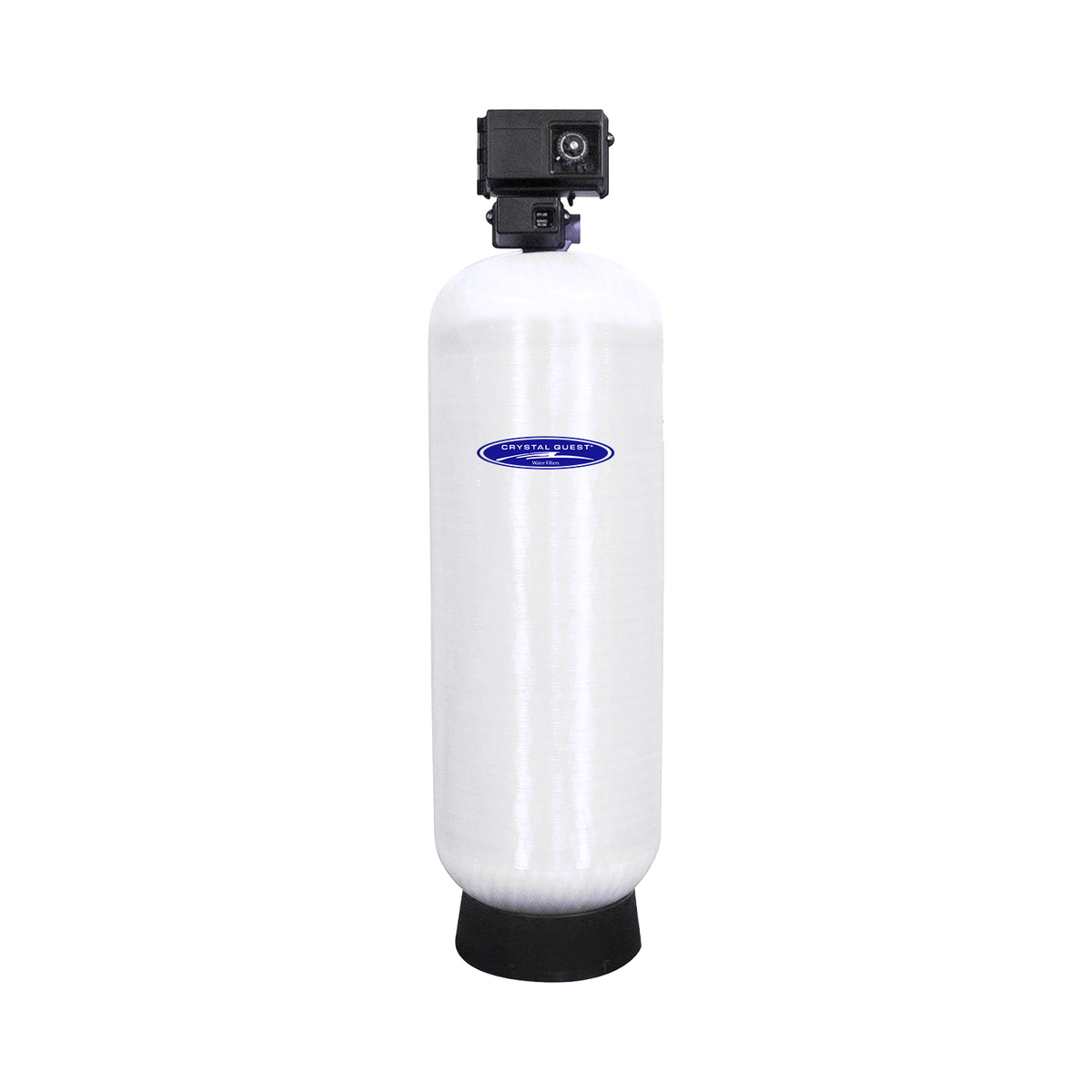

GPM:60 - 75

2900 Automatic Control Head

Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.

Features:

Electromechanical Timer valves
2” control valve
high service flow rate of 106 GPM
backwash capacity of 36 GPM
valves use all brass material
self adjusting backwash controller
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

2900 Automatic Control Head

Features:

Electromechanical Timer valves
2” control valve
high service flow rate of 106 GPM
backwash capacity of 36 GPM
valves use all brass material
self adjusting backwash controller
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
XT Display Controller
Meter Valves

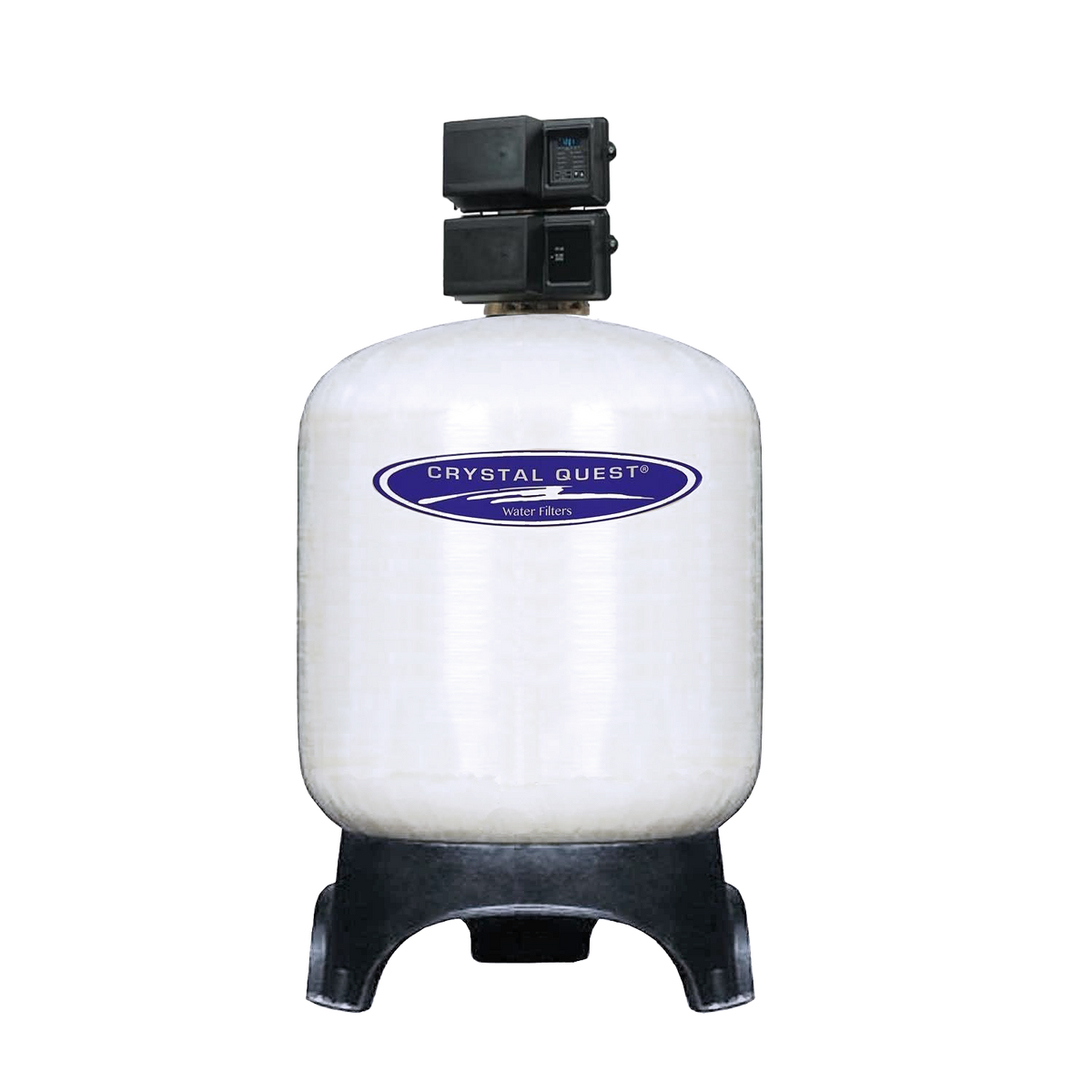

GPM:200 - 390

3900 Control Head

This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:15 - 75

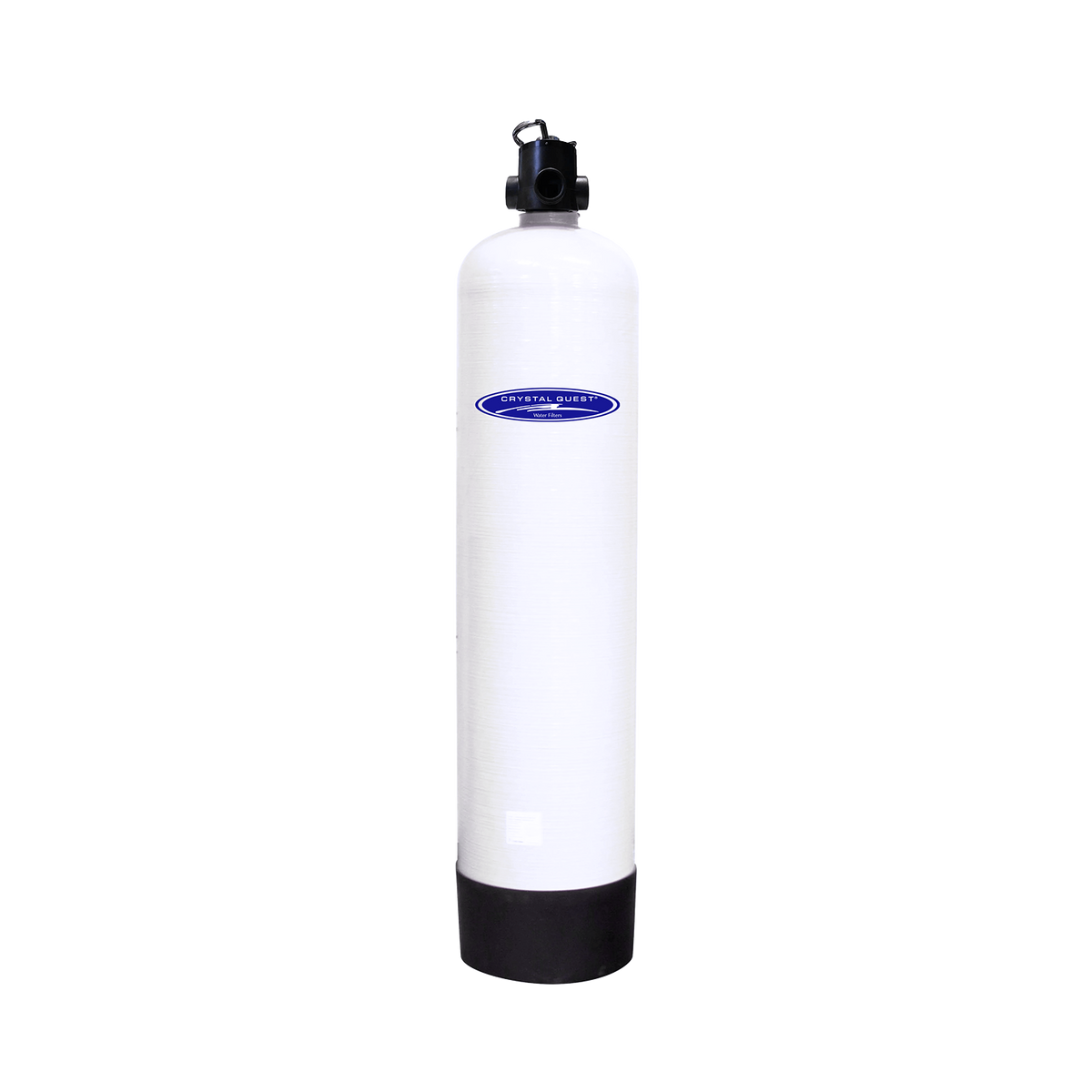

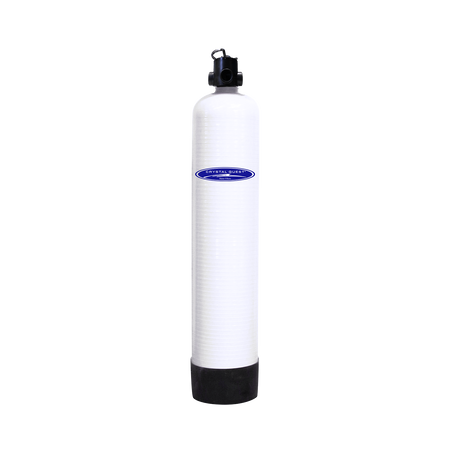

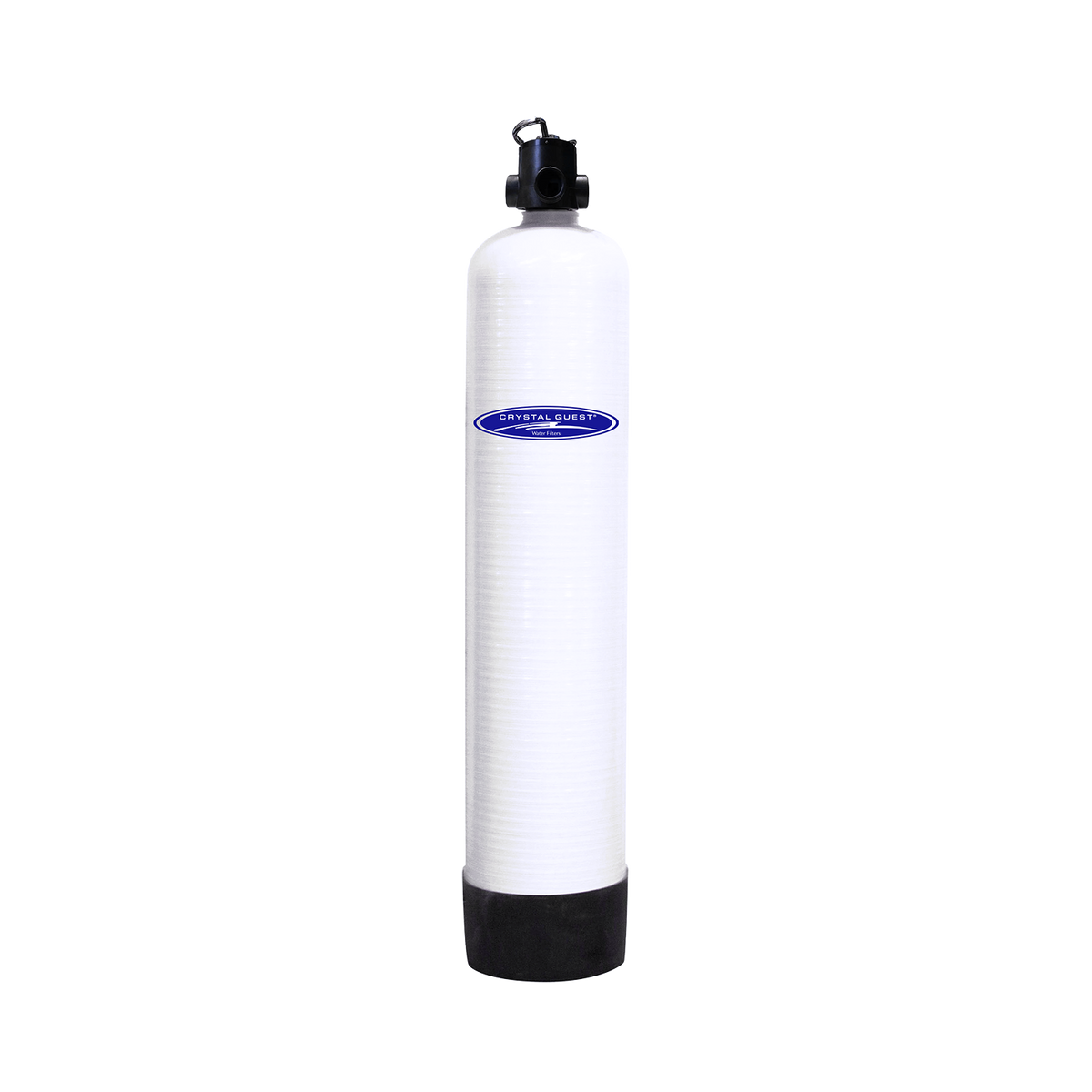

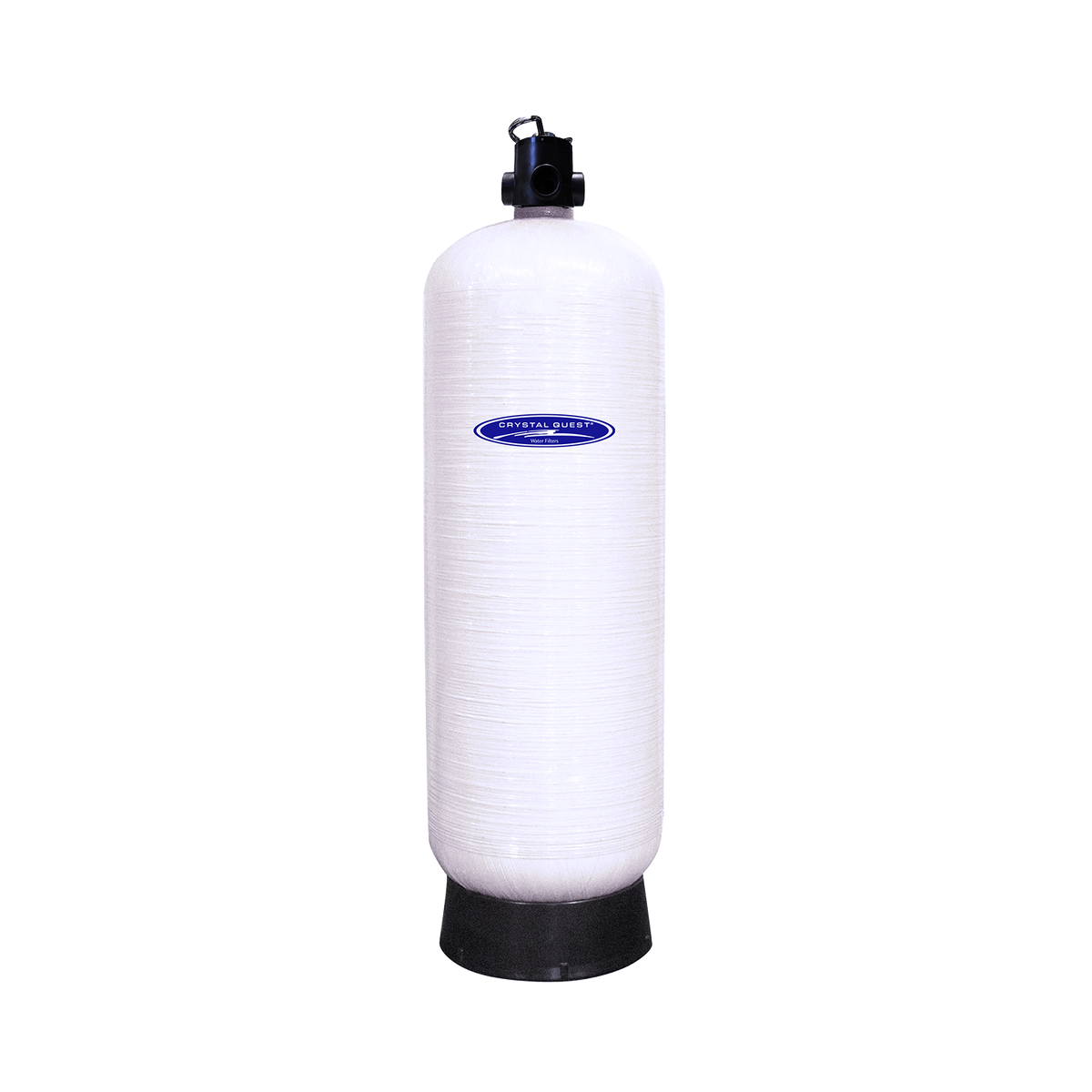

Manual Backwash Control

Features:

easy operation
Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain, 1.05" OD Riser, 2.5" 8-NPSM Connection
Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection

Manual Backwash Control

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

GPM:15 - 75

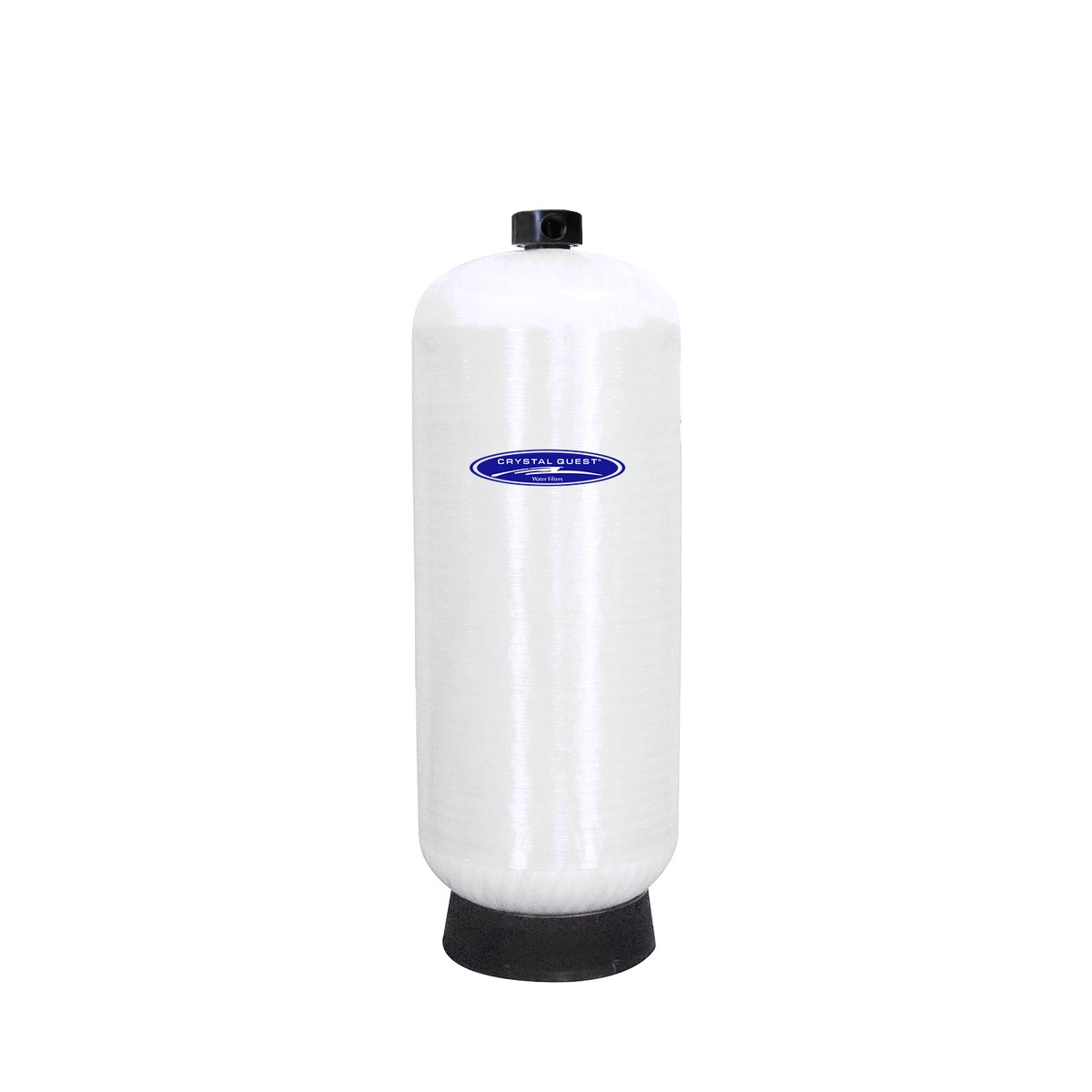

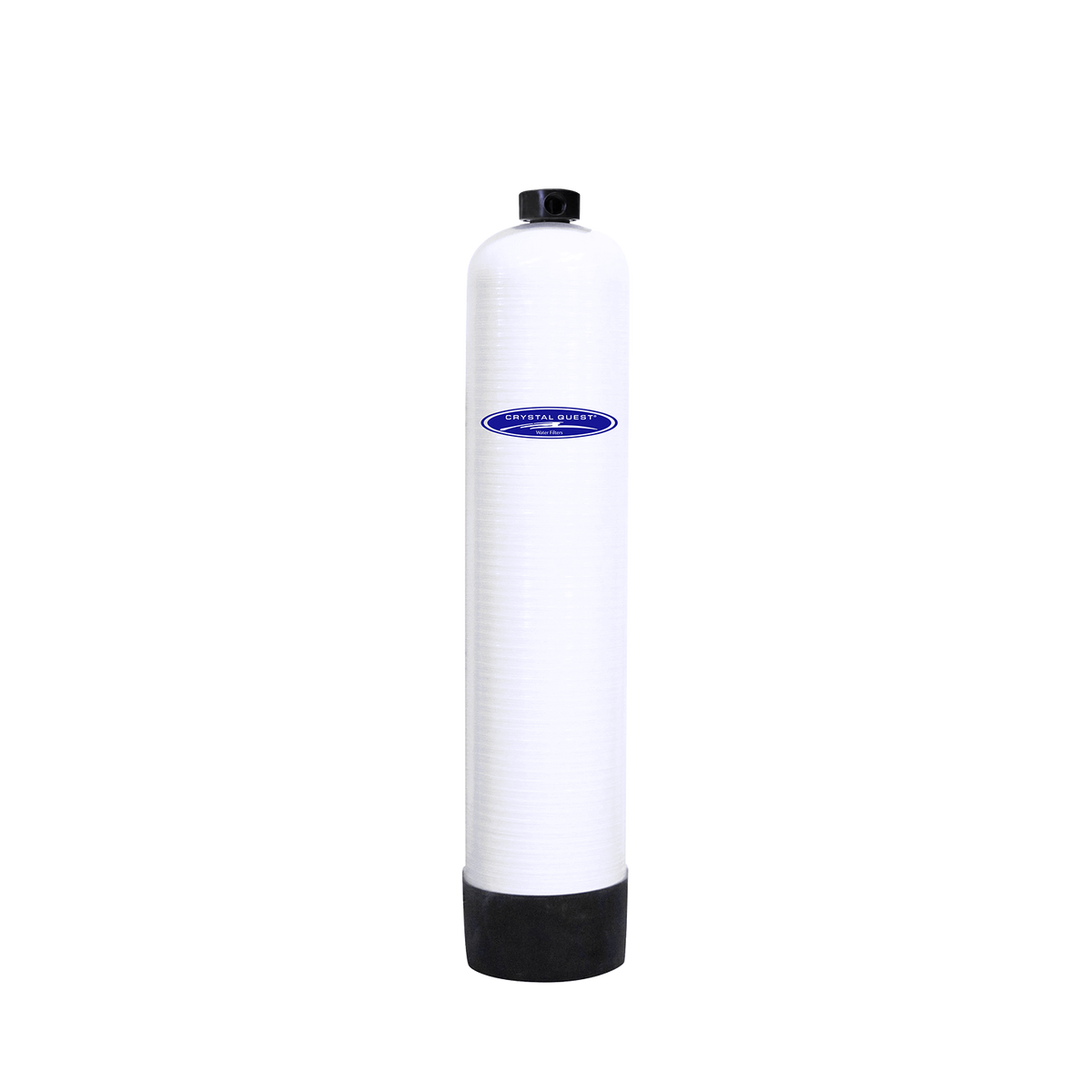

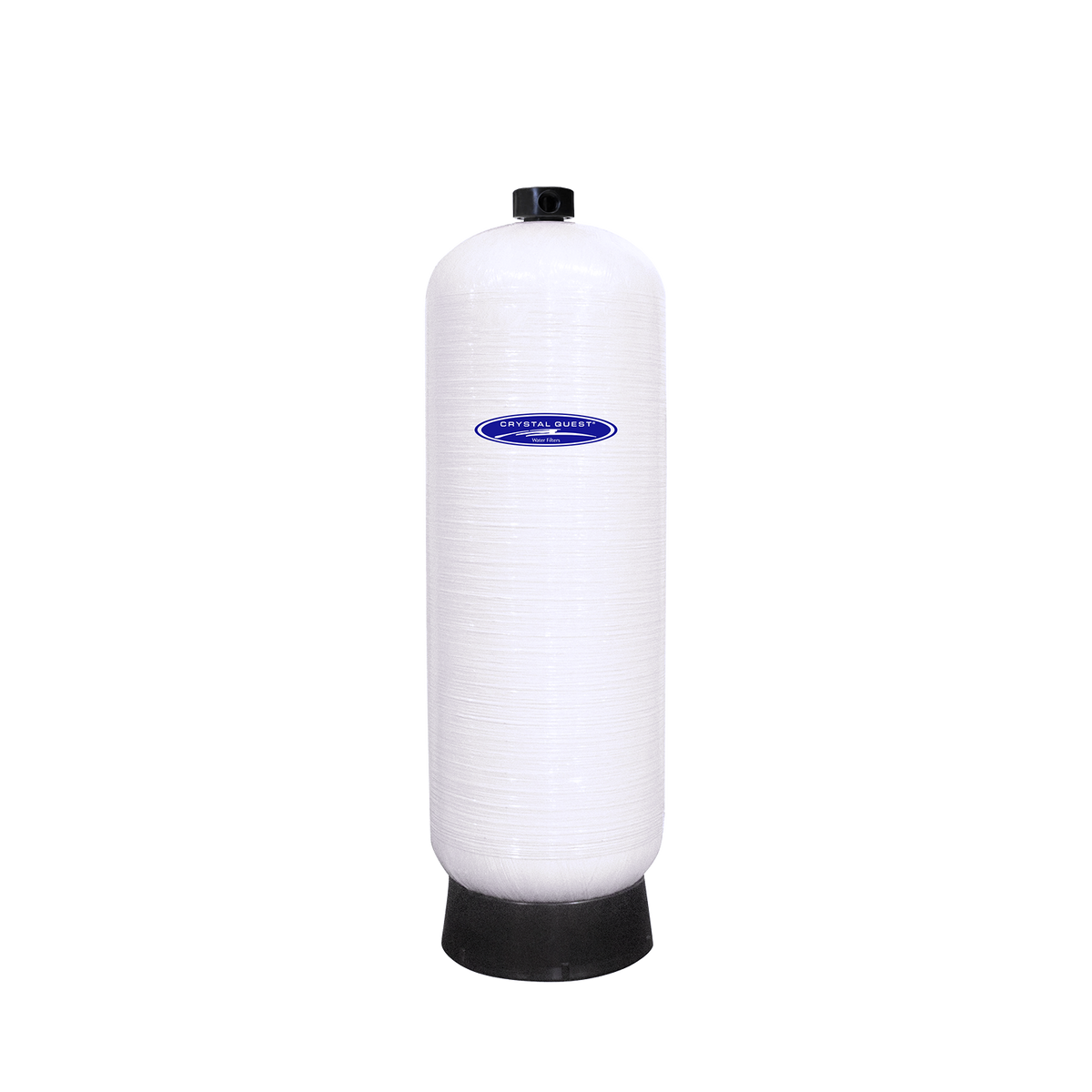

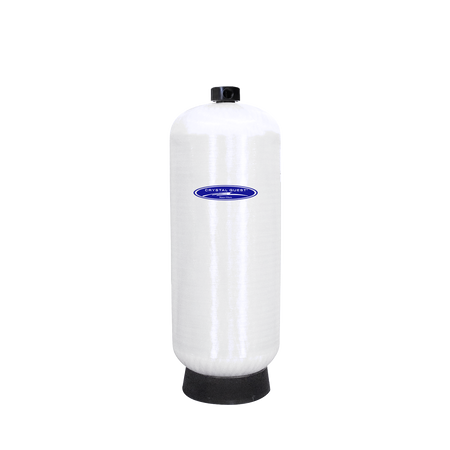

Manual Upflow Head

Features:

No electricity and no back wash
easy operation
can be either up or down flow simply by plumbing it backwards
Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)

3900 Automatic Control Head

Features:

NXT Display Controller
3" BSP female connections and 6" tank adaptersr
valves use all brass material
Supports both downflow (DF) and upflow (UF) regeneration
engineered for commercial & industrial use

Add-Ons:

NXT Display Controller
Meter Valves

Specification	CQE-CO-02067	CQE-CO-02068	CQE-CO-02069	CQE-CO-02070	CQE-CO-02071	CQE-CO-02072	CQE-CO-02073	CQE-CO-02074	CQE-CO-03200
Service Flow Rate GPM	15	20	35	60	75	185	200	245	390
Peak Flow GPM	22	41	60	95	140	250	270	280	450
Backwash Flow GPM	5	7	12	15	25	35	50	65	75
Pipe Size	1"	1.5"	1.5"	2"	2"	2" / 3"	3"	3"	3"
Electronic Control Valve	2510	2850	2850	2900	2900	3150 / 3900	3900	3900	3900
Eagle Arsenic Oxide	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³	60 ft³
PSI Range	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60
Mineral Tank Size (in.)	14" x 65"	16" x 65"	21" x 62"	24" x 72"	30" x 72"	36" x 72"	42" x 72"	48" x 72"	63" x 83"
Space Required (in.) (D x H)	16" x 75"	18" x 75"	23" x 84"	24" x 95"	32" x 95"	40" x 192"	46" x 192"	52" x 192"	67" x 203"
Quartz (lbs.)	30	40	70	100	150	200	300	400	600

Filtration Media Information
Product Data Sheet	Safety Data Sheet
Eagle Arsenic Oxide	Eagle Arsenic Oxide Product Data Sheet	Eagle Arsenic Oxide Safety Data Sheet
ERA 6500 & 9500	ERA 6500 & 9500 Product Data Sheet	ERA 6500 & 9500 Safety Data Sheet
Ion Exchange	Ion Exchange Resin Product Data Sheet	Ion Exchange Resin Safety Data Sheet

Eagle Arsenic Oxide Product Data Sheet

Eagle Arsenic Oxide Safety Data Sheet

2510 Control Head Manua l

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual
